WORK ORDER · SAMPLE#0350

Gen IV LS2 (cable throttle) + GTO T56 → Nissan 350Z
Mounts, pan, headers, driveshaft
Sikky Stage 2 package		$3,863
Gen IV DBC CANbus Pro harness
Wiring Specialties, keeps tach + gauges		$1,395
T56 5.5″ relocation shifter
Sikky, GTO cup		$560
T56 clutch master cylinder kit
Sikky, for the GTO T56		$314
Fuel: 58 psi returnless$400–900
Cooling + steam vent$340–1,020
Key parts only$6.9k–8.1k

Sample shows key parts only. The full plan also covers clutch/flywheel, tune, hoses, fittings and more, so the real total is higher.

6 warnings
How it works

Five picks. One sheet.

Built for first-timers who don't know what they don't know, and for guys who've done it and just want the list.

Pick the combo

Chassis, engine (LS 4.8 through LT4 and L8T), transmission, factory-modified or standalone harness, and drive-by-wire or cable.

Get the parts list

Free: mounts, oil pan, headers, harness/ECU, fuel, cooling, accessory drive and driveline, with rough price ranges and a source on every line.

Unlock the Build Sheet

$24: the compatibility flags for your combo, step-by-step harness work, VATS and tune, fuel setup, and a first-start checklist you can print.

Pricing

The list is free. The know-how is $24.

Free parts list
$0
  • Mounts, oil pan and headers for your chassis
  • Harness/ECU, fuel, cooling, accessory drive, driveshaft
  • Rough price range per line, plus a total
  • Part numbers only where the vendor shows them
  • Source link on every line
Build my free list
No made-up part numbers

Every line shows its receipts.

Each fact links to where it came from: Holley, Summit, Speedway, Dirty Dingo, Sikky, Novak, PSI, LS1Tech and others. Each also carries a confidence tag. Anything we're not sure of is stamped for a hands-on review before it's treated as gospel.

Dirty Dingo adjustable LS conversion mounts, 2WD S10
$130–145listed
Clamshell frame mounts + Grade 8 hardware, 1.5 in of adjustment. Low-mount alternators won't clear the S10 steering box.
DD-LS-S2highdirtydingo.com ↗
Which 5.3s have AFM
—
lowNeeds Kolby checkhpacademy.com ↗
Chassis covered

20 platforms to start

The Builder

Every sheet is built by someone who's turned the wrenches.

350Z on the lift: stock drivetrain out, LS and transmission going in
Out with the stock drivetrain, in with the LS. The 350Z on the lift.

Kolby, KMC Auto

Kolby is the builder behind KMC Auto. He started out working for free at a friend's shop for years, then spent a few more years learning for little pay. He's now been a jet-engine mechanic for 11 years, the last 3 as a lead.

His builds so far:

  • First LS swap: white Nissan 350Z: LS2 and T56, both pulled from an '06 Pontiac GTO
  • Second LS swap: black Nissan 350Z: after the white Z was totaled, its LS was rebuilt fully forged and went into this car
    Walk-around of the black Z, idling.
    • Lower-pressure, lower-temp fluid lines: Aeroquip AQP socketless hose and AN hose ends (e.g. FBL1512 straight, FBL1532 90°, FCN0620 -6 AN hose). Good for up to 300°F and 250 psi, per the builder. Builder tip: simple and works great; use Aeroquip's matching AQP hose with AQP ends.
    • Fully adjustable suspension from Z1 Motorsports
      Z1 Motorsports adjustable suspension
      Adjustable rear suspension arms being installed
      Z1 Motorsports adjustable rear arms going in.

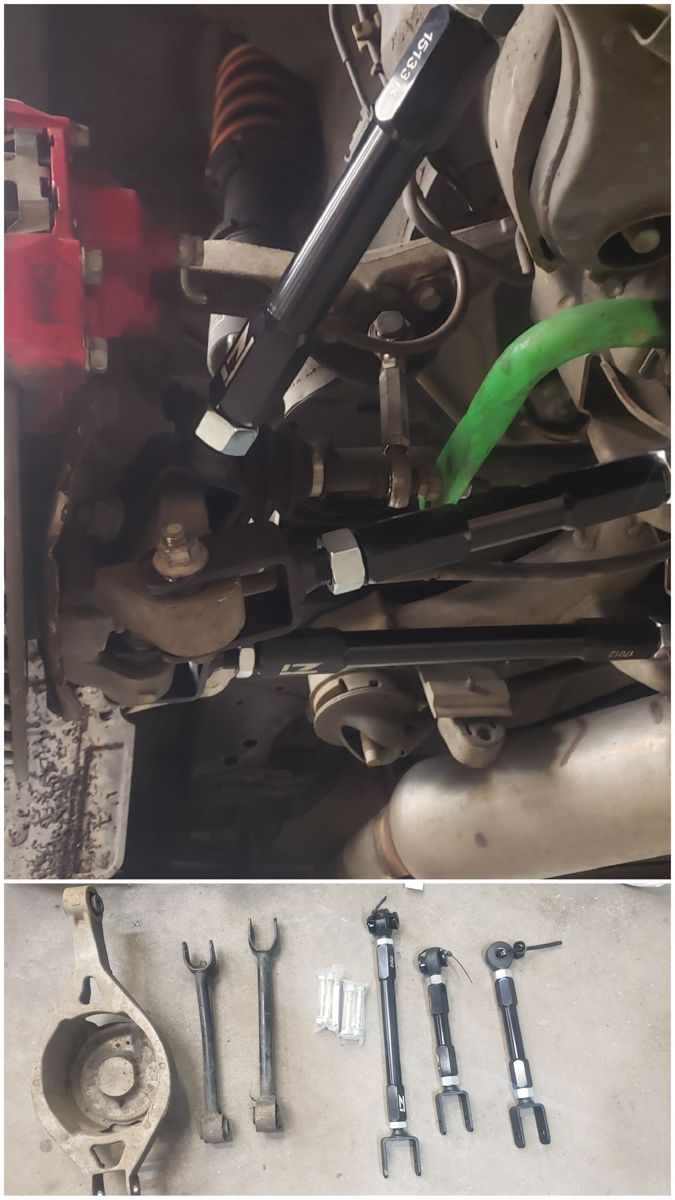

      Z1 adjustable rear arms installed, and stock arms laid out next to the Z1 arms
      Z1 adjustable rear arms installed, and stock arms vs. Z1 arms on the floor.

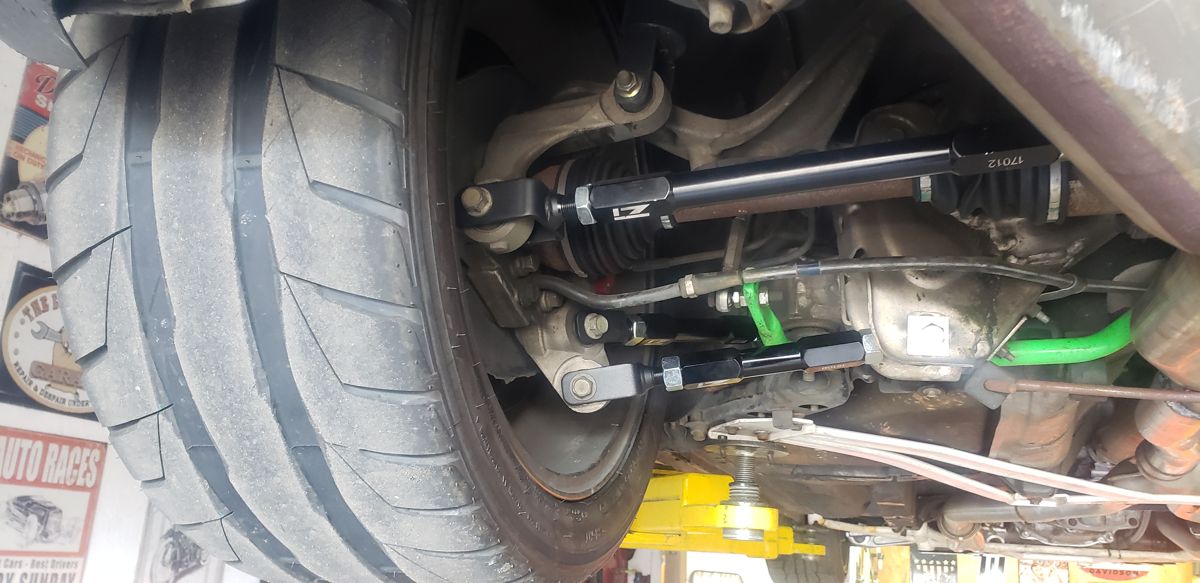

      Z1 adjustable rear arms installed on the car
      Z1 adjustable rear arms on the car.
    • Stance coilovers on all 4 corners

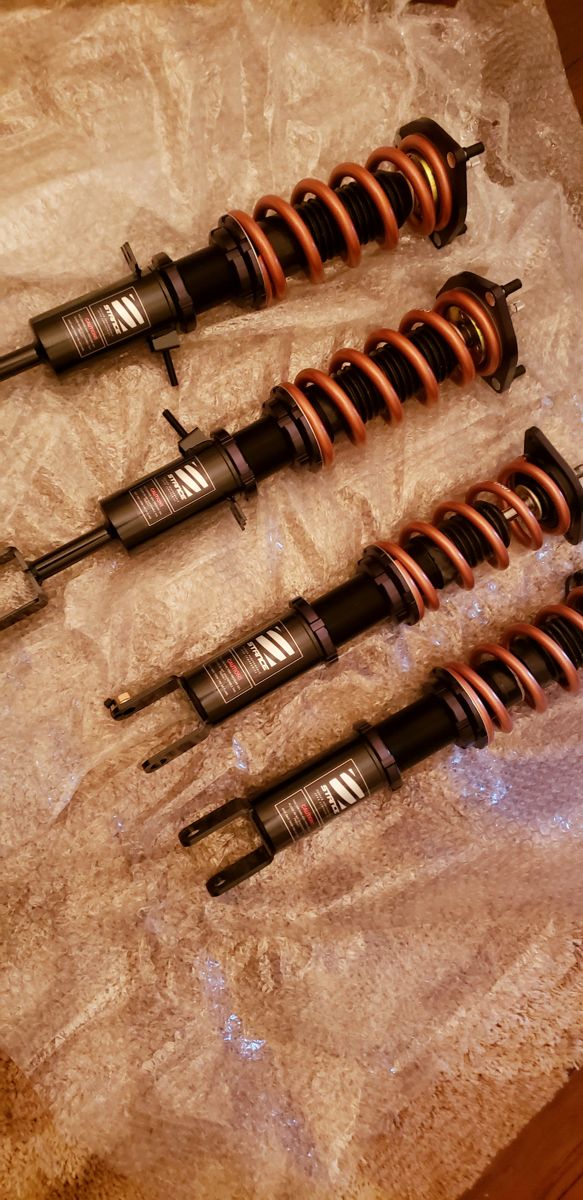

      Four Stance coilovers laid out on bubble wrap
      Stance coilovers out of the box
    • Akebono brakes from a newer 370Z, fitted with the Z1 Motorsports Akebono Front Brake Bracket Kit (350Z/G35)
      Builder's tip: "Be careful with your wheel setup on these brakes. Some wheels won't clear the Akebono calipers. I ordered longer wheel studs so I could run about a 10mm spacer and push the wheels out a little for better wheel-to-caliper clearance."
      Akebono brake setup

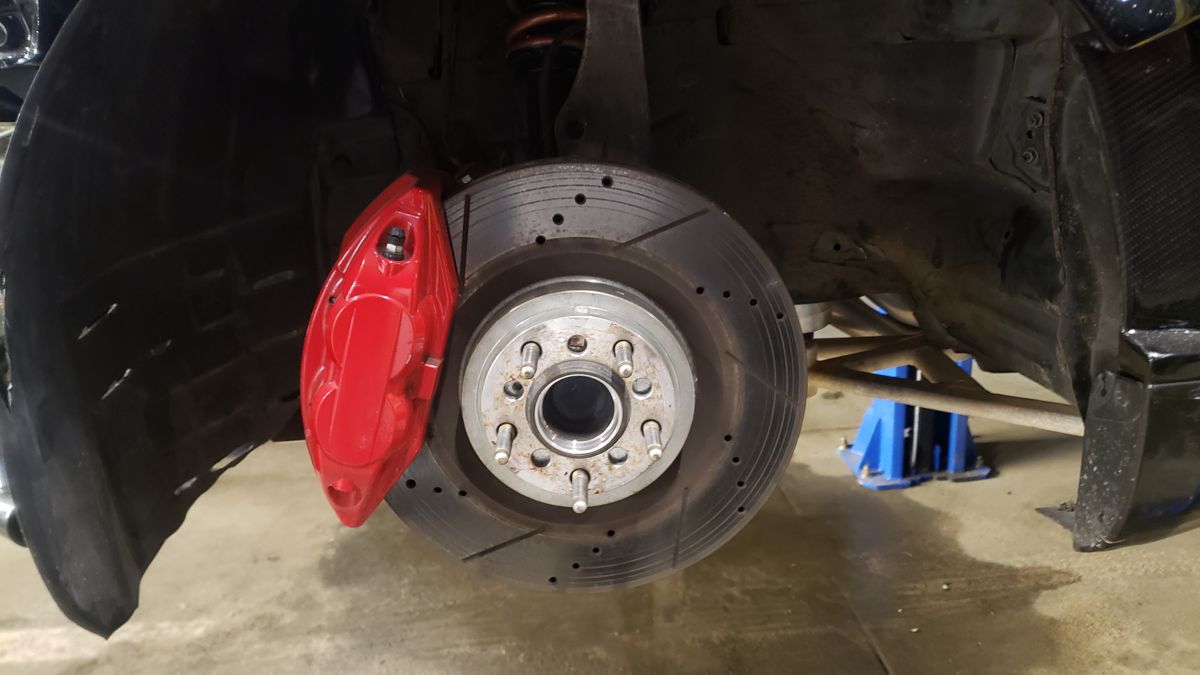

      Red caliper and rotor up front
      Big brake upgrade up front.

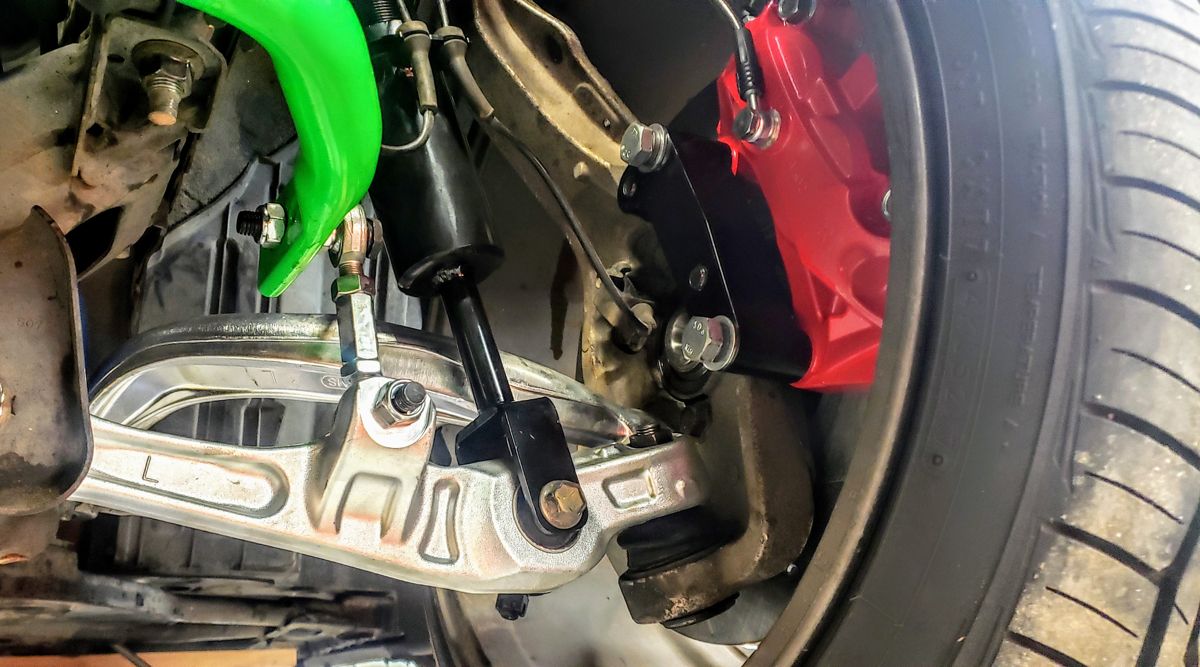

      Akebono caliper mounted on the Z1 bracket
      Akebono caliper on the Z1 bracket.

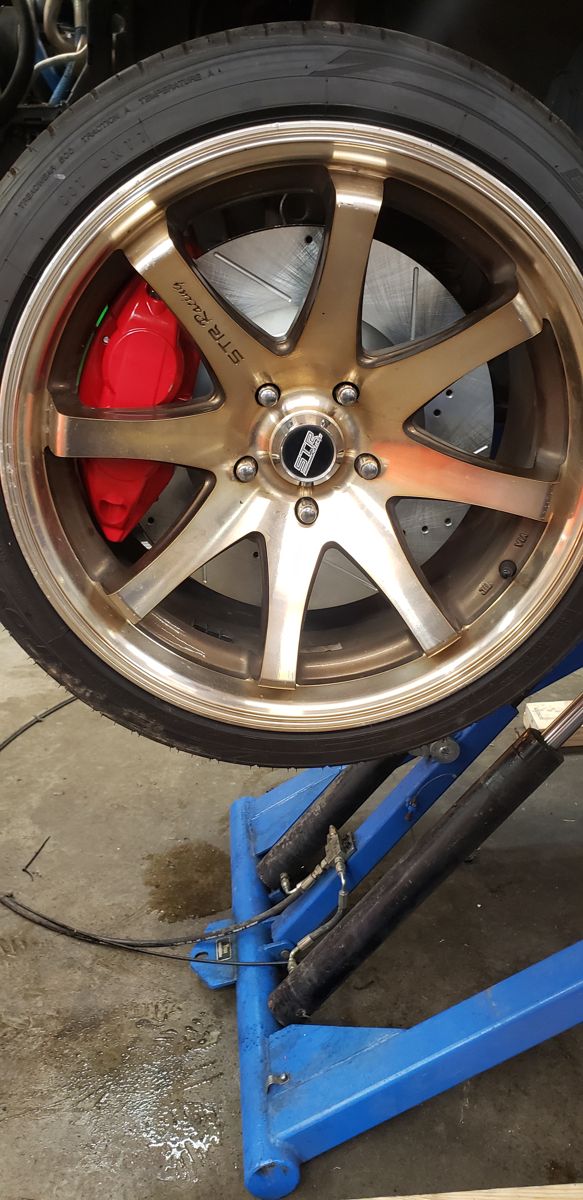

      Caliper visible behind the wheel spokes
      Clearance check: caliper behind the wheel spokes.

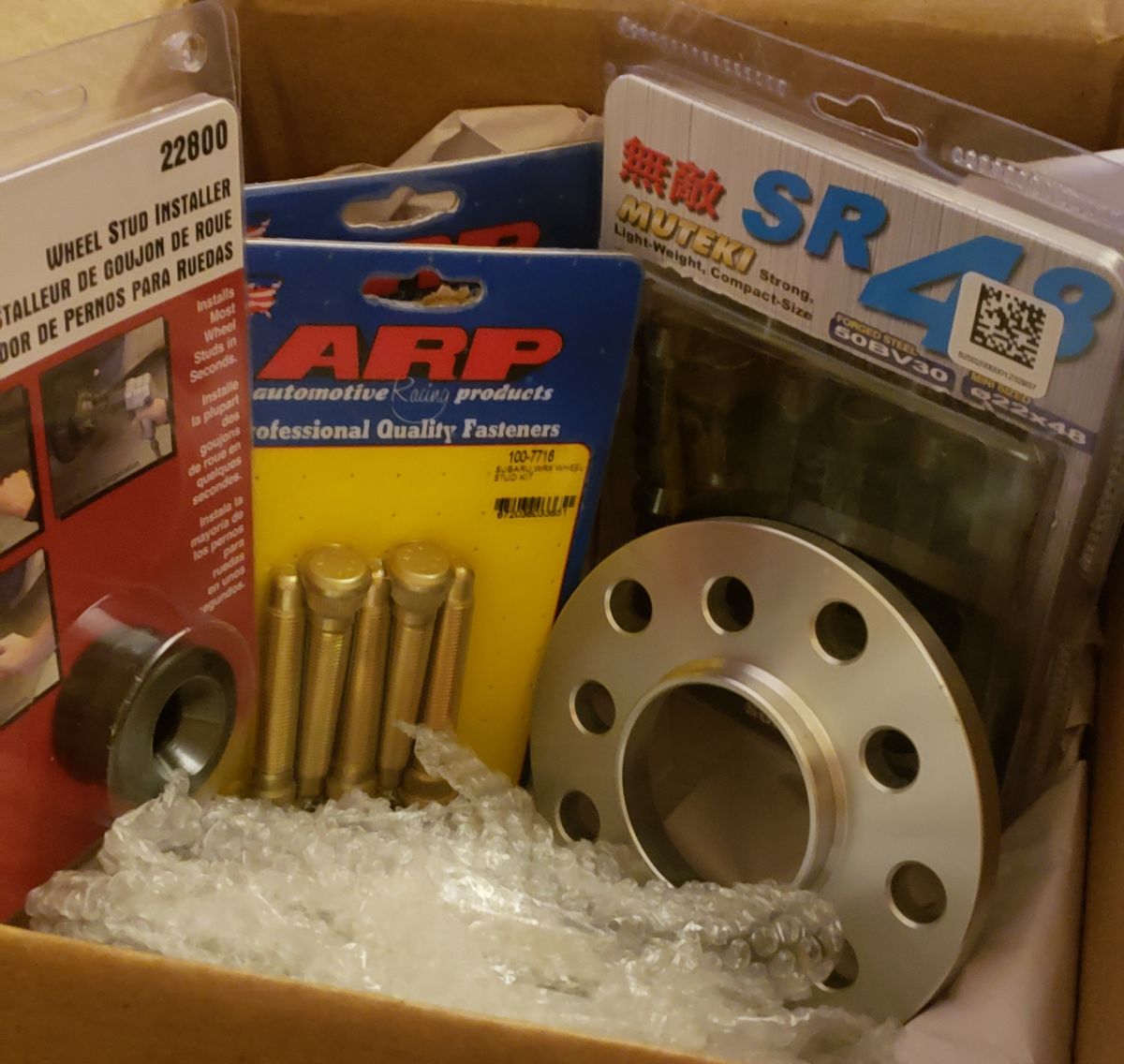

      ARP studs, about a 10mm wheel spacer and Muteki SR48 lug nuts
      Longer ARP studs, about a 10mm spacer, and Muteki SR48 lug nuts.

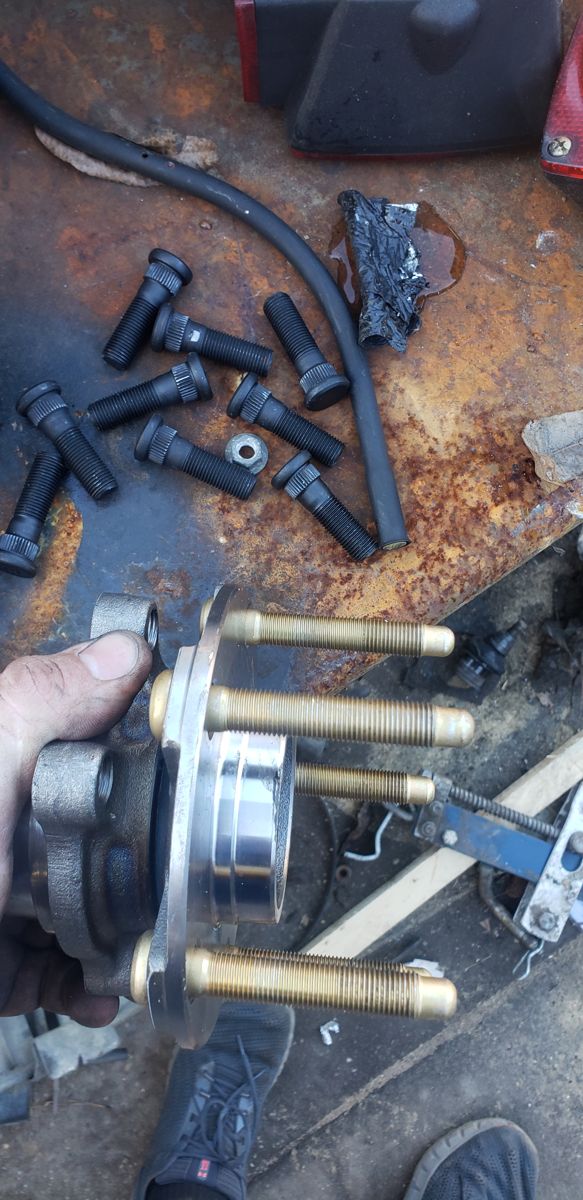

      Old studs removed, longer studs pressed into the hub
      Old studs out, longer studs in the hub.
      Stock base-model 350Z rotor held in front of the larger 370Z Akebono rotor
      Size check: stock base-model 350Z rotor in front of the 370Z Akebono rotor.

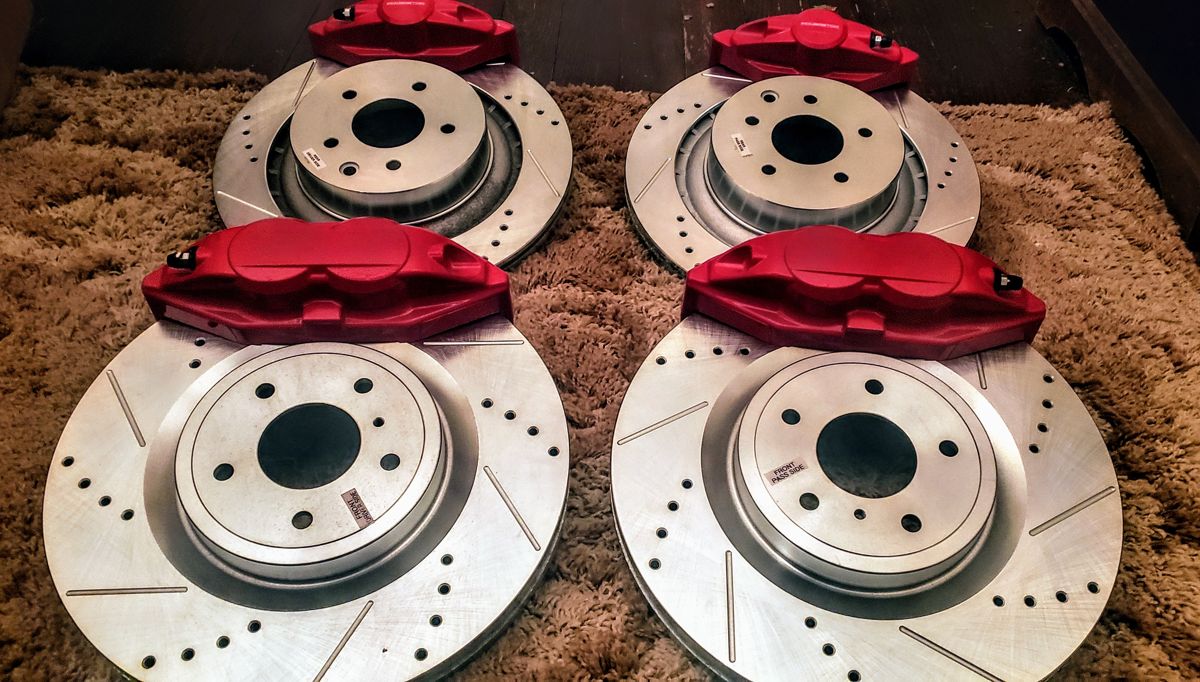

      Four red 370Z Akebono calipers with drilled and slotted rotors
      The 370Z Akebono calipers and drilled/slotted rotors before install
    • FAST 102 intake and Sikky intake tube
    • Setrab coolers
    • Granatelli Motor Sports spark plug wires.

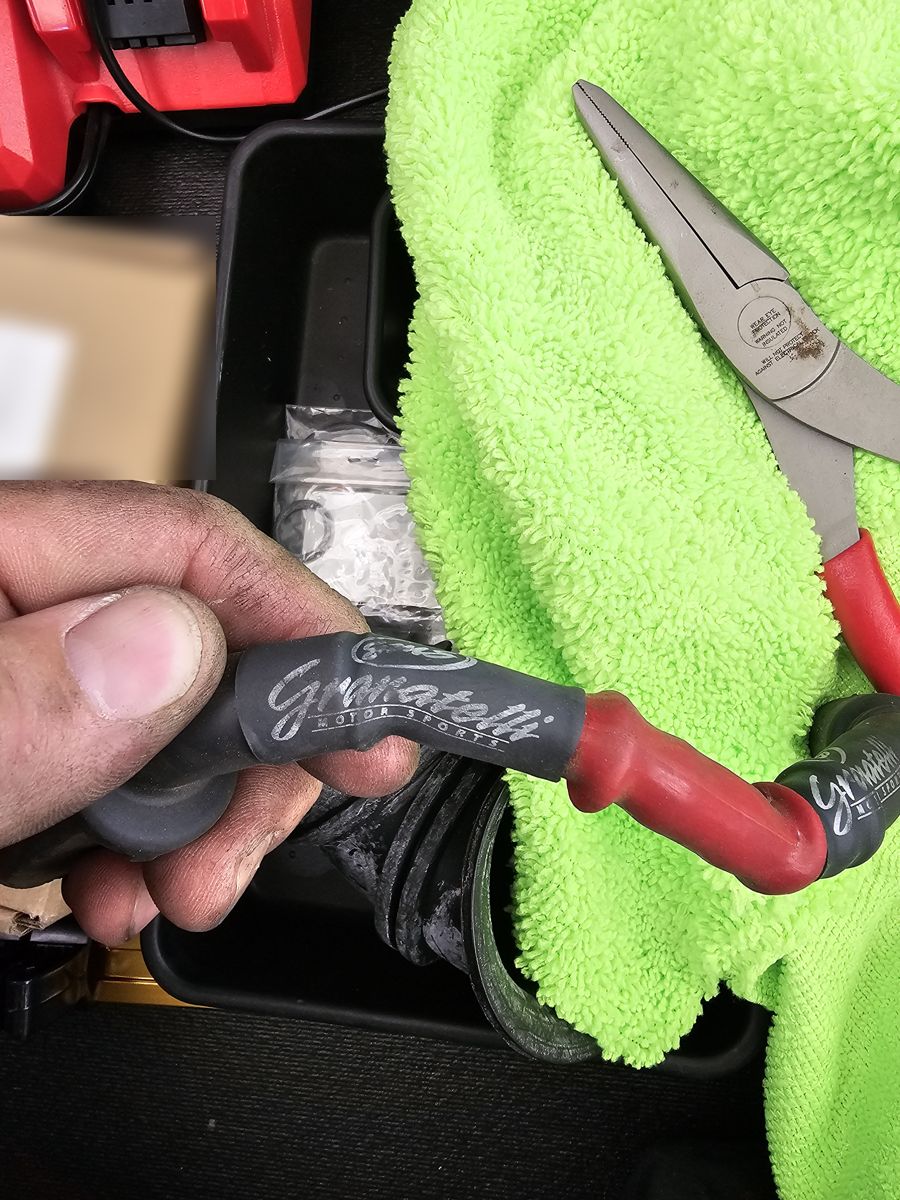

      Granatelli Motor Sports spark plug wire boots in hand
      Granatelli Motor Sports plug wires
    • MOMO steering wheel (suede, with red markers).

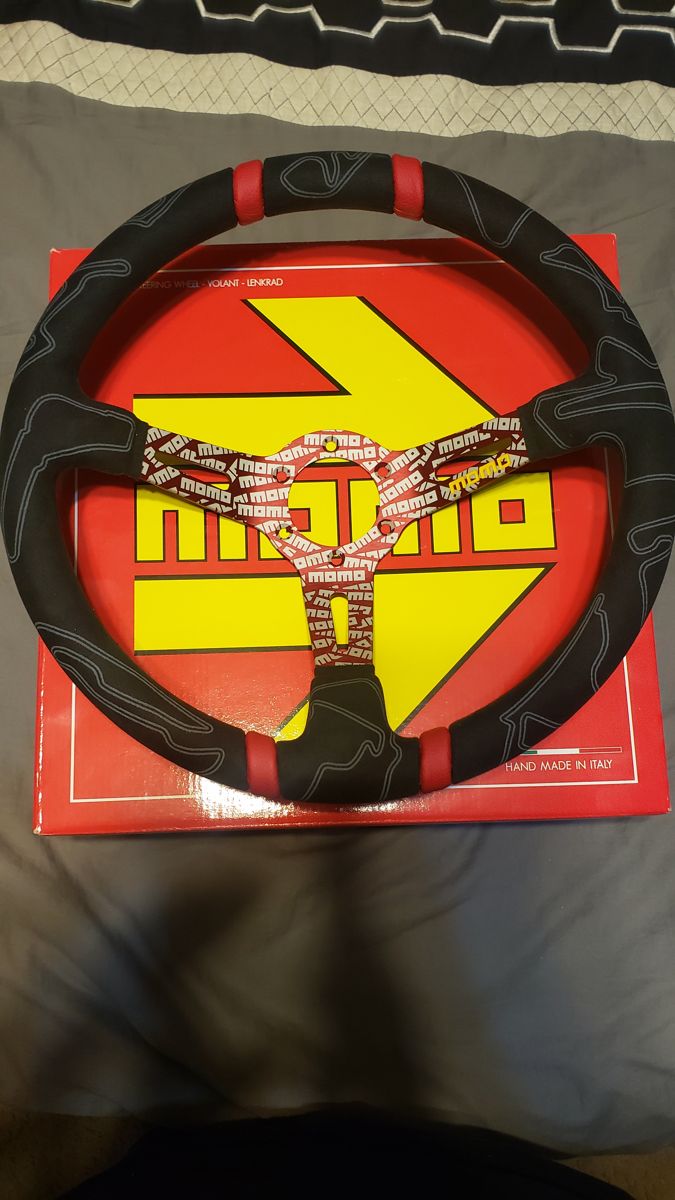

      Suede MOMO steering wheel with red markers on its box
      MOMO wheel out of the box

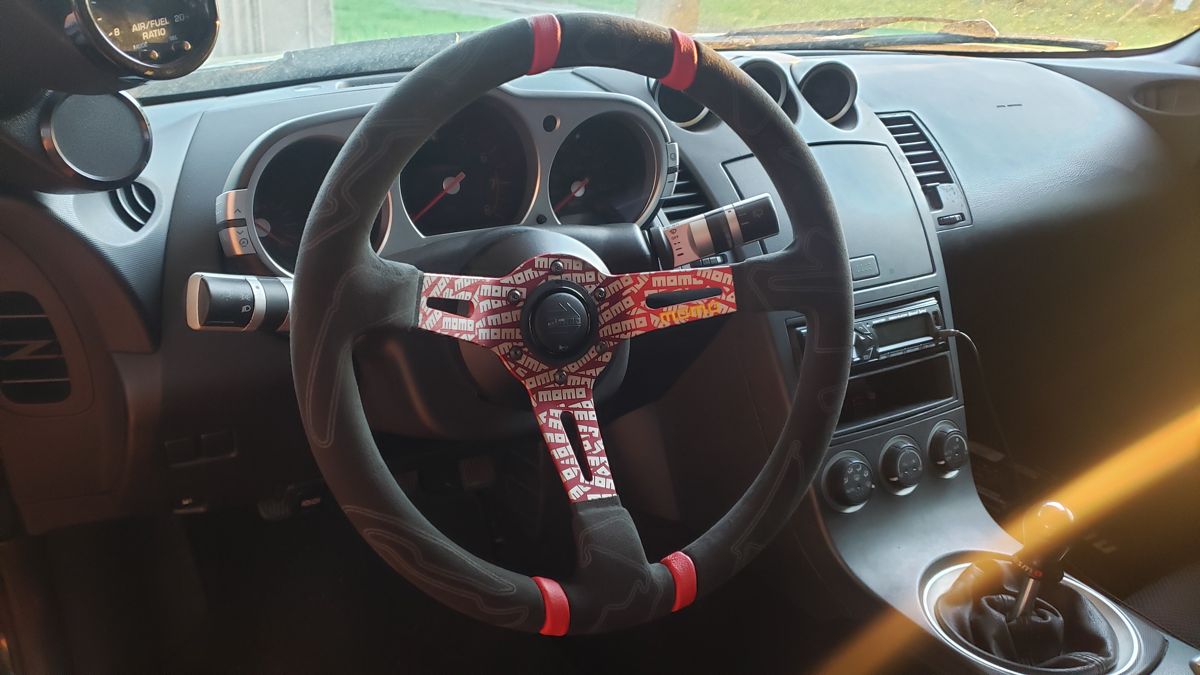

      Suede MOMO steering wheel installed in the black 350Z
      MOMO wheel installed in the black Z
    • Griffin aluminum radiator (aftermarket)

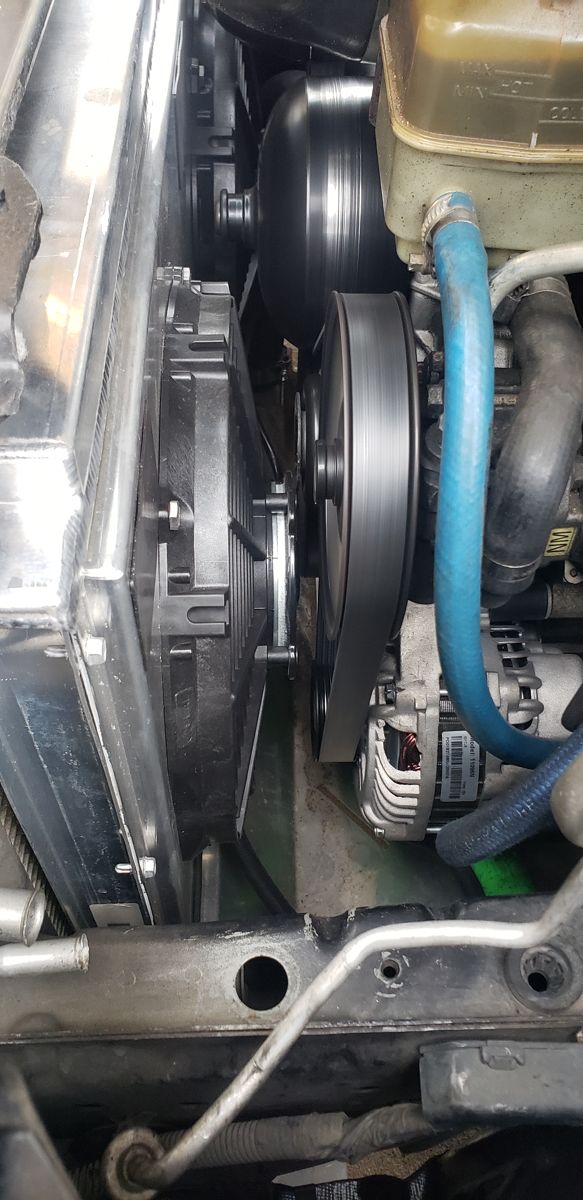

      Builder's note: "Clearance between the pulleys and the Griffin radiator is tight on my setup. The new Sikky kit pushes the engine back 2 inches, which helps."
      Engine pulleys and electric fan close to the Griffin aluminum radiator
      Pulley-to-radiator clearance with the Griffin radiator.
    • LOJ Conversions 350Z/G35 LS Swap Fuel System
    • Z1 Motorsports aluminum splash shield (Z Speed 350Z Performance Aluminum Undershroud)

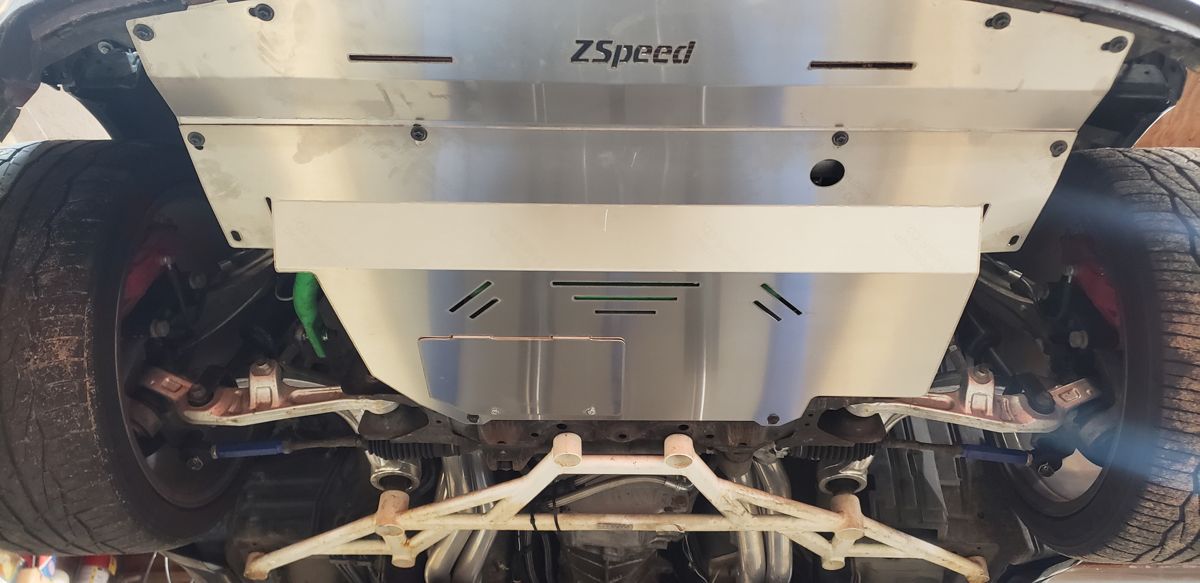

      ZSpeed aluminum splash shield under the front of the black 350Z, with the white aftermarket subframe brace below it
      Z1 aluminum splash shield, with the modified Ultra Racing subframe brace below it.
    • Carbon fiber hood and fenders from Fly1 Motorsports.
      Builder's note: fitment was poor out of the box and took extra work to get right.
      Carbon hood and fenders

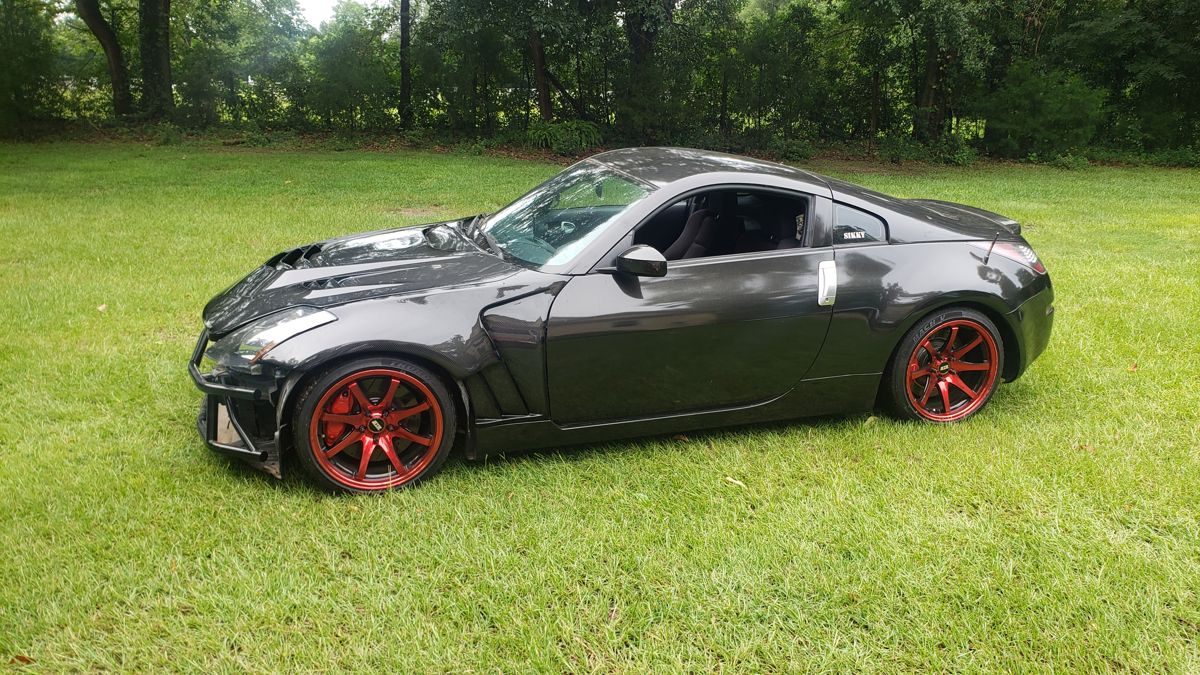

      Carbon hood and fenders on red wheels
      Carbon hood and fenders on red wheels

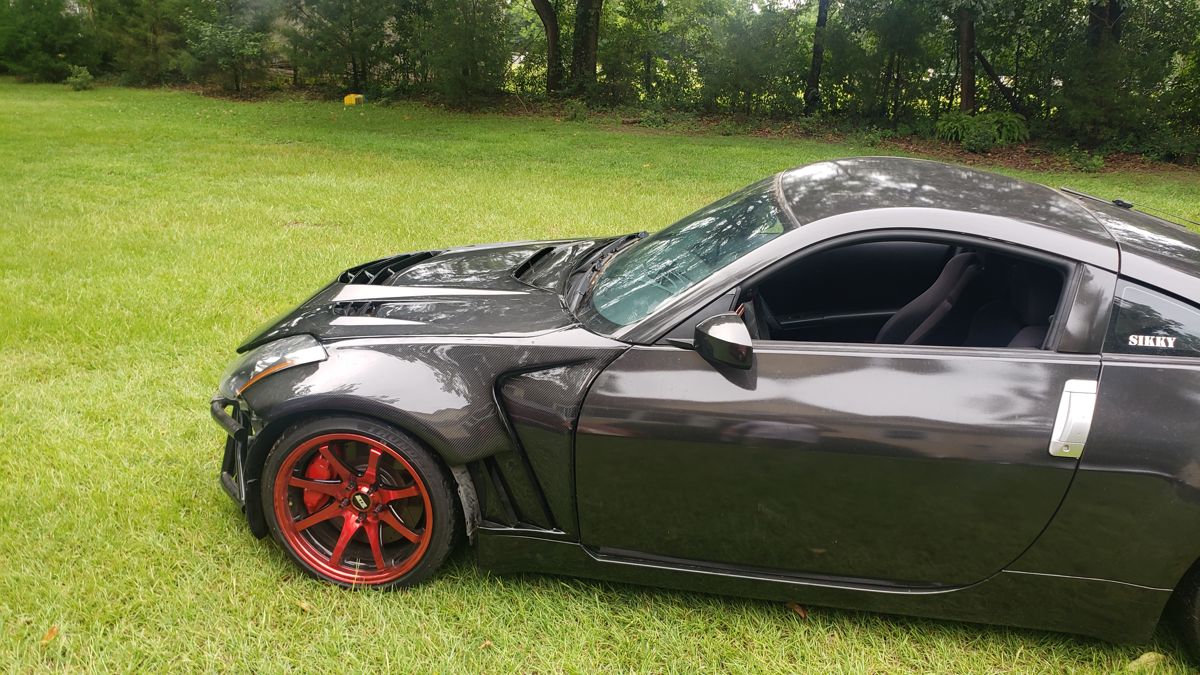

      Close-up of the carbon hood and fender
      Close-up of the carbon hood and fender

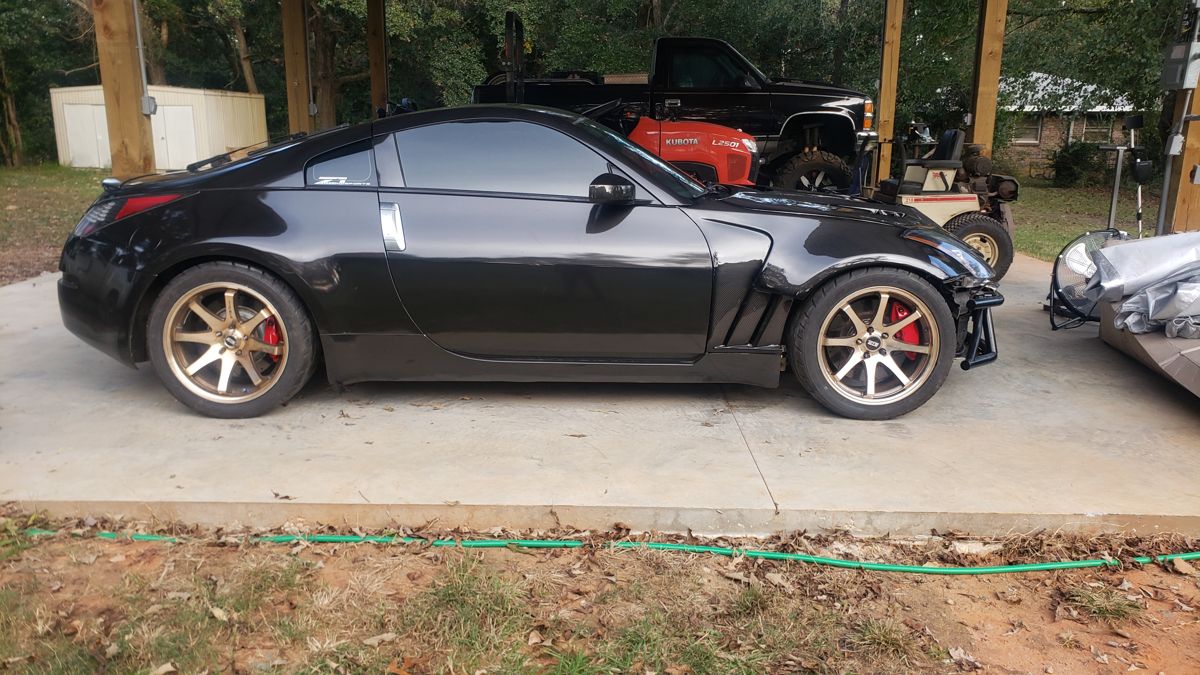

      On bronze wheels with the bash bar and red calipers
      On bronze wheels with the bash bar and red calipers

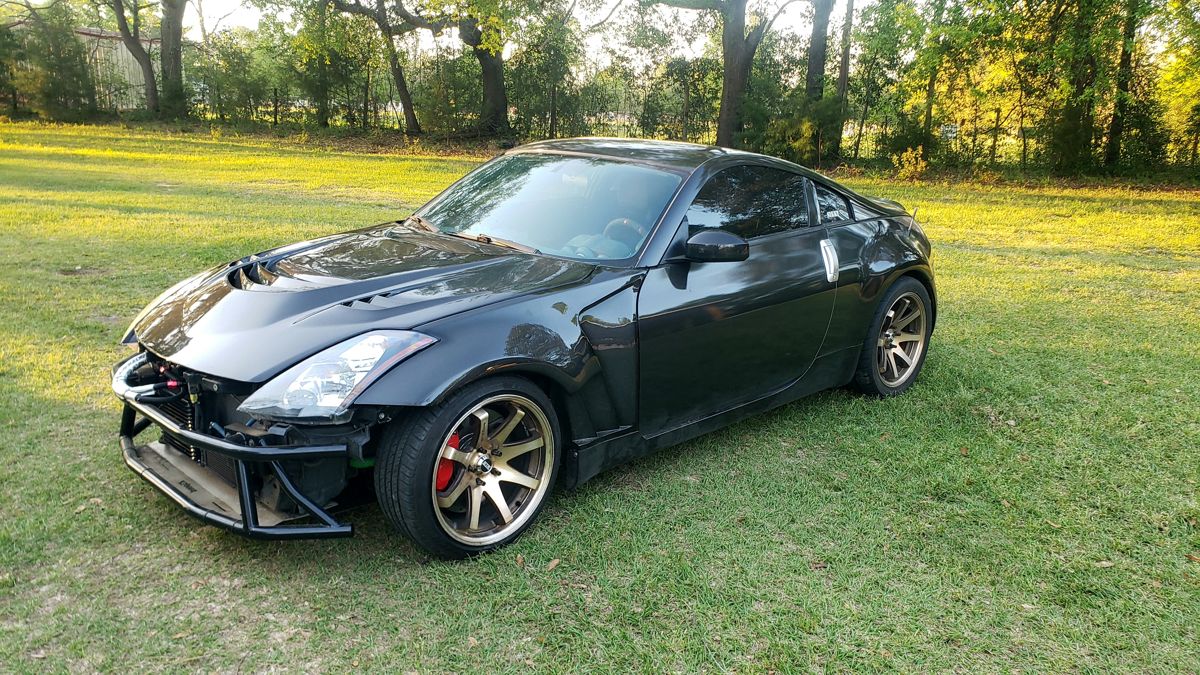

      Carbon hood with the bash bar, front three-quarter
      Carbon hood with the bash bar, front three-quarter

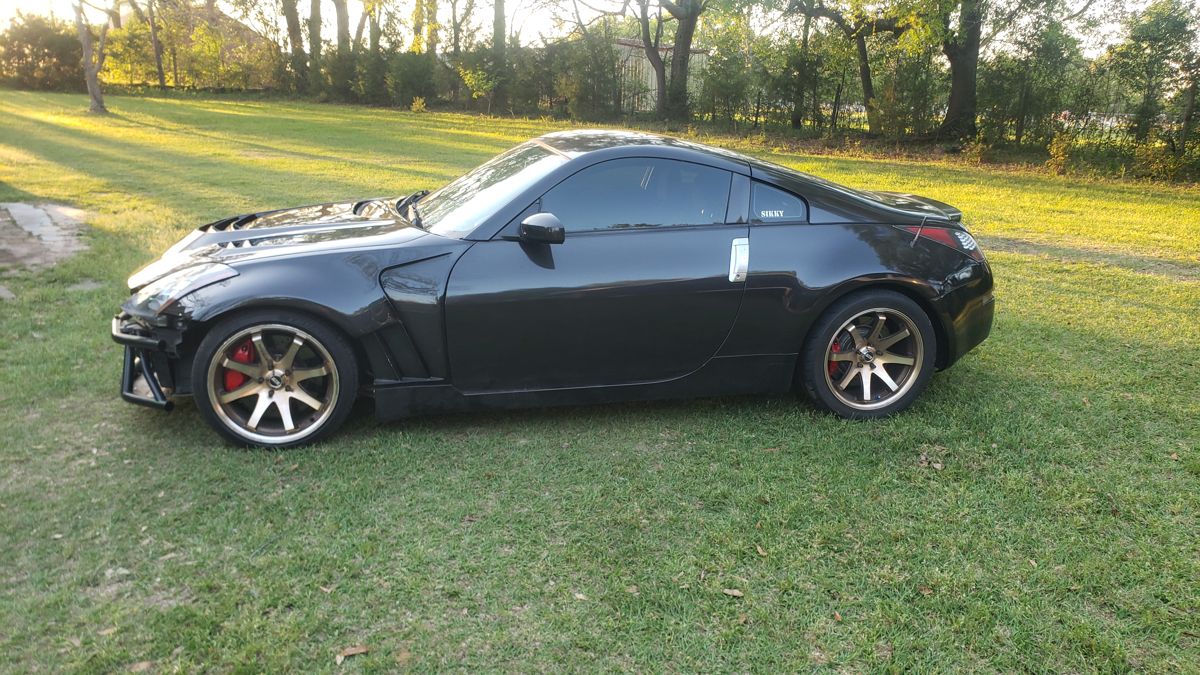

      Side profile on bronze wheels
      Side profile on bronze wheels
    • 3M black vinyl wrap.
    • 3M clear protective wrap over the carbon fiber hood and fenders.
    • Front bash bar (brand unknown), bought online from a builder in Texas.

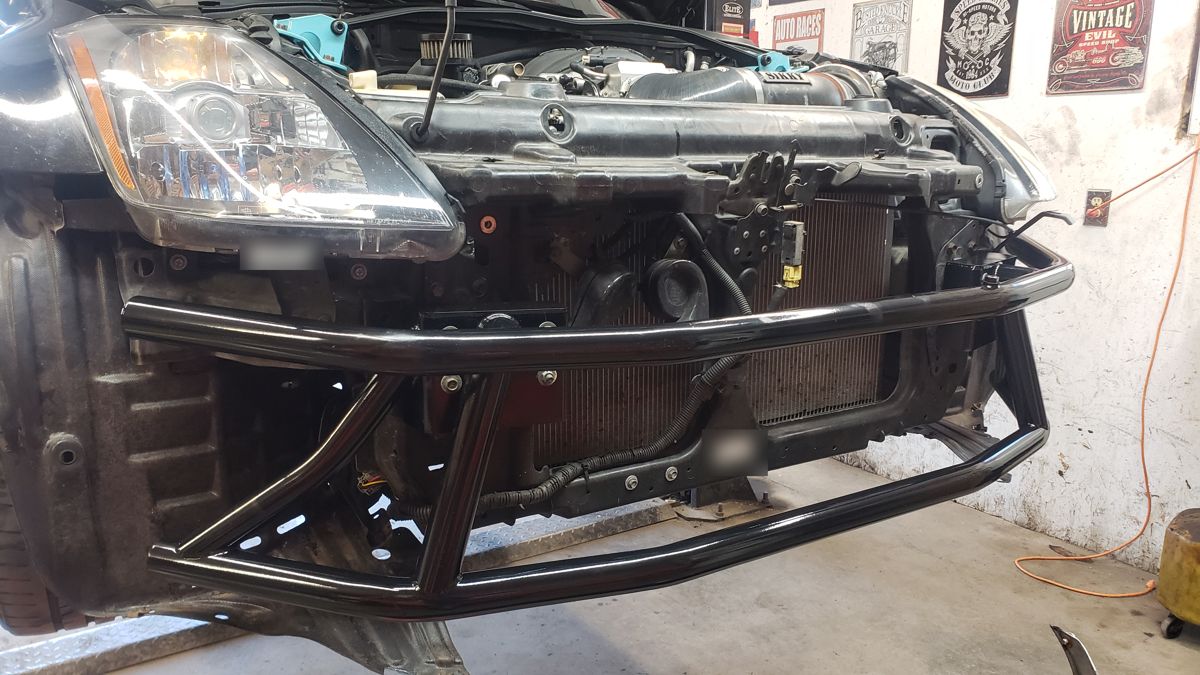

      Black front bash bar on the 350Z, side angle
      Front bash bar, side angle

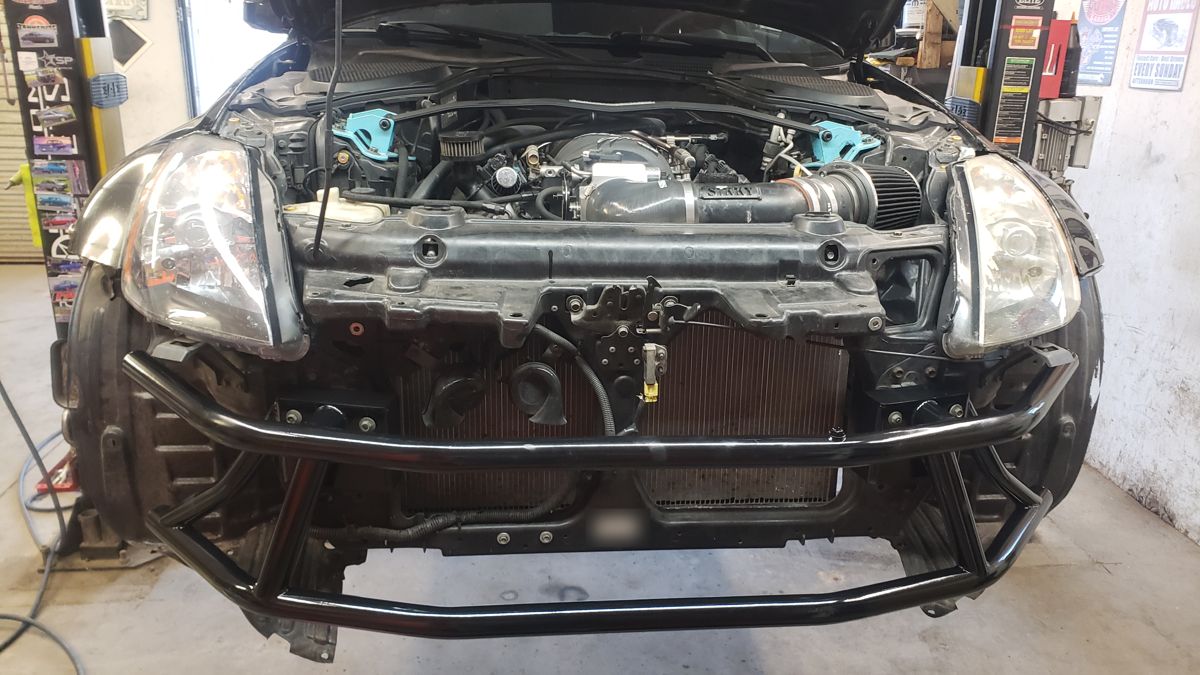

      Black front bash bar on the 350Z, head-on, with the Sikky intake visible
      Front bash bar, head-on, with the Sikky intake visible
    • Ultra Racing (UR) aftermarket front subframe brace (the white bar), modified to clear the Sikky headers.

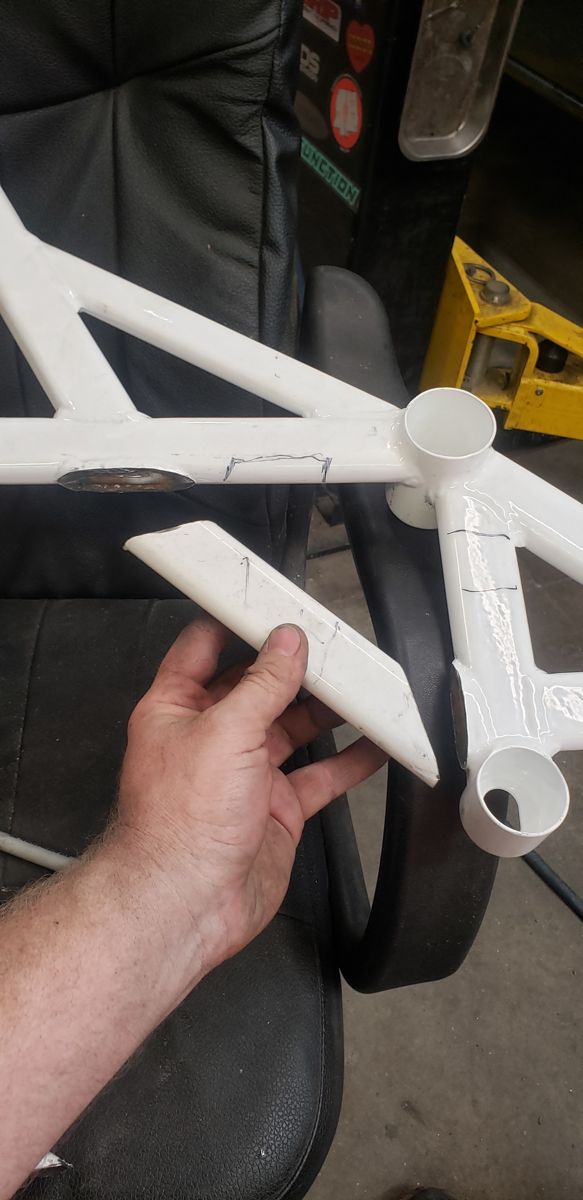

      White subframe brace with one leg cut off, held in hand
      Brace leg cut off to clear the Sikky headers

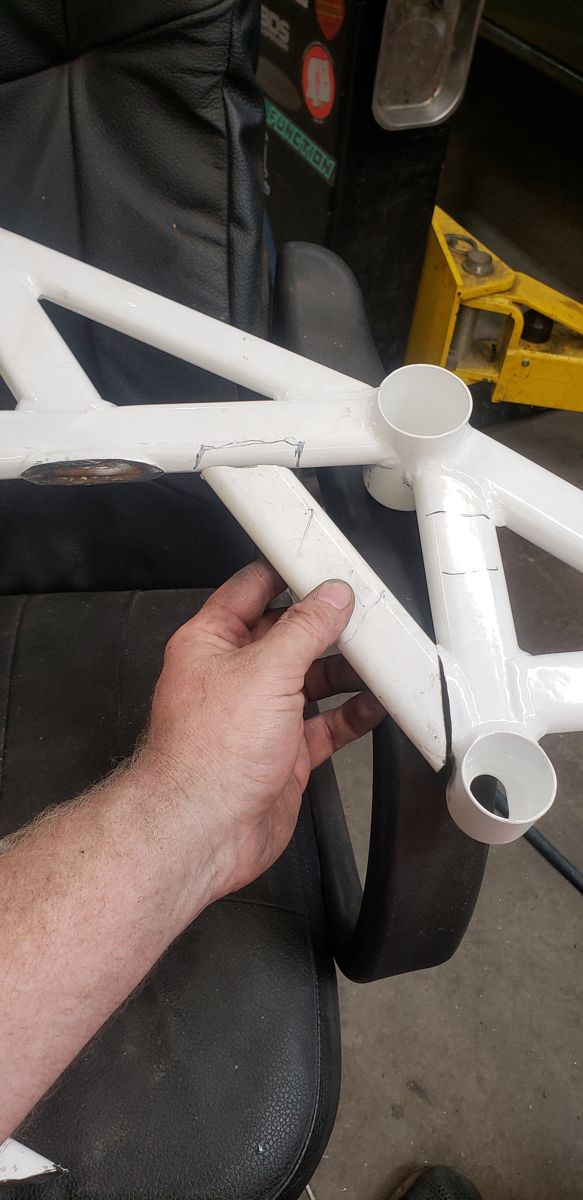

      Cut brace leg held up in its new position before rewelding
      Cut leg held up where it gets moved and rewelded

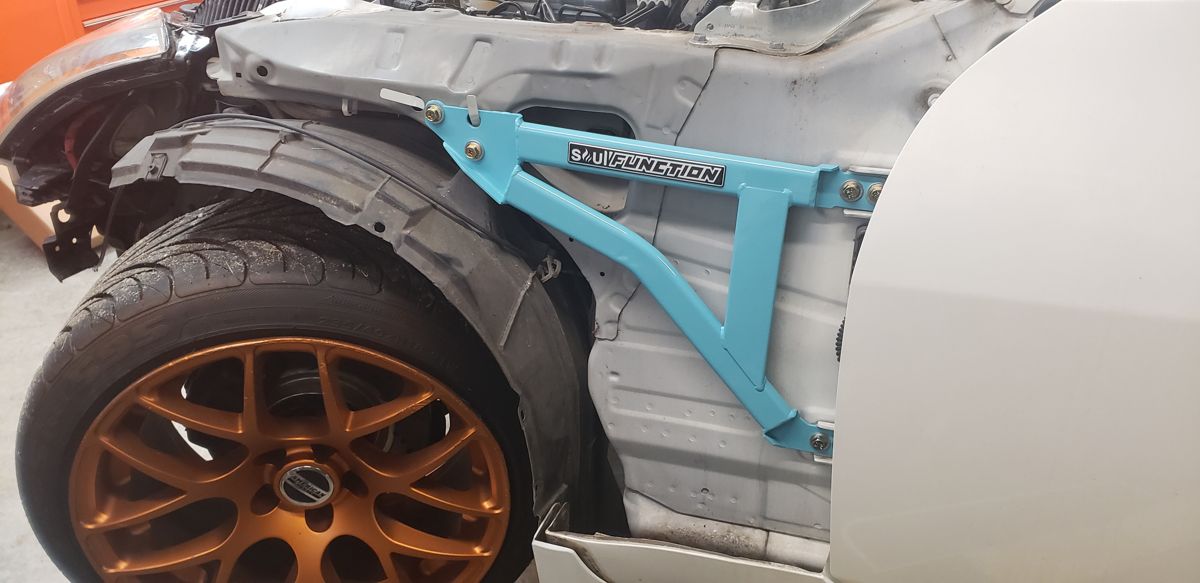

    • Soul Function fender braces, moved over from the white Z.
      Light blue Soul Function fender brace mounted behind the front wheel
      Soul Function fender brace, shown on the white Z before moving to the black Z
    • GM ECU and harness wired by Wiring Specialties, with their CAN bus box
    • ECU mount
      Not recommended: "Not something I suggest, but here's what I did: I took out the stock 350Z ECU to fit the GM ECU that runs the car. I pulled the cover off the GM ECU, welded the stock 350Z ECU bracket to it, and installed it in the stock 350Z ECU location."

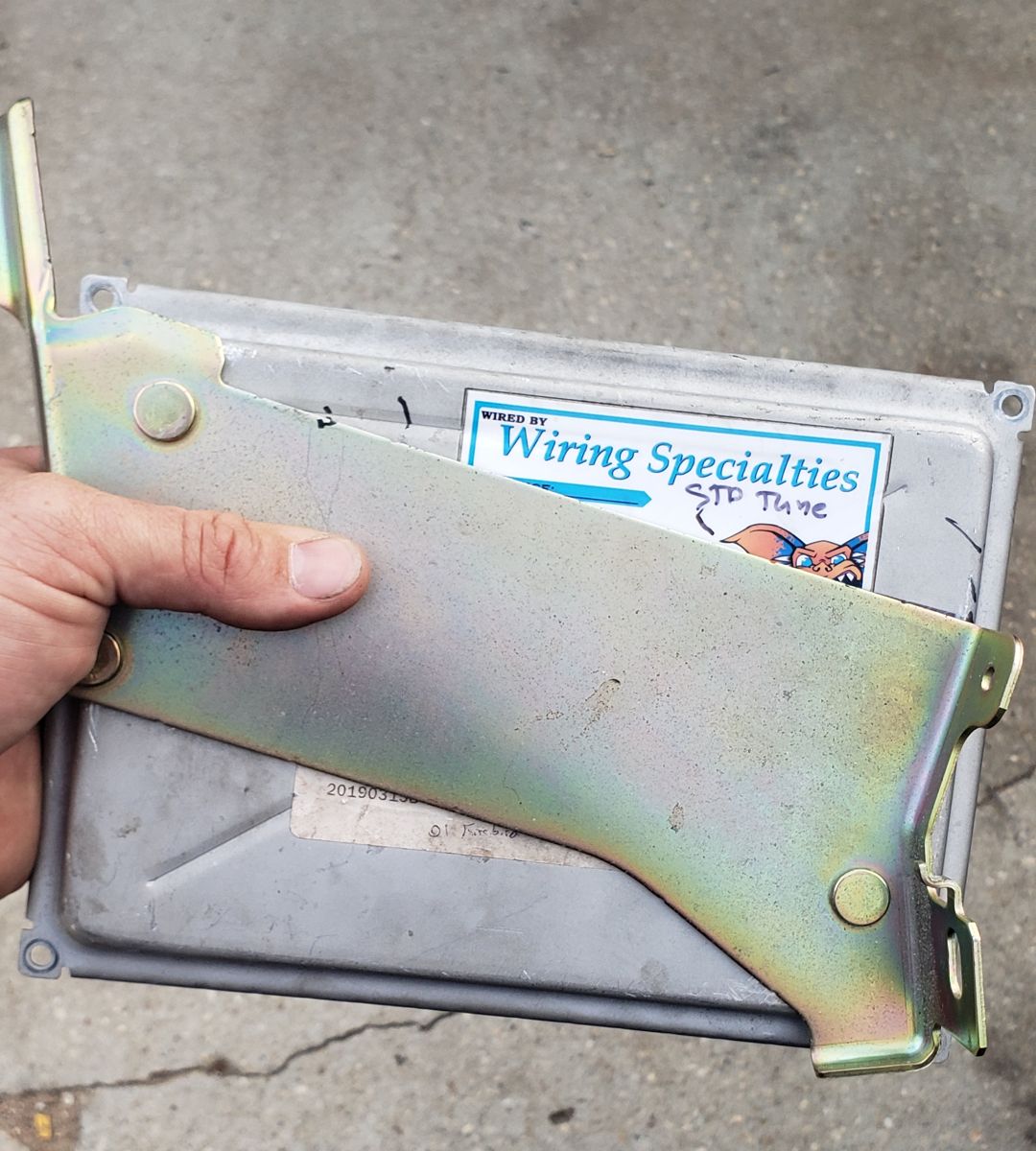

      Stock 350Z ECU bracket welded to the GM ECU cover
      Stock 350Z ECU bracket welded to the GM ECU cover.

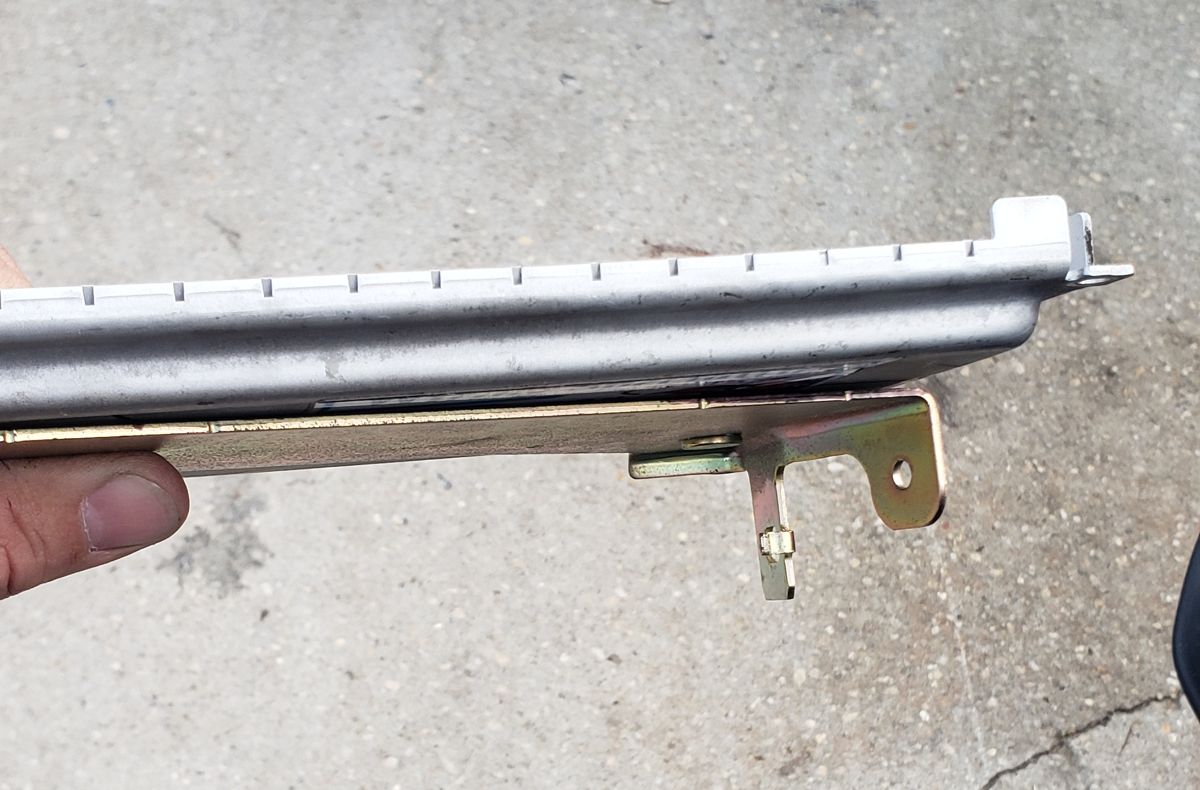

      Side view of the bracket welded to the GM ECU
      Side view of the bracket and ECU.

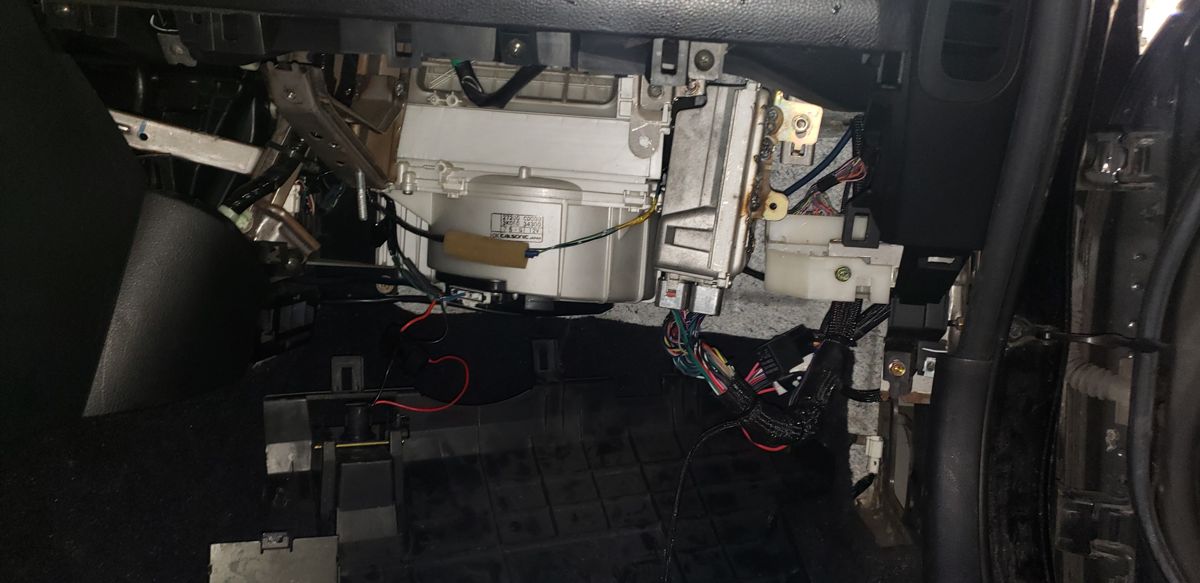

      Stock 350Z ECU location under the dash
      Stock ECU location under the dash.

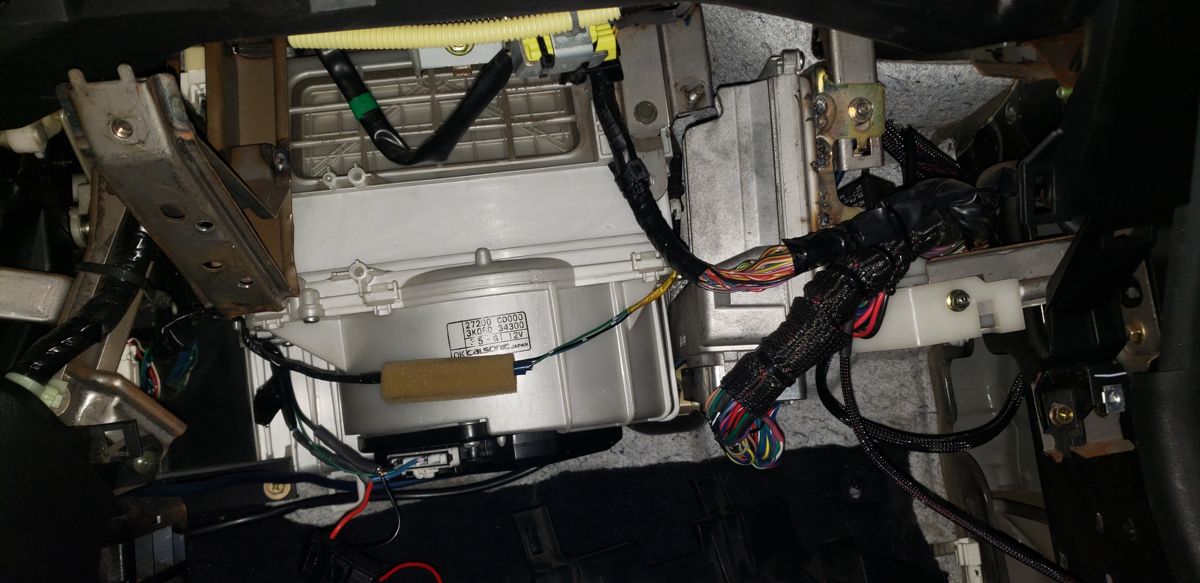

      Wiring harness routed at the stock ECU location
      Harness routed at the stock ECU spot.

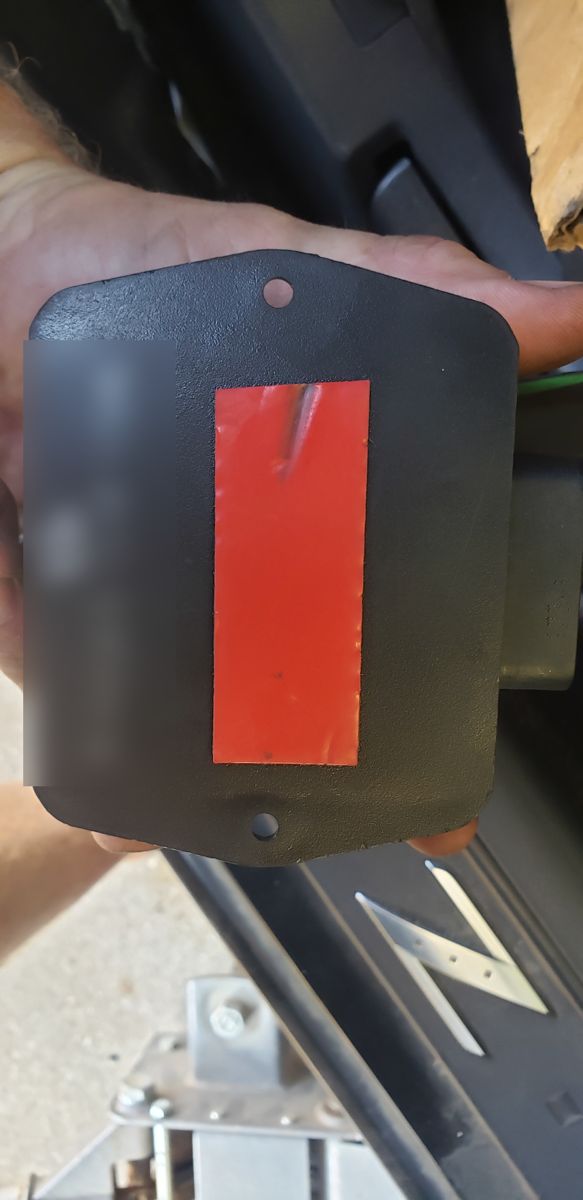

      Wiring Specialties CAN bus box held in hand
      The CAN bus box from the Wiring Specialties harness.
  • 2008 Chevy Silverado: stock 4.8 out, a 6.0 he built himself in
  • Next up, 2015 GMC Sierra: L8T swap, replacing the 4.3 V6

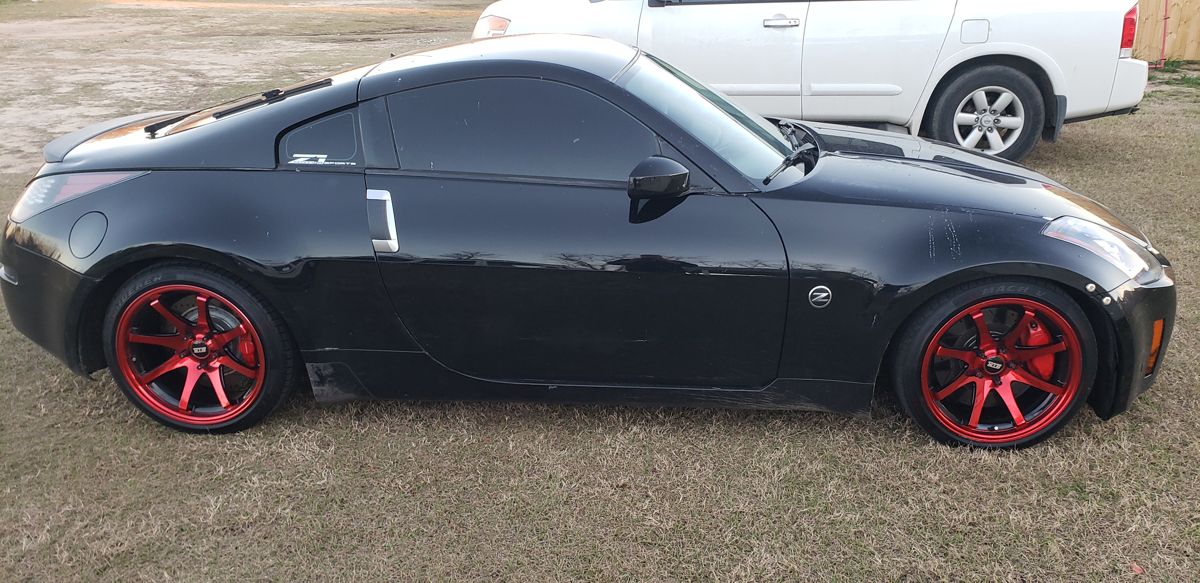

Black LS-swapped 350Z on red wheels with red Akebono calipers
The black Z on red wheels, with the red Akebono calipers showing.
LS with long-tube headers and transmission on a stand
LS with long-tube headers, trans bolted up
Finished 350Z engine bay with FAST intake and Sikky intake tube
Black Z finished bay: FAST intake, Sikky intake tube
Black LS-swapped 350Z on bronze wheels
The black Z on bronze wheels
Black LS-swapped 350Z on red wheels
The black Z on red wheels

First LS swap: white Nissan 350Z

The first 350Z Kolby LS-swapped, using the LS2 and T56 from an '06 GTO. After the white Z was totaled, he pulled the LS and rebuilt it with:

  • Eagle forged crank and Eagle forged rods
  • Mahle pistons
  • PRC (Precision Race Components) CNC cylinder heads and a Texas Speed MS2 cam (238/242, .600/.600 lift, 112 LSA as stamped)
  • FAST 102 intake and FAST throttle body

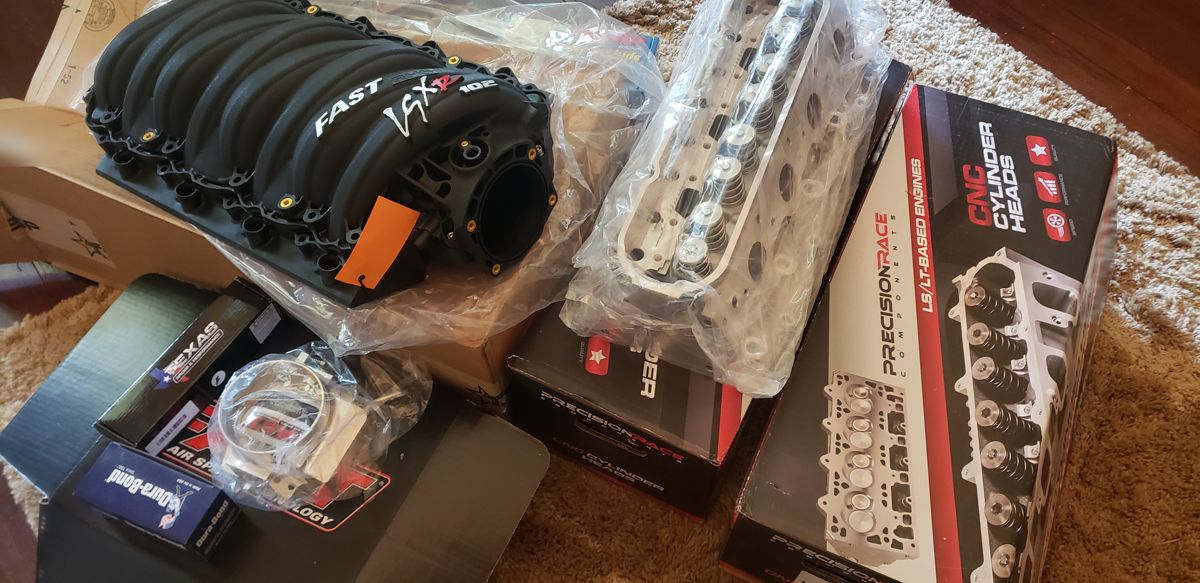

FAST LSXR 102 intake, throttle body, and PRC CNC cylinder heads still boxed
Engine parts for the rebuild: FAST LSXR 102 intake, throttle body, and PRC CNC cylinder heads

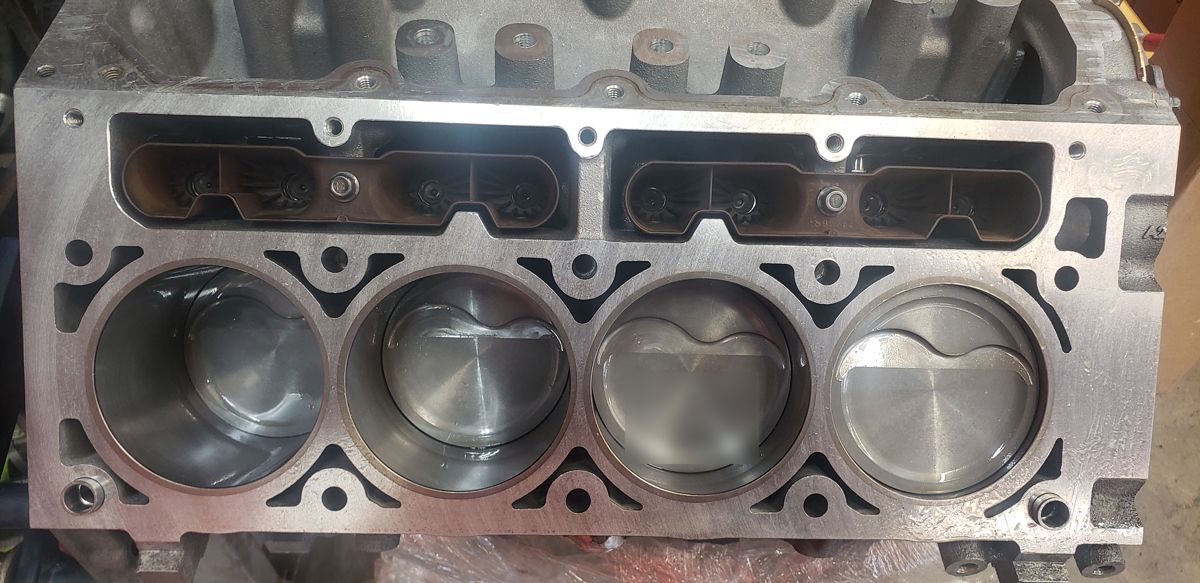

LS block with forged pistons installed
Block with the forged pistons in

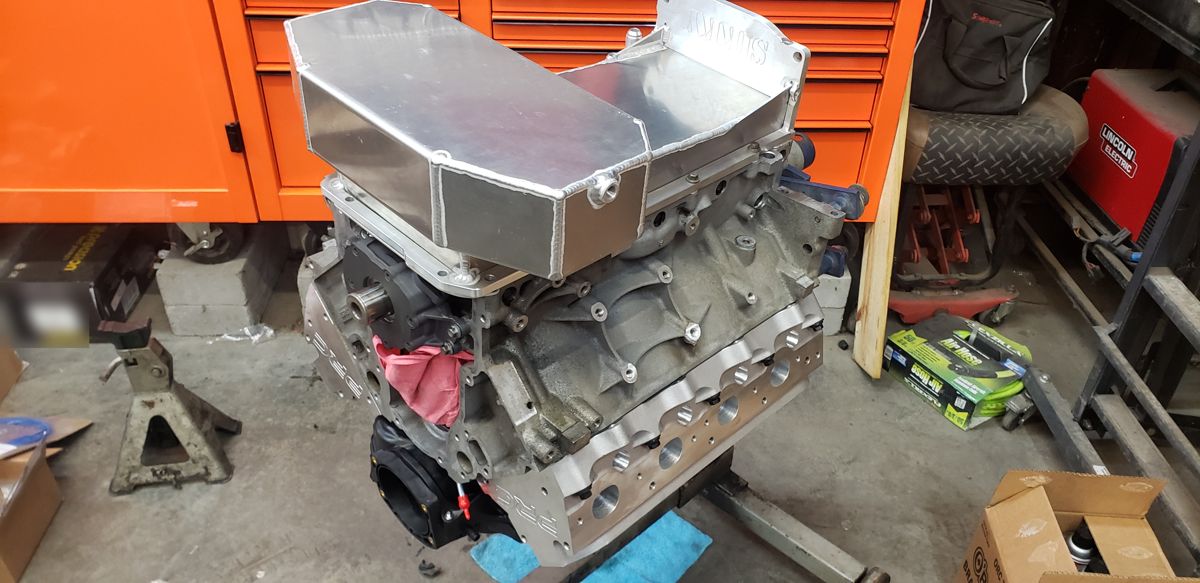

Long block with PRC heads and aluminum oil pan on an engine stand
Long block on the stand, with the PRC heads

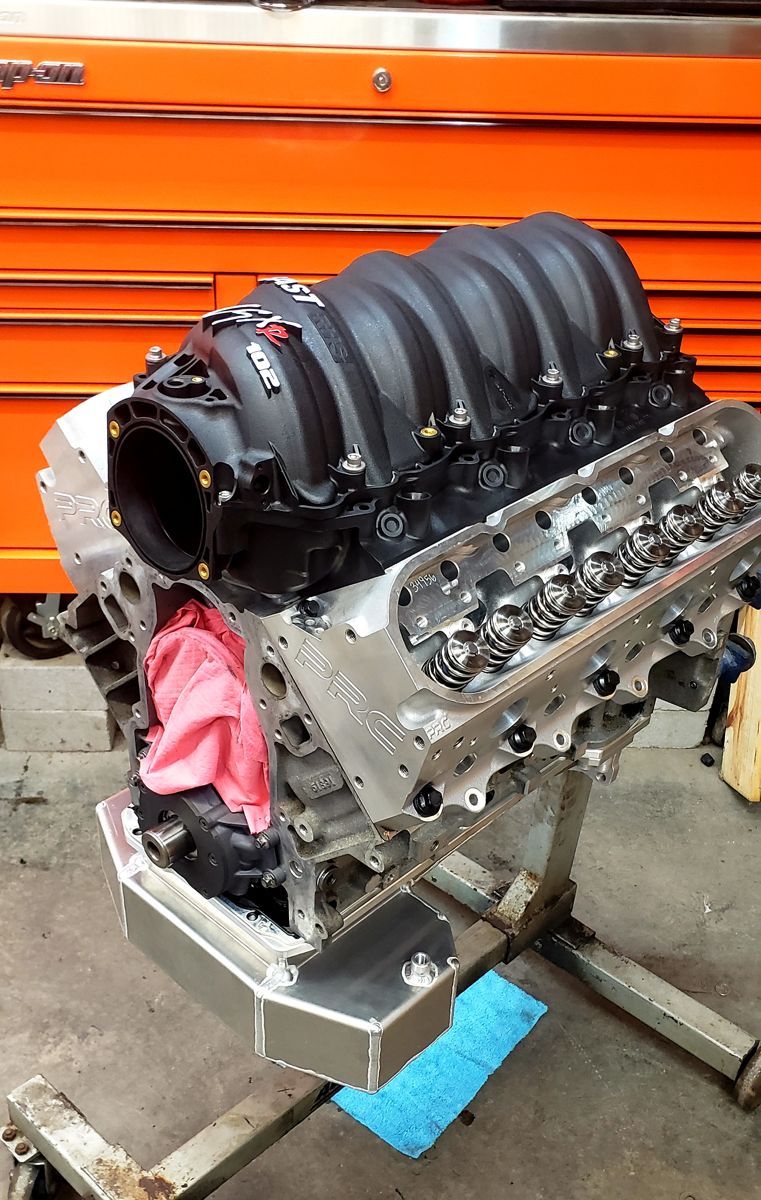

FAST LSXR 102 intake bolted to the PRC heads
FAST LSXR 102 intake on the PRC heads

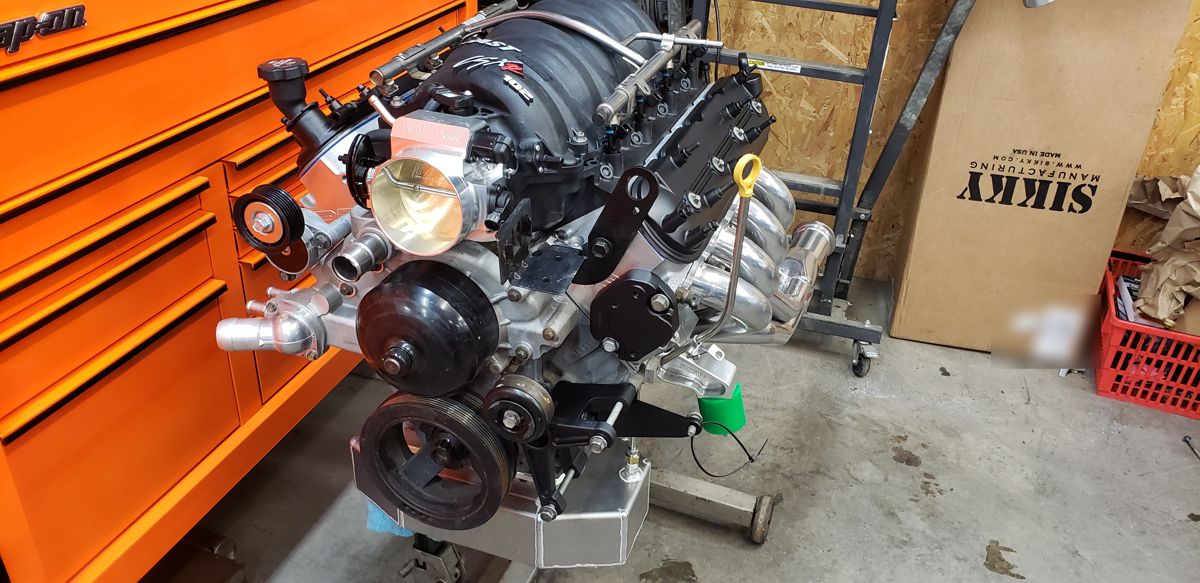

Dressed LS on the stand with long-tube headers
Dressed and ready, with long-tube headers

That rebuilt LS now runs in his black 350Z.

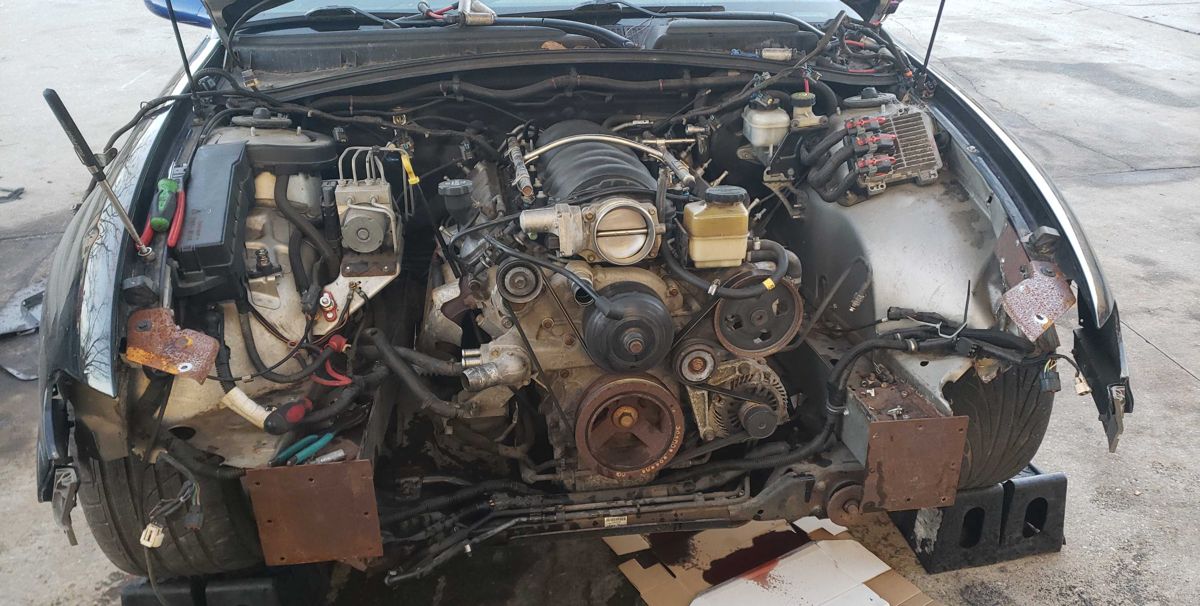

LS2 in the engine bay of an '06 Pontiac GTO mid-teardown
The donor: LS2 and T56 in the '06 GTO, before they came out.

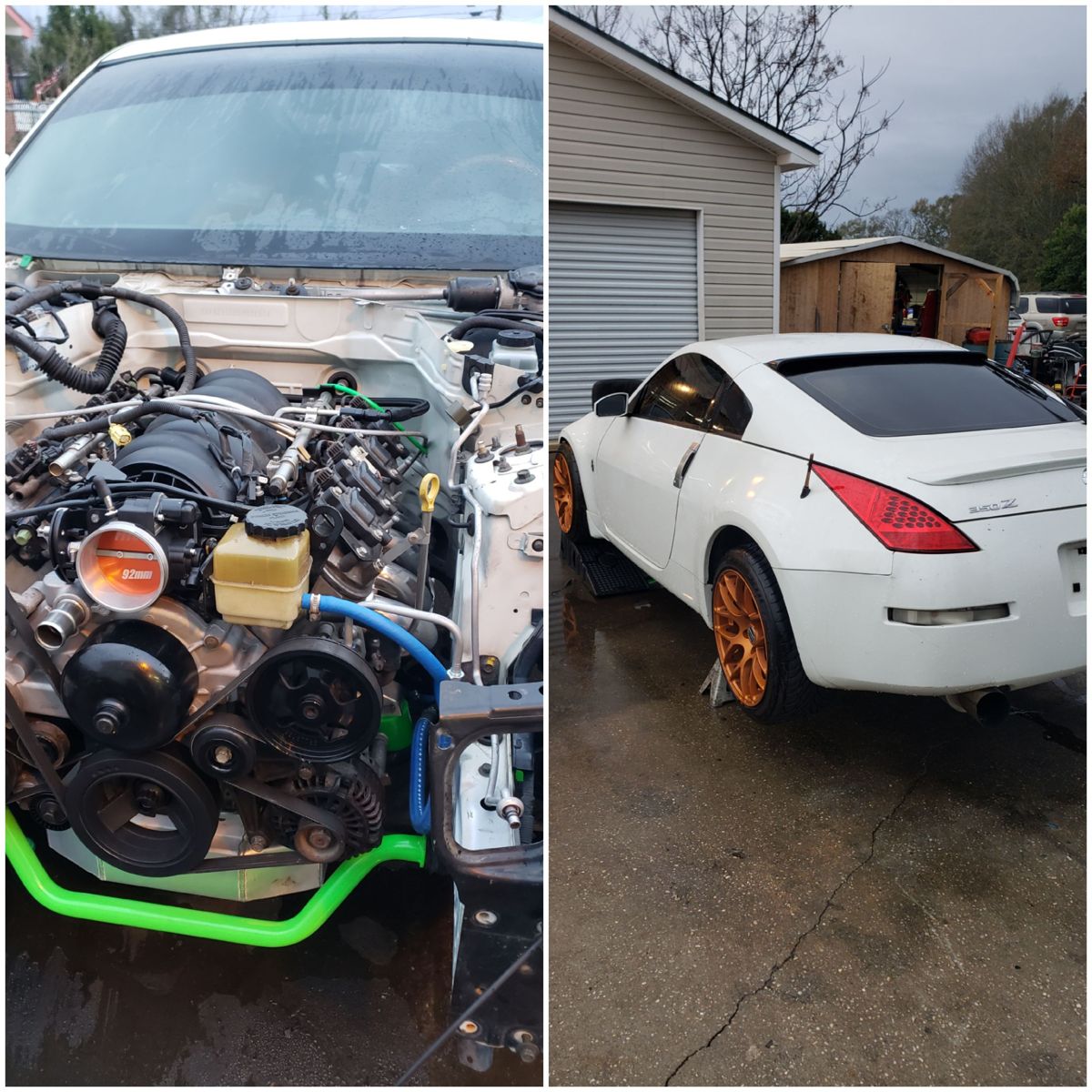

Finished LS engine bay with 92mm throttle body, and the white 350Z on bronze wheels
Finished bay with a 92mm throttle body, and the white Z on bronze wheels

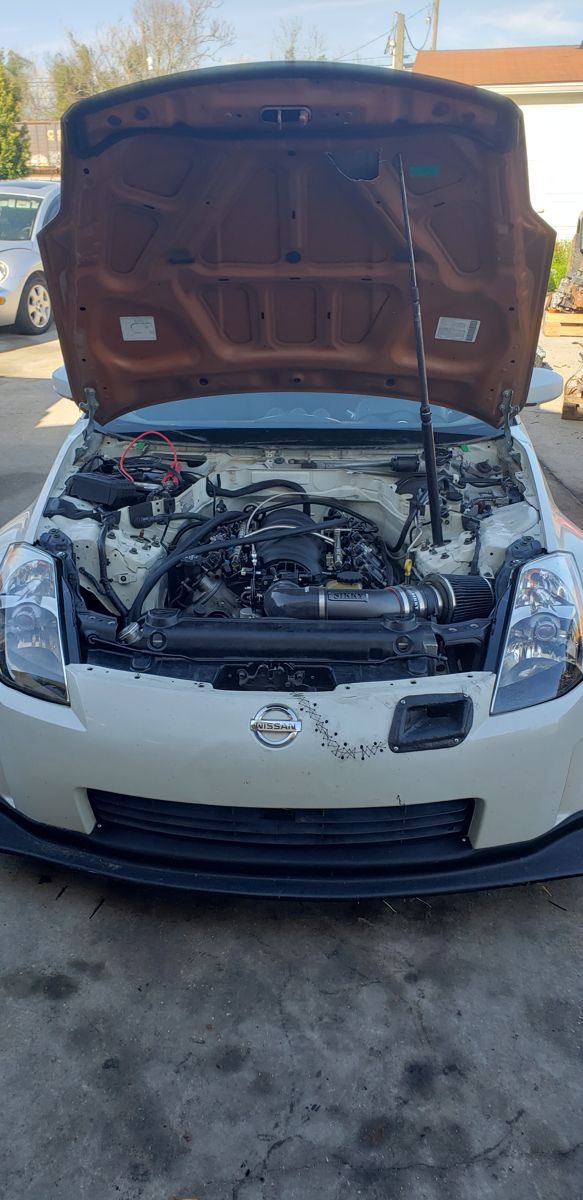

White 350Z from the front, hood up, LS in the bay with Sikky intake
LS in the white Z, hood up, with a Sikky intake.

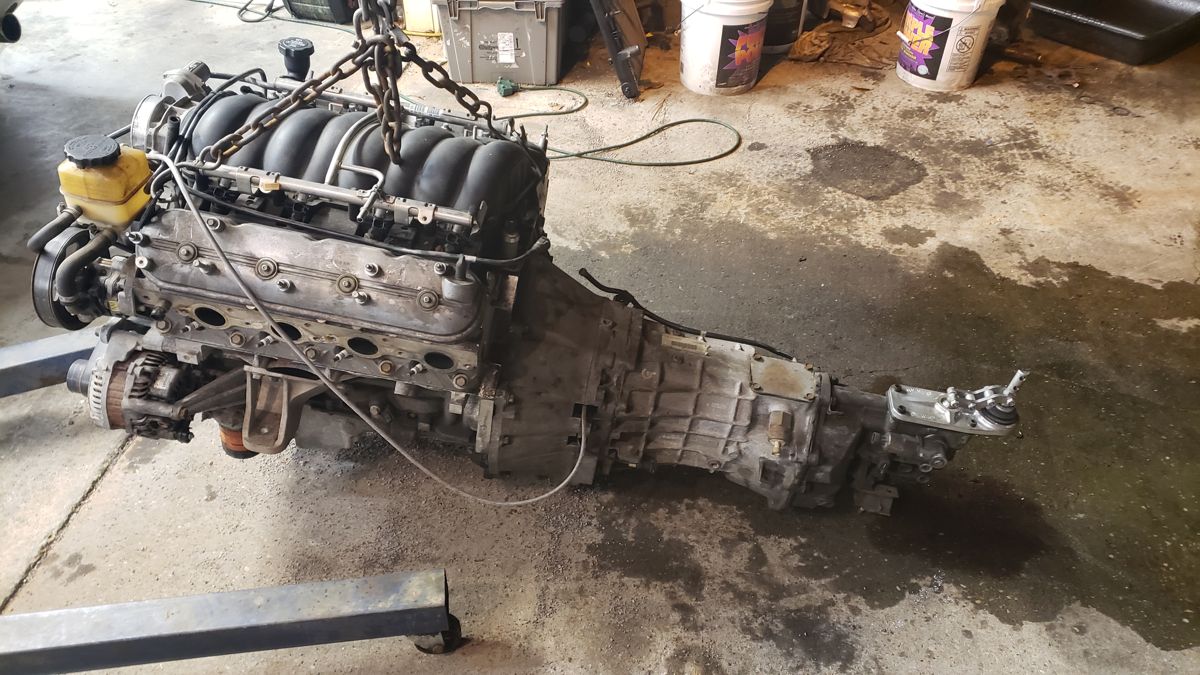

LS and manual transmission on the shop floor
LS and manual trans on the floor

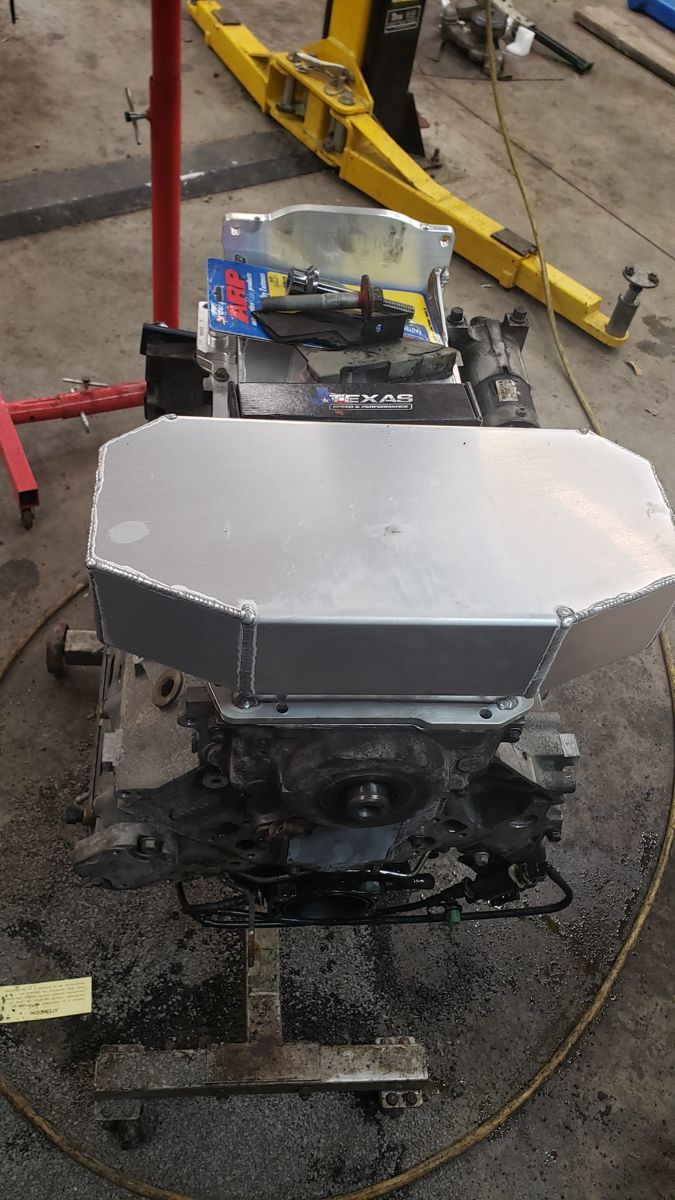

LS on an engine stand with aluminum oil pan and Texas Speed box
On the stand with the aluminum swap oil pan

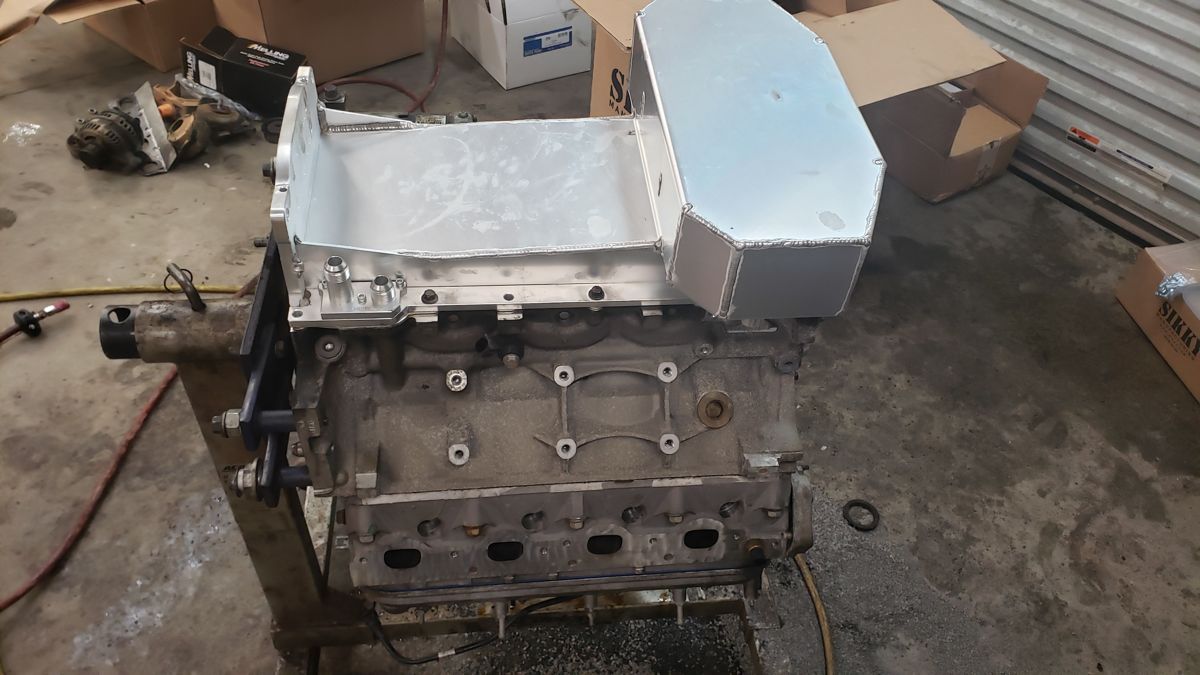

Aluminum swap oil pan mocked up on the block
Aluminum swap oil pan mockup

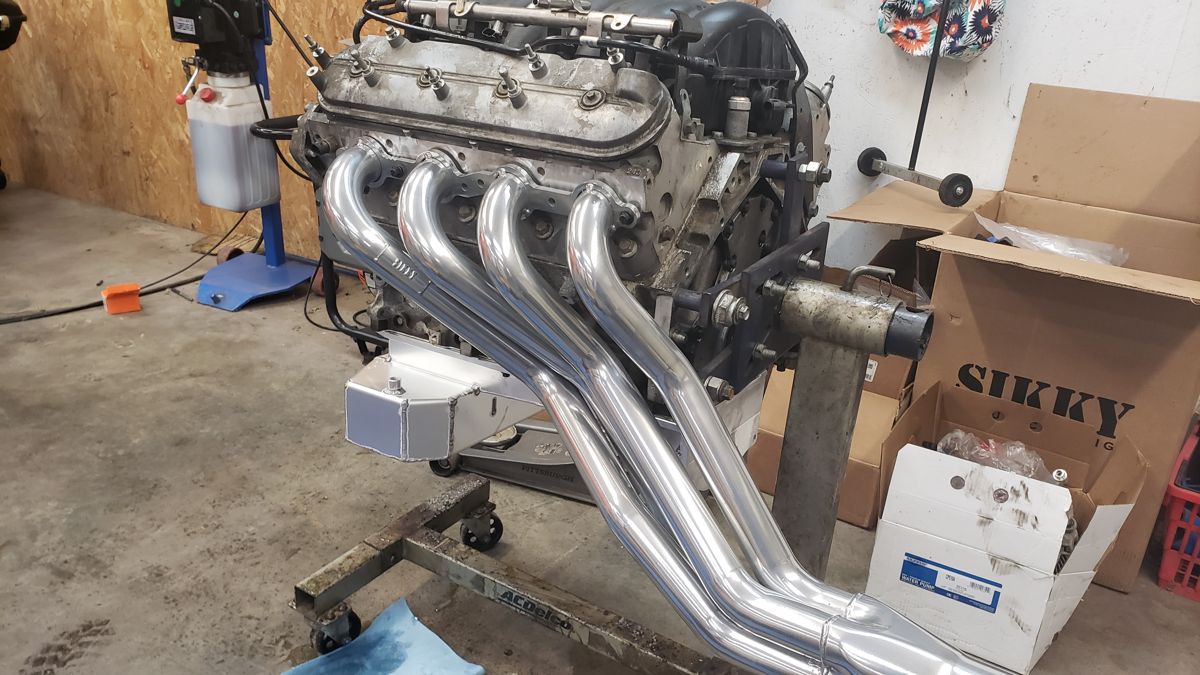

Long-tube headers
Long-tube headers

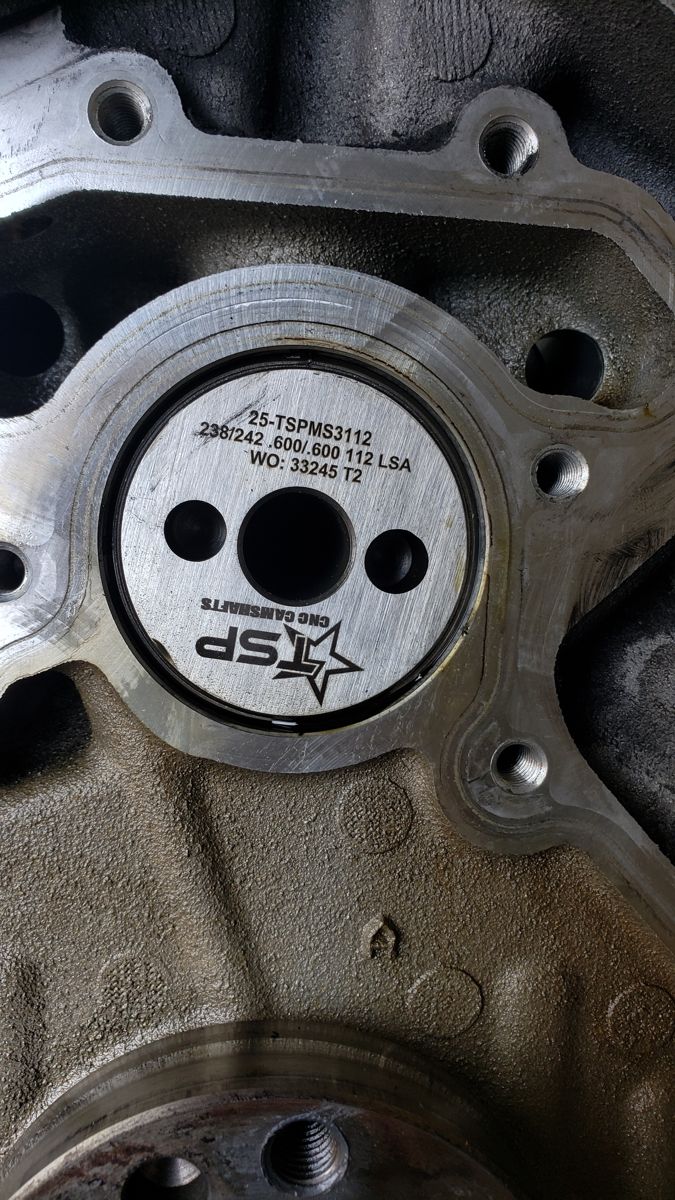

Texas Speed cam retainer plate stamped 238/242 .600/.600 112 LSA
Texas Speed cam: 238/242, .600/.600 lift, 112 LSA (as stamped)

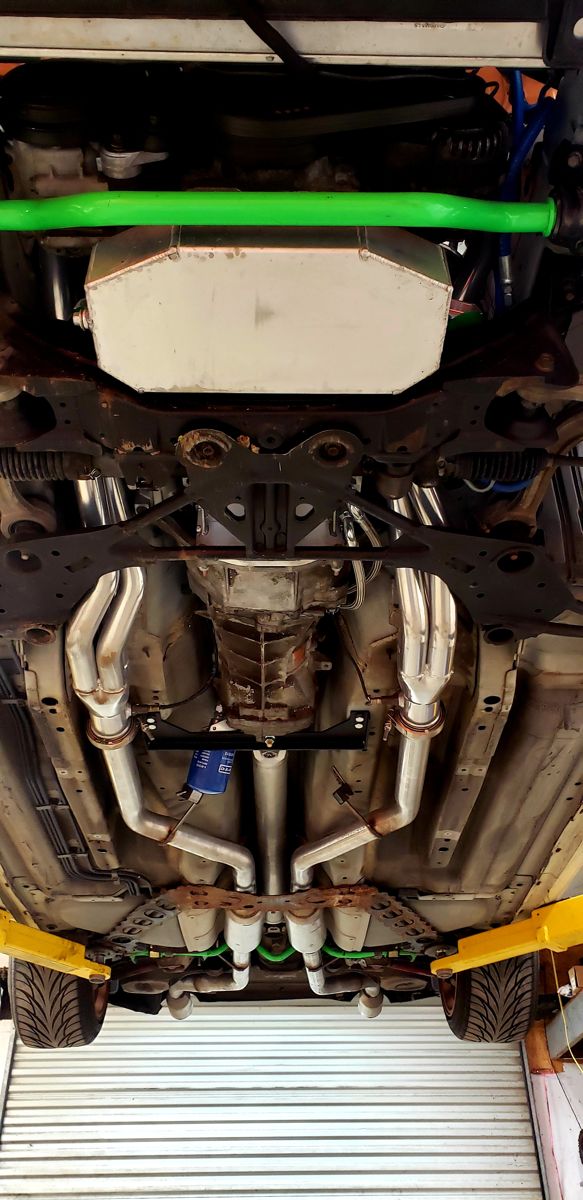

Underside of the white Z: aluminum swap oil pan, T56 and long-tube headers
Underneath: swap oil pan, T56, and long tubes.

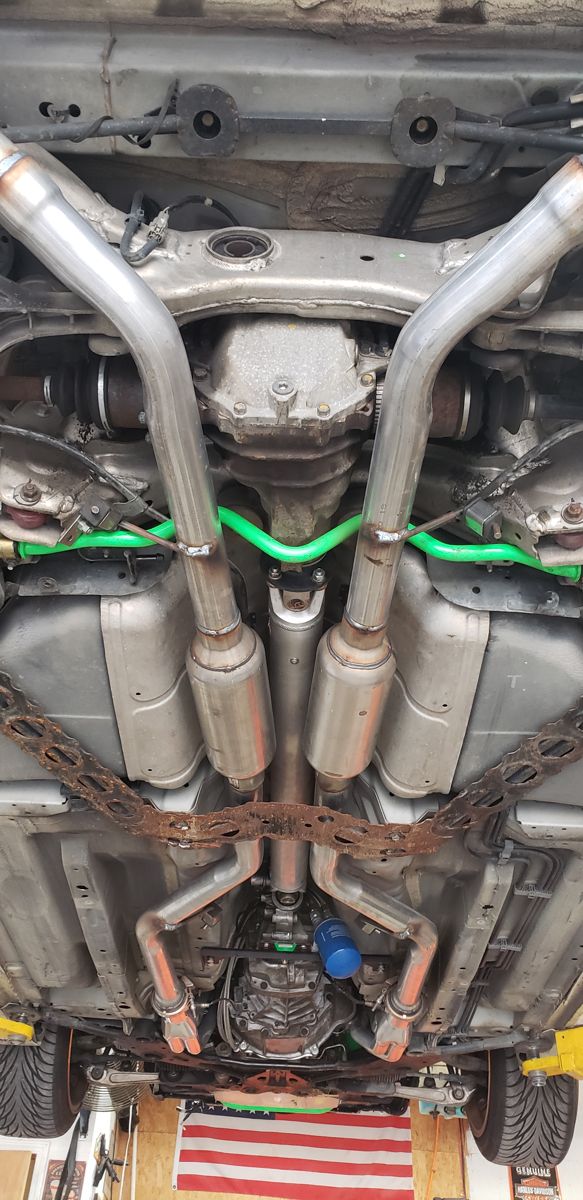

Underside rear of the white Z: exhaust and rear differential
Exhaust run back to the rear end.

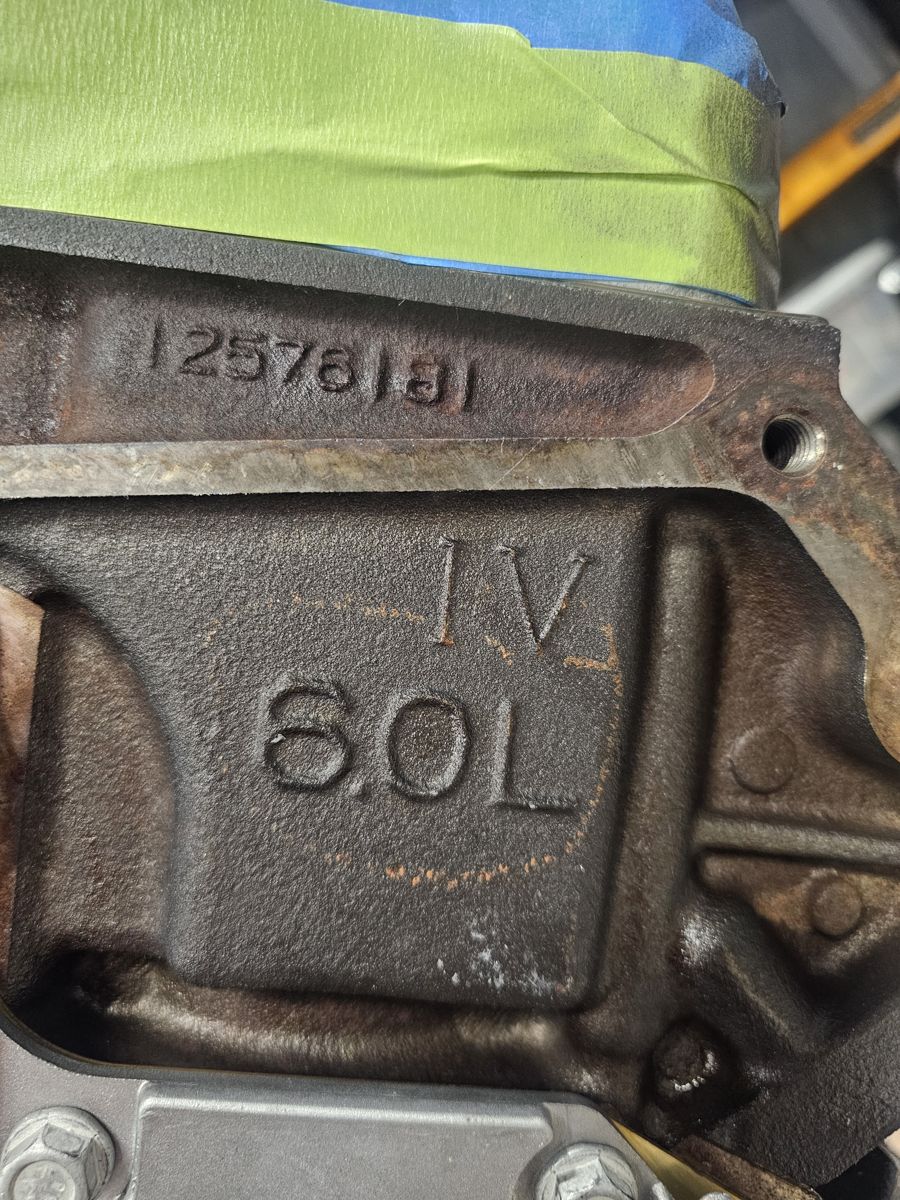

2008 Chevy Silverado: 4.8 out, a 6.0 I built in

The stock 4.8 came out, and a 6.0 Kolby built himself went in.

How it started
Blue-gray 2008 Chevy Silverado with a grille guard, parked on grass by a metal shop building
The Silverado the day I got it
Side view of the 2008 Silverado regular cab on off-road tires
Side view, as bought
Original 4.8 V8 partly torn down in the Silverado engine bay
The original 4.8, torn down in the truck
Oil pan from the old 4.8 with metal chunks and debris inside
Oil pan full of metal from the old 4.8
Bent, damaged windage tray and oil pickup under the old 4.8
Damaged windage tray and oil pickup

What killed the old 4.8: spun bearings and two broken rods.

Teardown
Bottom end of the old 4.8 with the pan off
Bottom end of the old 4.8 with the pan off
Damaged crank journal with the rod gone
Damaged crank journal with the rod gone
Another look at the damaged journal
Another look at the damaged journal
Chewed-up crank journal
Chewed-up crank journal
Main bearing saddles and bores
Main bearing saddles and bores
Two broken pistons, one with a snapped rod still in it
Two broken pistons, one with a snapped rod still in it
6.0 build parts
  • ARP Pro Series cylinder head bolt kit (134-3610)
  • Texas Speed Chopacabra cam (214/222, .550/.550 lift, 108 LSA as stamped)
  • Texas Speed forged connecting rods (TSP-6125SHB-8)
  • Wiseco pistons, K398X3 (per the box label: Chevy LS, -3.2cc flat top, 4.030 bore, 1.3045 compression height)
  • Mahle Clevite bearings
  • Johnson/Morel MRL-7717 lifters

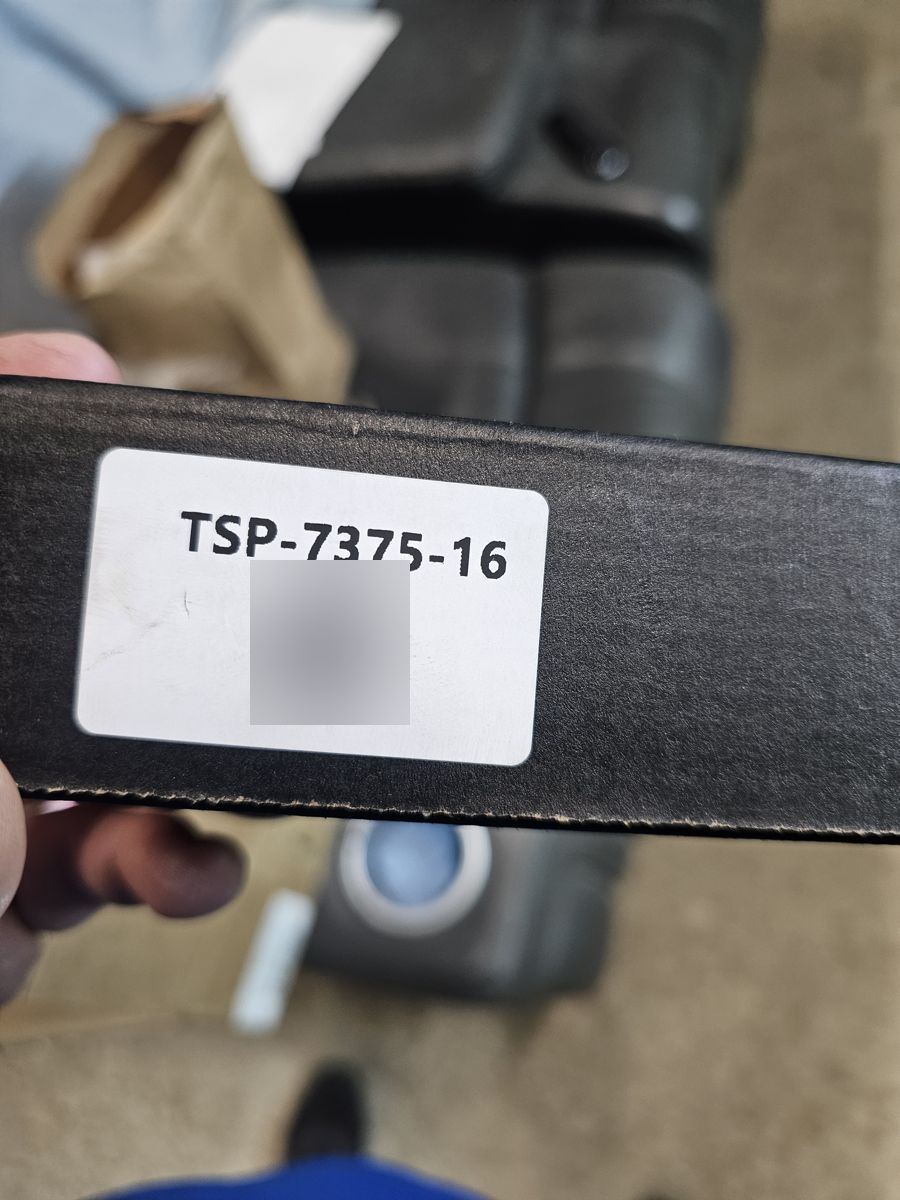

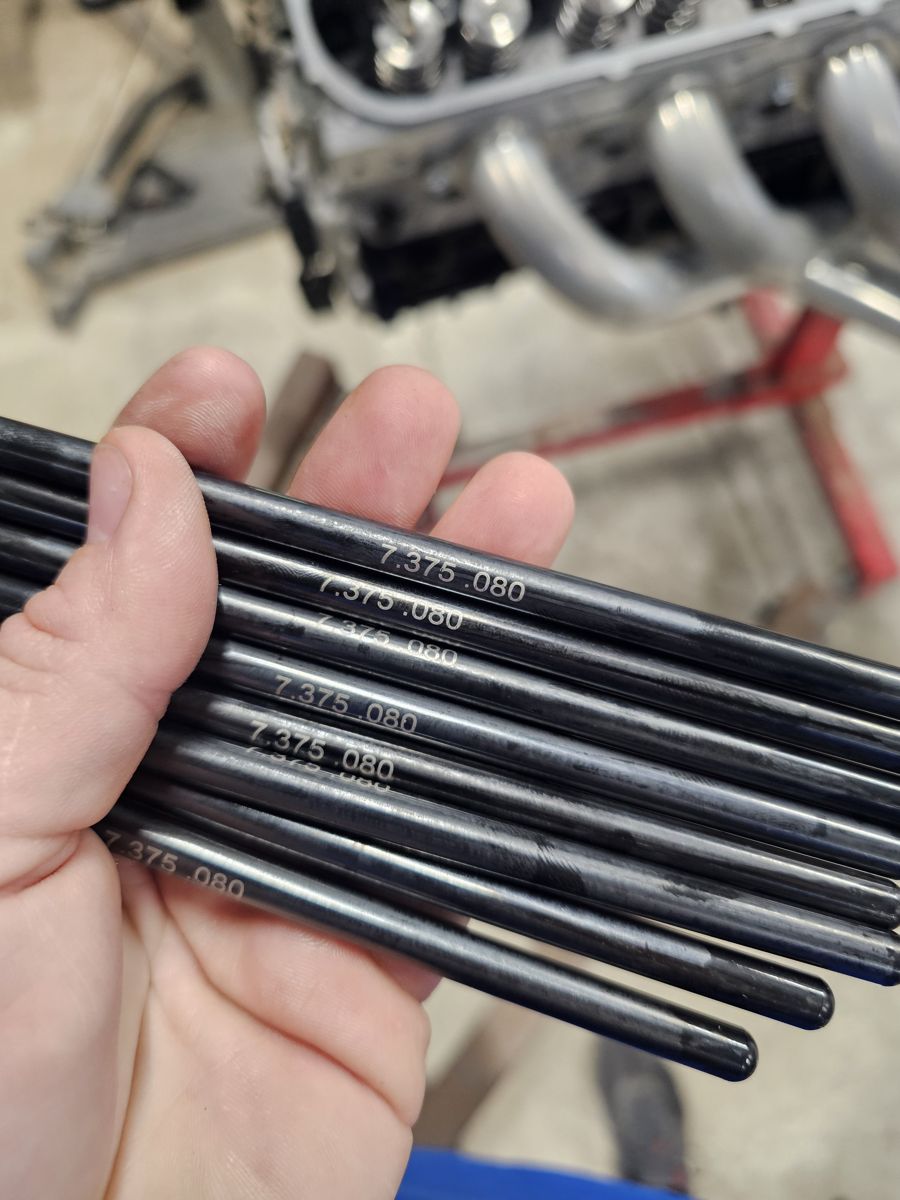

  • Texas Speed 7.375" x .080" wall pushrods (TSP-7375-16), chosen after checking lash
  • Mr. Gasket lifter trays (61230G)
  • Tick Performance bronze trunnion bushing upgrade kit
  • GM head gasket (12589227)
  • GM timing chain dampener (12588670)
  • GM tapered camshaft retainer plate (12589016)
  • GM rear cover plate (12639250)
  • Mr. Gasket valve cover gaskets (61040G)
  • Tick Performance cam-swap gasket and bolt kit
  • ERA Paints black engine paint

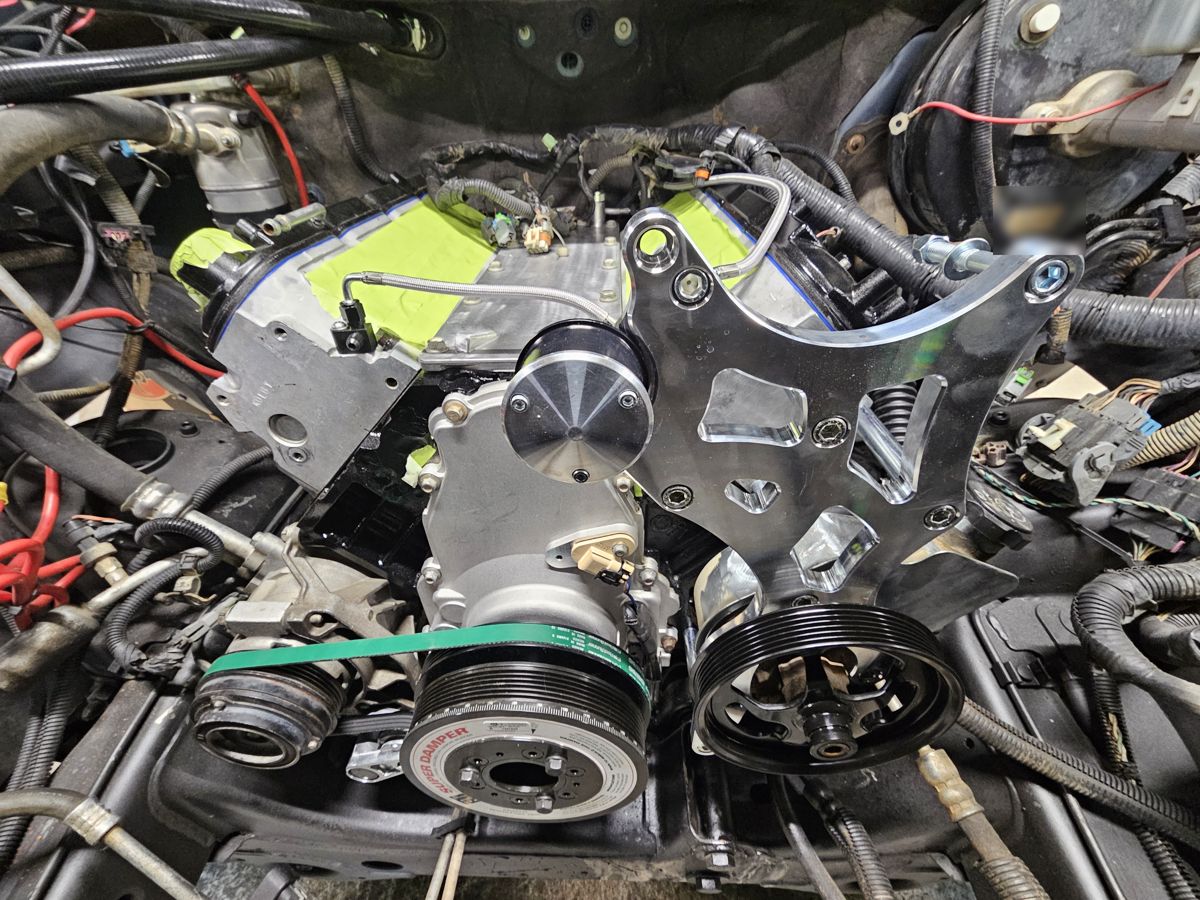

  • ATI Super Damper balancer (ATI917286)
  • Speed Engineering 1 7/8 in. stainless long tube headers (2007-2013 Silverado/Sierra)
  • Driven Racing Oil BR30 conventional 5W-30 break-in oil
  • Alloyworks 3-row aluminum radiator (RAD-CHEV-DP-49)
  • K&N cold air intake
  • Metal heater core hose fittings (etched 800-409HP), replacing the factory plastic ones
  • CVF Racing billet accessory bracket (LSX-PSBRKT-R4)
  • Many of the small parts came from Tick Performance.
ARP Pro Series head bolt kit box in front of a Texas Speed camshaft box
ARP bolts and studs, with the Texas Speed cam box behind
Rocker trunnion upgrade kit with bronze bearings in its box
Rocker trunnion upgrade with bronze bearings
Wiseco flat-top piston held in hand, crown up
Wiseco flat-top piston crown
Wiseco K398X3 piston box label
Wiseco K398X3 box label
Boxes of Mahle Clevite bearings
Mahle Clevite bearings
GM head gasket label, part 12589227
GM head gasket, part 12589227
Texas Speed rod box label, TSP-6125SHB-8
Texas Speed forged rods, TSP-6125SHB-8
Texas Speed forged connecting rods box
Texas Speed forged connecting rods
Wiseco pistons box
Wiseco pistons box
Building the 6.0
Proof it's a 6.0: 12576181 block casting and 6.0L stamp
Proof it's a 6.0: 12576181 block casting and 6.0L stamp
Freshly machined 6.0 block on the stand
Freshly machined 6.0 block on the stand
Crank in and the mains torqued
Crank in and the mains torqued
Texas Speed forged rod
Texas Speed forged rod
Wrist pins out of the box
Wrist pins out of the box
Bench setup: Mahle bearings, TSP rods and the assembly tools
Bench setup: Mahle bearings, TSP rods and the assembly tools
Wiseco pistons unboxed
Wiseco pistons unboxed
Texas Speed forged rods (6.125 in. center to center)
Texas Speed forged rods (6.125 in. center to center)
Texas Speed forged connecting rods box
Texas Speed forged connecting rods box
Pistons in the bores
Pistons in the bores
Texas Speed Chopacabra cam
Texas Speed Chopacabra cam
Pressing a rocker arm for the trunnion upgrade
Pressing a rocker arm for the trunnion upgrade
Tick bronze trunnion bushing kit
Tick bronze trunnion bushing kit
Trunnion kit: 16 trunnions, 32 bushings, 32 snap rings
Trunnion kit: 16 trunnions, 32 bushings, 32 snap rings
Rocker with the stock trunnion pressed out
Rocker with the stock trunnion pressed out
Rocker with the bronze bushing and new trunnion in
Rocker with the bronze bushing and new trunnion in
Texas Speed 7.375" .080 pushrods
Texas Speed 7.375" .080 pushrods
Pushrod box label
Pushrod box label

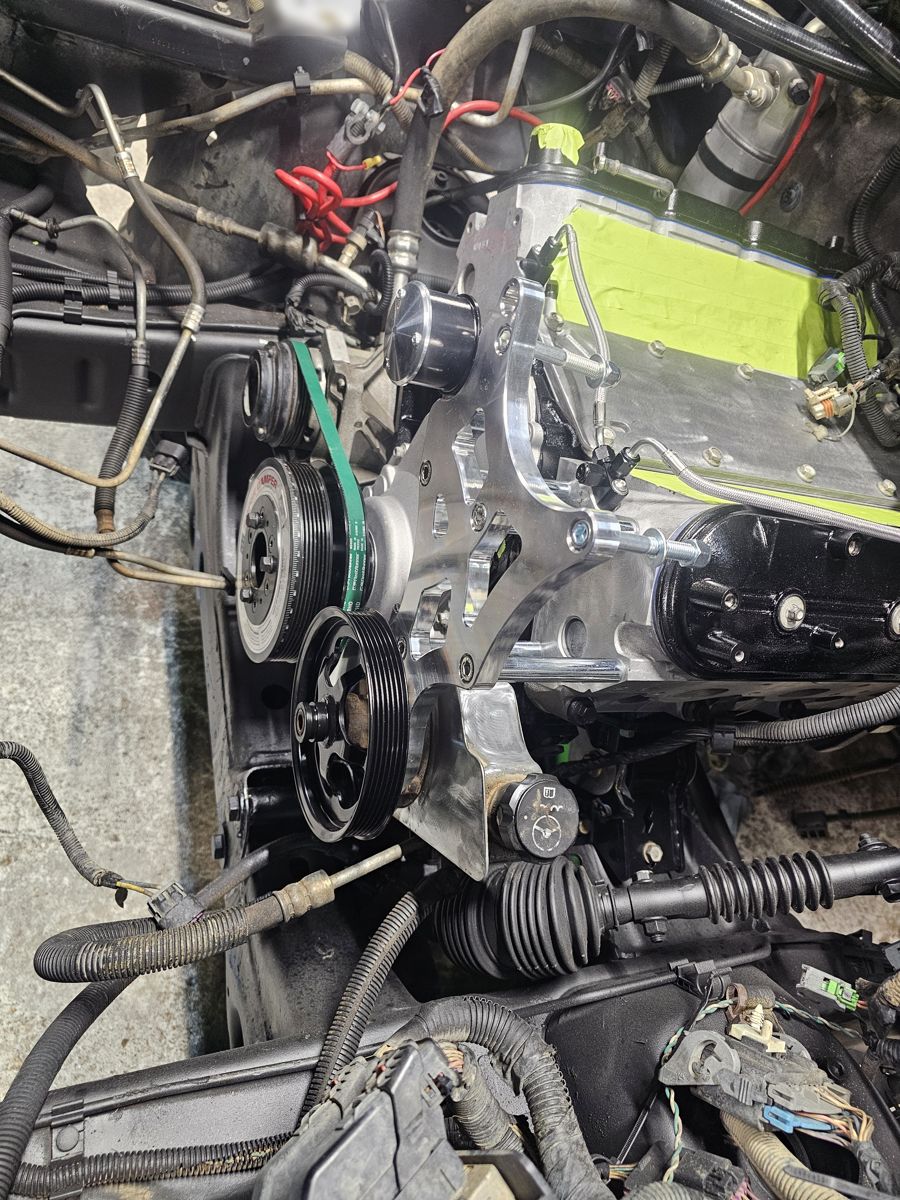

CVF billet accessory bracket, side view
CVF billet accessory bracket, side view
CVF billet bracket with the ATI damper
CVF billet bracket with the ATI damper
Painting the block
Heating the block with a torch before paint. Tip from an old timer: the heat sweats oil and chemicals out of the cast iron pores so the paint holds. You can see it sweating out.
Block masked off for paint
Block masked off for paint
Masked from the front
Masked from the front
ERA Paints black engine paint
ERA Paints black engine paint
First coat on
First coat on
Painted block with the heads on
Painted block with the heads on
Painted block, side view
Painted block, side view
Paint on, timing cover installed
Paint on, timing cover installed
Front of the painted 6.0
Front of the painted 6.0
Painted block, driver side
Painted block, driver side
Heads, valve covers and headers going on
Heads, valve covers and headers going on
Builder's note: "A full year and 12k miles later, the paint has held up nicely. The ERA Paints engine paint is expensive, but it looks good and holds up."
Going back in
  • Solid engine mounts (builder thinks from Summit Racing)
  • Tip: even with solid mounts, the heads touched a small spot on the frame. That contact made the knock sensors pull timing, so he sanded the spot down for clearance.
ATI Super Damper (ATI917286)
ATI Super Damper (ATI917286)
Damper on, long block ready
Damper on, long block ready
On the hoist, flexplate side
On the hoist, flexplate side
Dropping it into the Silverado
Dropping it into the Silverado
Lining it up
Lining it up
In and dressed: intake, throttle body and accessory drive
In and dressed: intake, throttle body and accessory drive
Driven BR30 break-in oil
Driven BR30 break-in oil
The finished 6.0 on the hoist, ready to go in
The finished 6.0 on the hoist, ready to go in

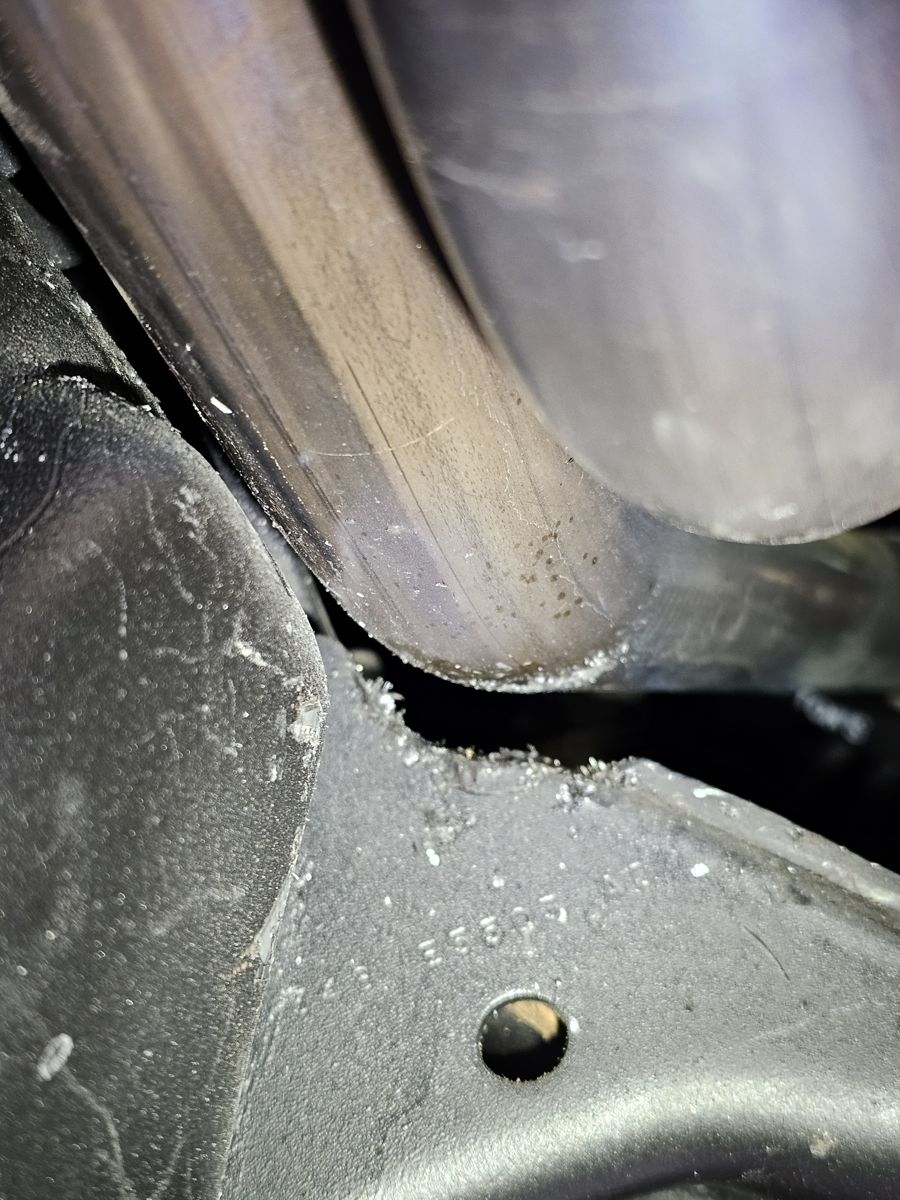

Tight clearance where it touched the frame; this spot was sanded down
Tight clearance where it touched the frame; this spot was sanded down
Headers and exhaust
  • Full 3" exhaust from the headers back
  • Flex pipes after the headers. Builder note: these caused a very odd whistle and he regrets using them.
  • X-pipe
  • Spintech mufflers
  • Vibrant Ultra Quiet resonators
  • Dual 4" black tips out the back
Speed Engineering long tube headers
Speed Engineering long tube headers
Driver side headers in
Driver side headers in
Passenger side headers in
Passenger side headers in
Collector and O2 bung
Collector and O2 bung
Header pipes under the truck
Header pipes under the truck

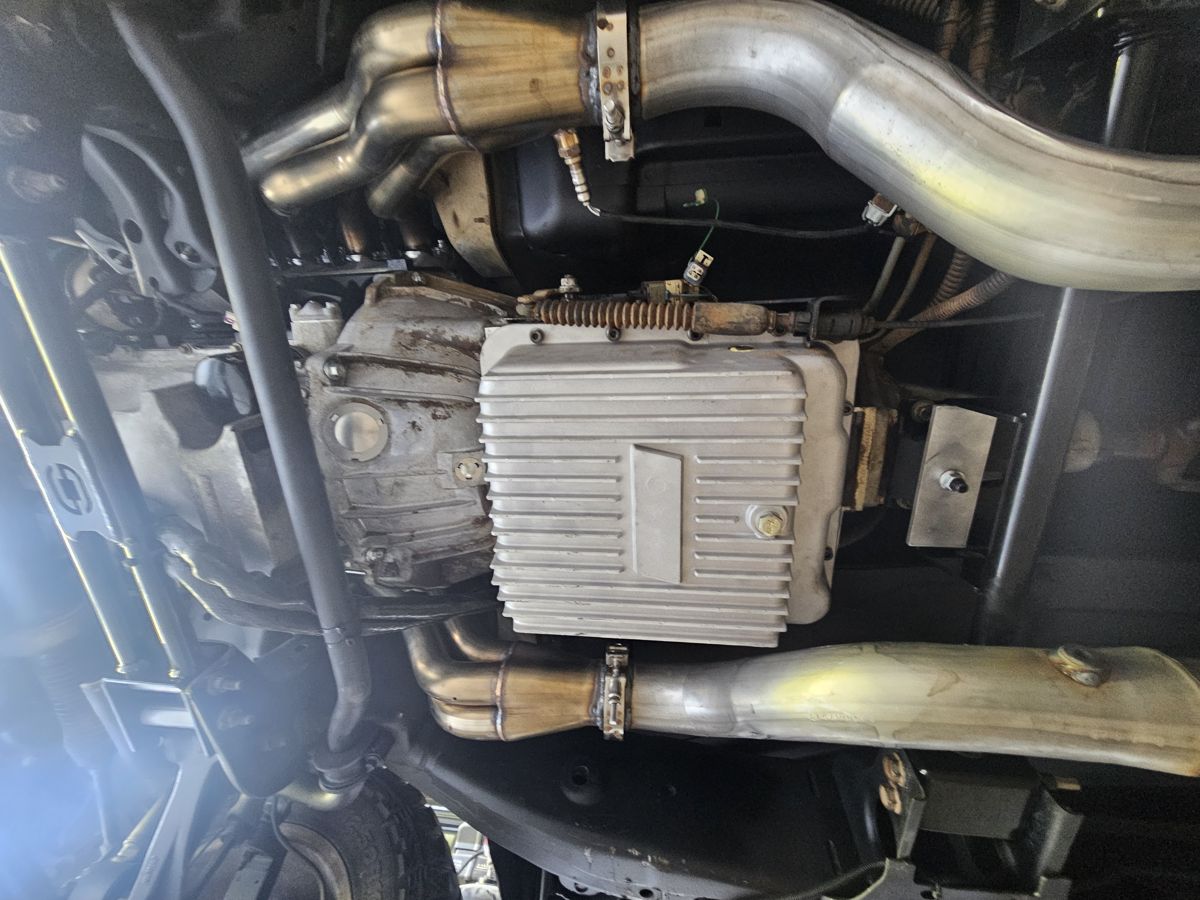

Underneath: headers into the 3" pipes past the deep trans pan
Underneath: headers into the 3" pipes past the deep trans pan

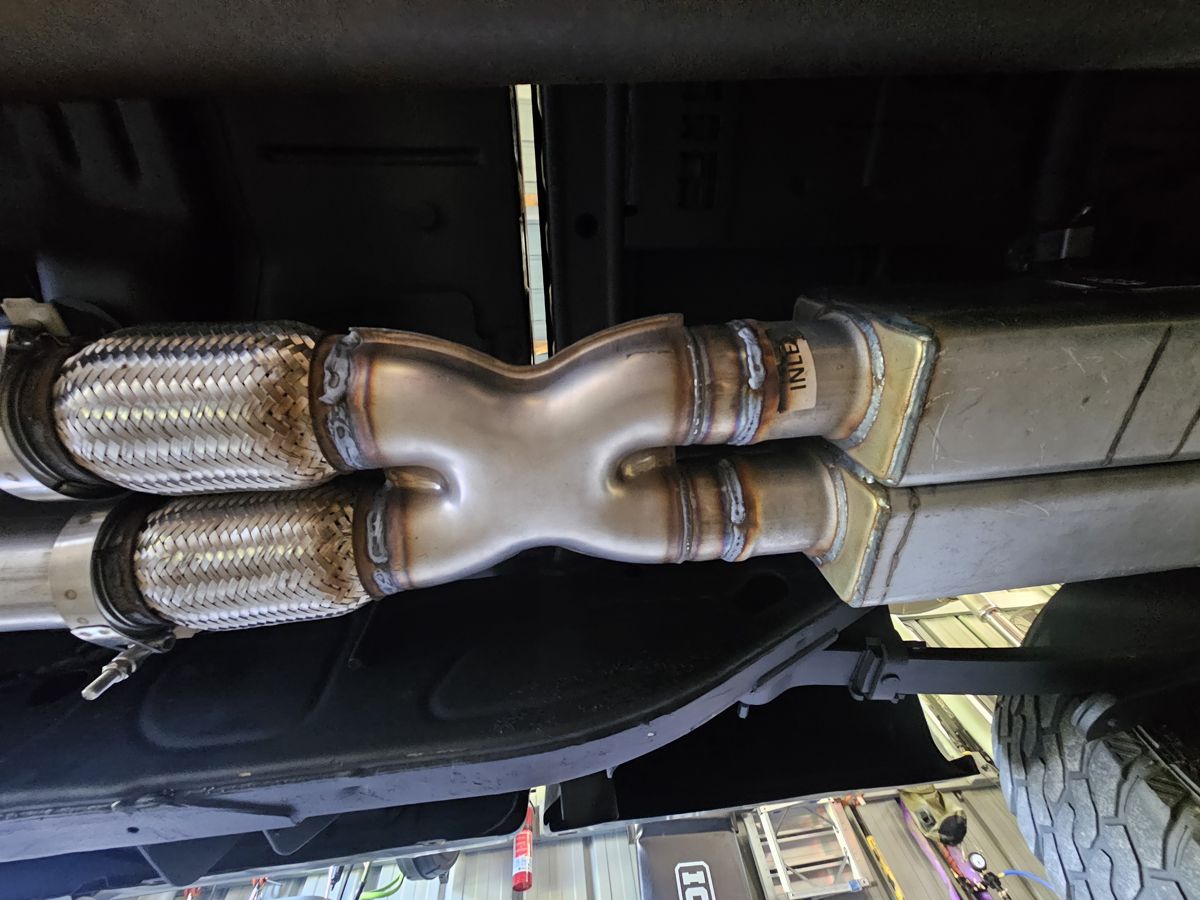

Flex pipes into the X-pipe
Flex pipes into the X-pipe

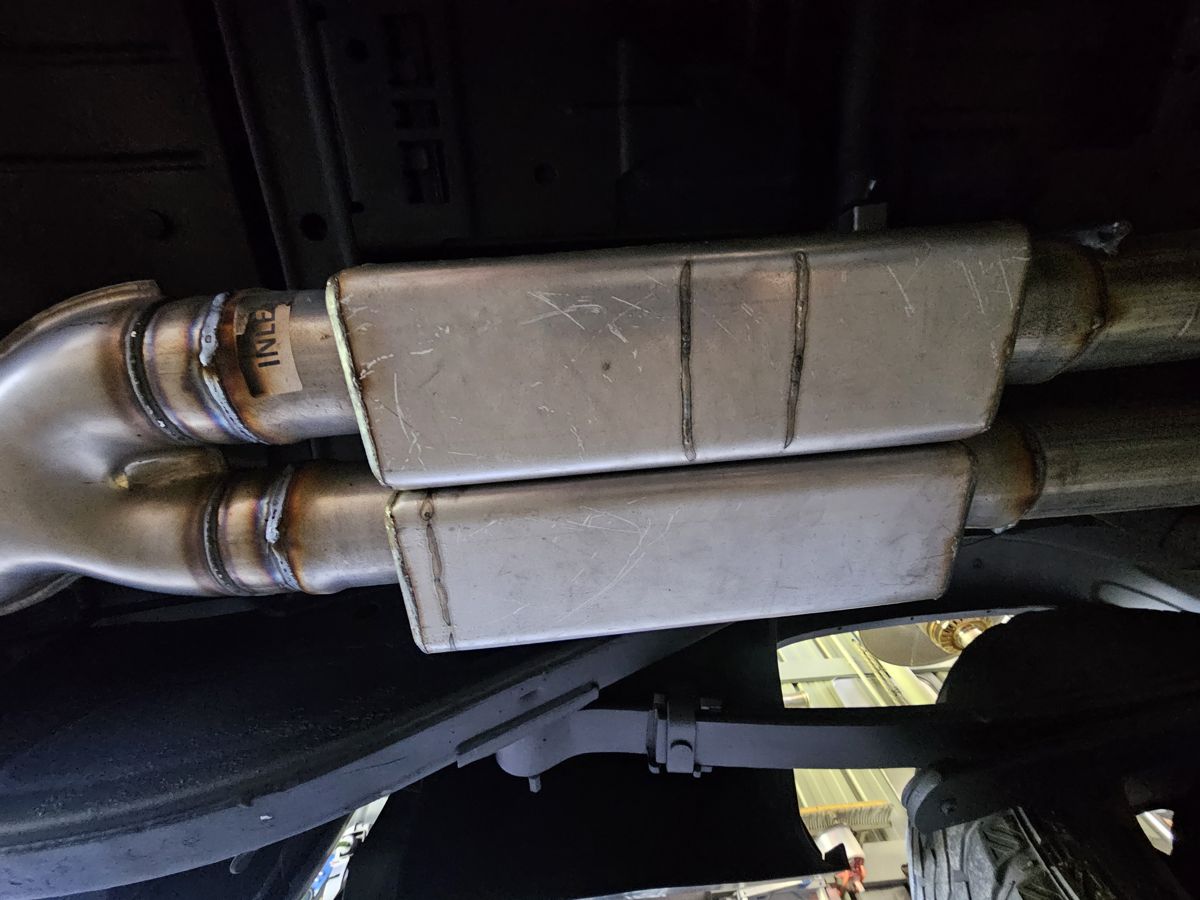

X-pipe into the Spintech mufflers
X-pipe into the Spintech mufflers

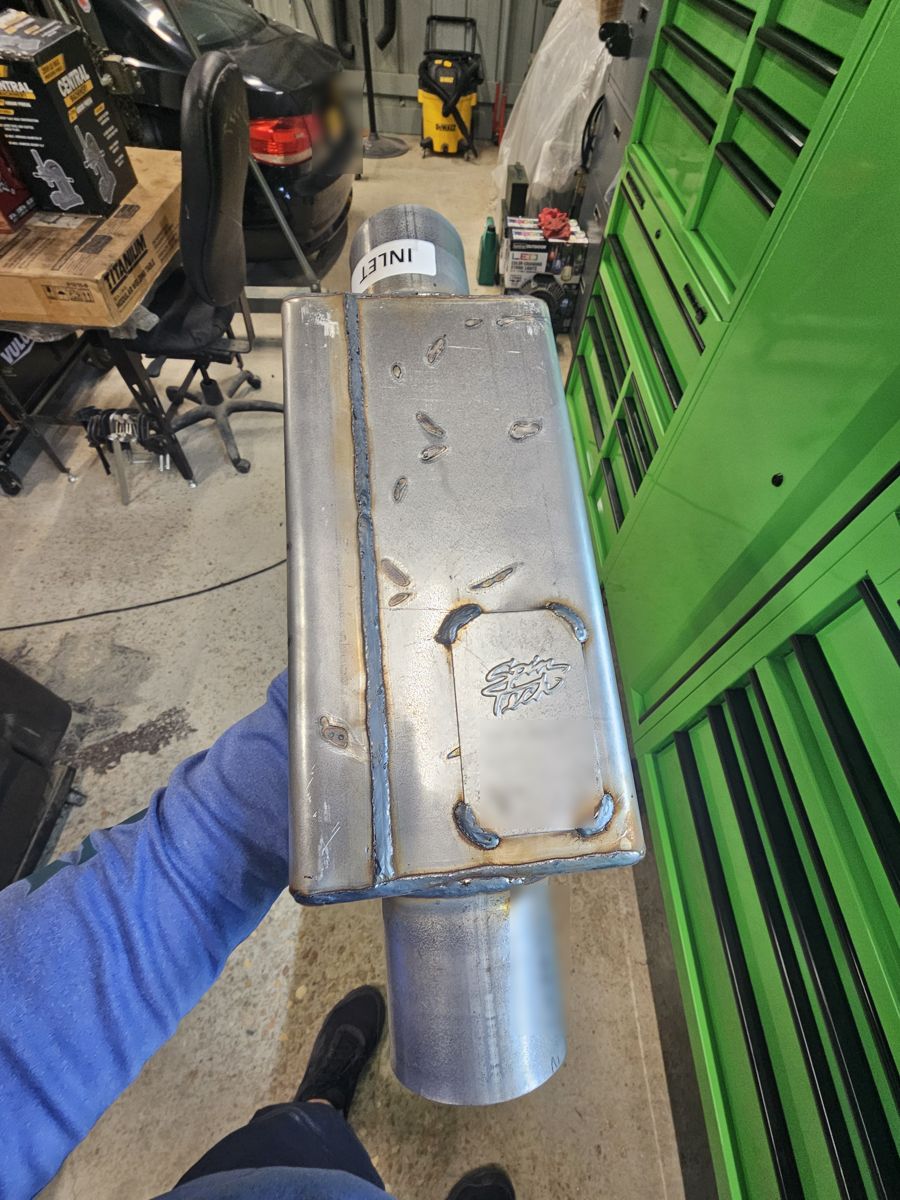

Spintech muffler before install
Spintech muffler before install

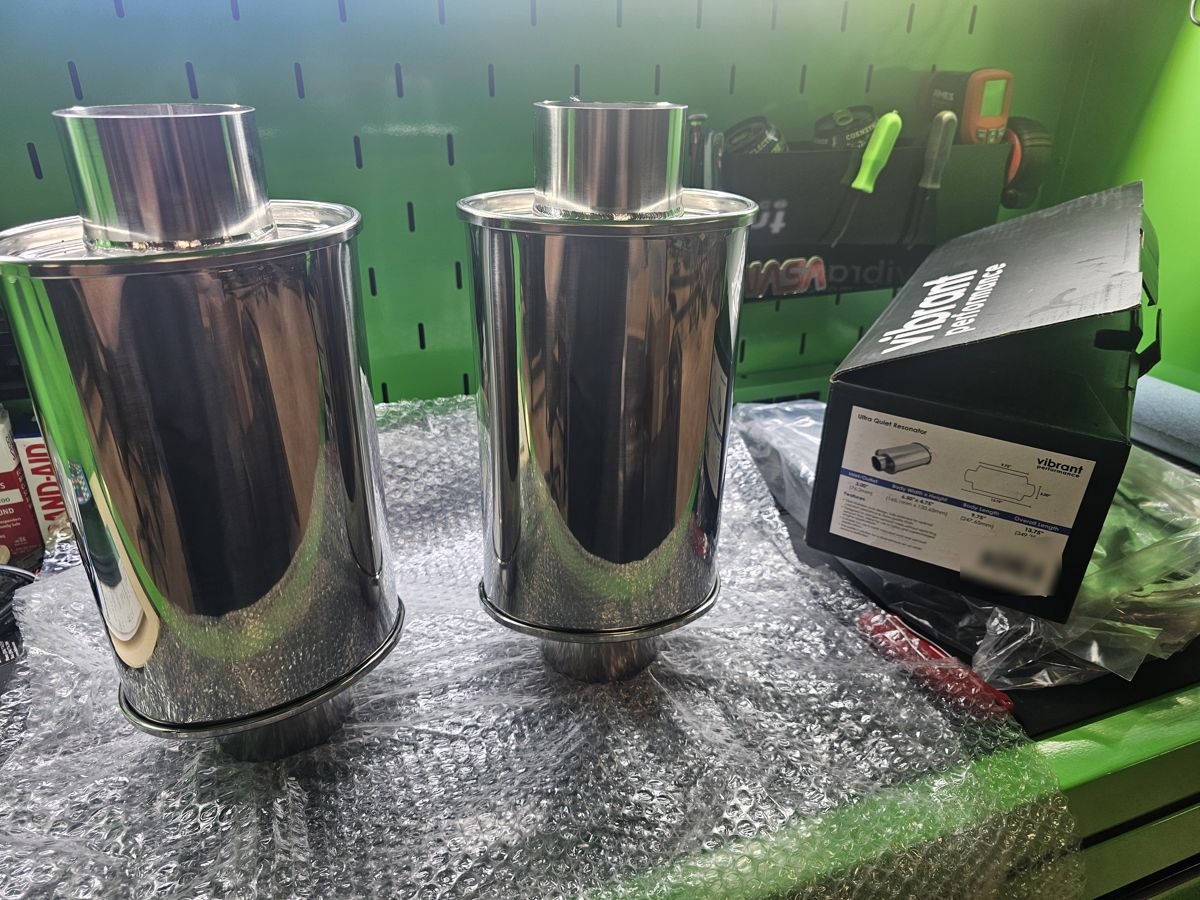

Vibrant Ultra Quiet resonators
Vibrant Ultra Quiet resonators

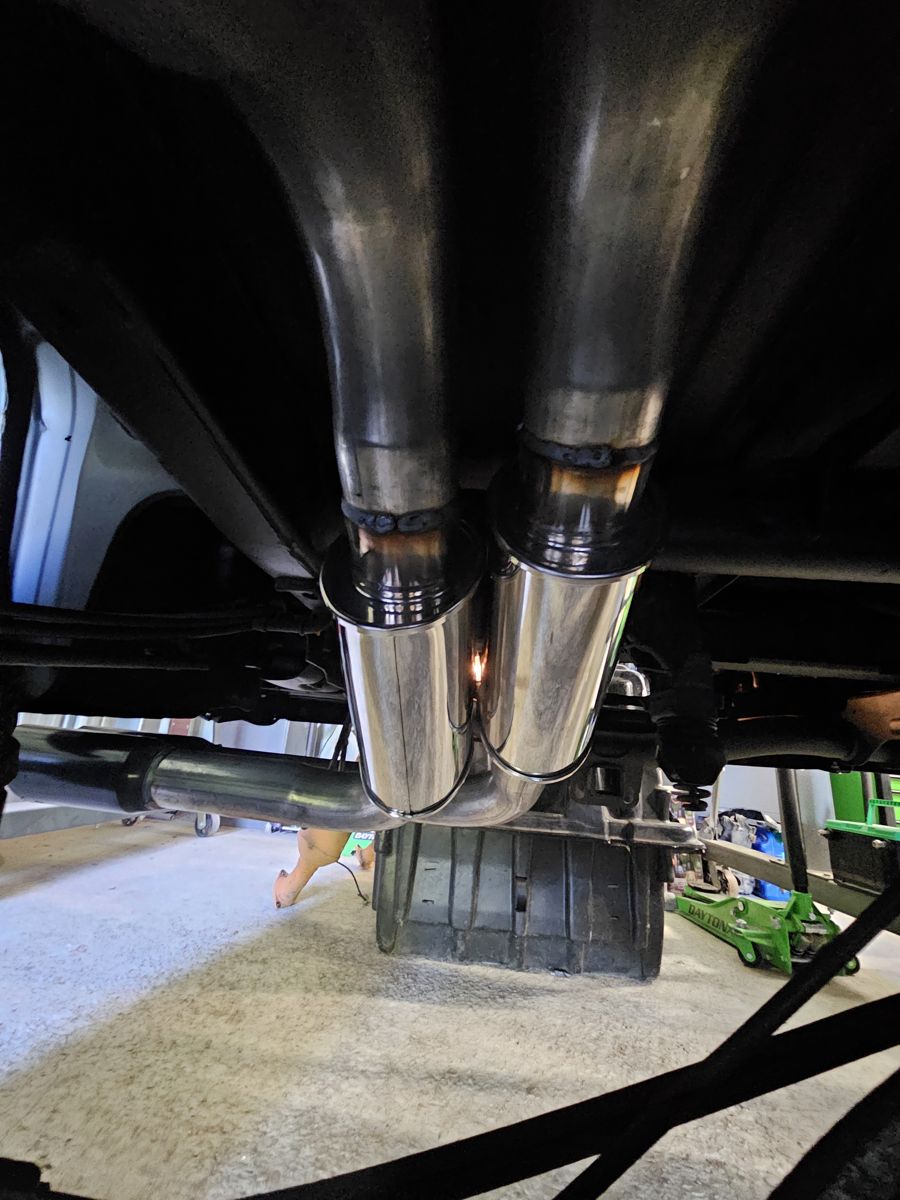

Resonators installed at the rear
Resonators installed at the rear

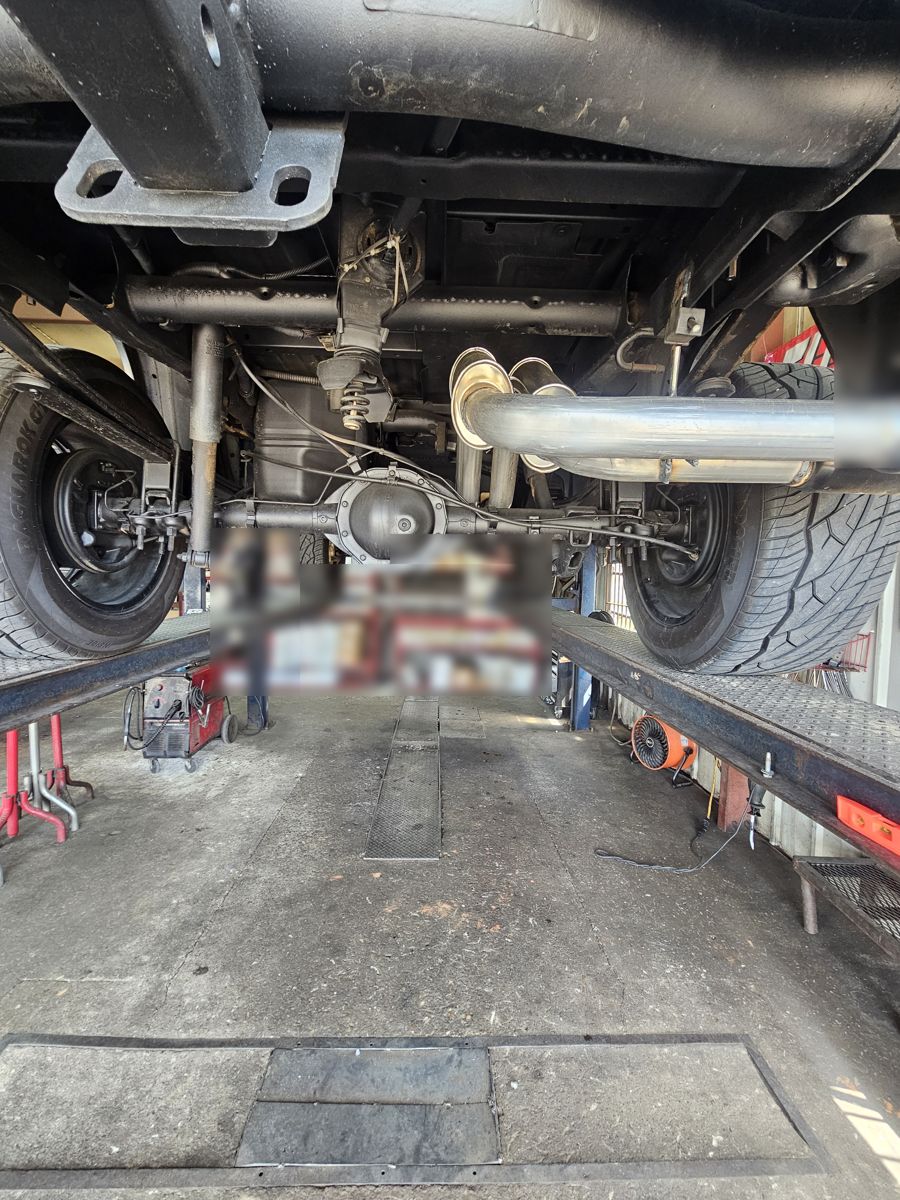

Exhaust routed over the rear axle to the tips
Exhaust routed over the rear axle to the tips

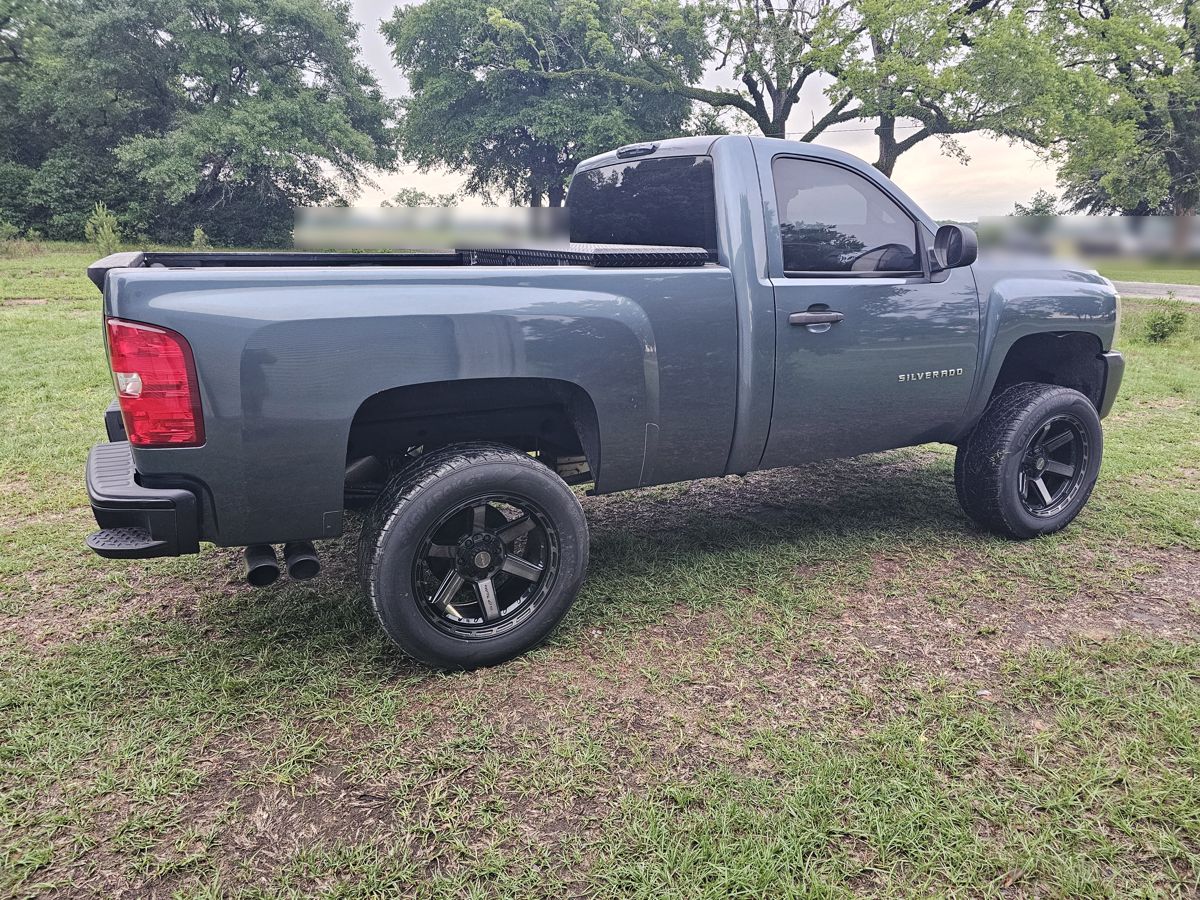

Dual 4" black tips out the back
Dual 4" black tips out the back
Transmission (4L60E)
  • JEGS cast aluminum deep transmission pan, 4 1/2 in. deep, adds 2 quarts (555-60173)
  • LubeLocker reusable transmission pan gasket (LLT-G4L60)
  • Custom transmission cooler lines with heat wrap
  • ICT Billet 6AN 3/8 in. transmission cooler disconnect fittings (F06ANTR37501)
  • Standard 40K transmission cooler
Builder's note: "The aftermarket LubeLocker gasket is like the newer reusable style and seals up nicely on this older 4L60E."
Builder's note: "The first cooler, from a diesel company, didn't cool the trans properly, so I installed a standard 40K trans cooler."
LubeLocker reusable pan gasket
LubeLocker reusable pan gasket
JEGS deep pan with the LubeLocker gasket
JEGS deep pan with the LubeLocker gasket
Deep pan installed, with the headers on either side
Deep pan installed, with the headers on either side
Deep pan and crossmember
Deep pan and crossmember
Heat-wrapped cooler lines along the trans
Heat-wrapped cooler lines along the trans
Underside view: deep pan, headers and cooler lines
Underside view: deep pan, headers and cooler lines
ICT Billet 6AN cooler disconnect (into radiator)
ICT Billet 6AN cooler disconnect (into radiator)
Transmission cooler mounted ahead of the radiator
Transmission cooler mounted ahead of the radiator
Exterior
  • Chevy 2500HD hood (bought used off Facebook Marketplace)
  • Tip: the 1500 and 2500HD hood insulation panels aren't the same. You can make the 1500 one fit, but for a clean stock look get a stock 2500HD insulation panel.
  • Factory-style fog lights added
  • All chrome trim painted black
  • 2014-2018 Silverado 1500 rear bumper from Amazon; fits nicely, per the builder
  • White LED black/gold bowtie grille emblem (2011-2013 HD style)
  • Sparksmith custom grille lighting
Grille lighting on the 2500HD grille
Front end apart
Front end apart
Front end apart, bumper off
Front end apart, bumper off
Back together: 2500HD hood and blacked-out trim
Back together: 2500HD hood and blacked-out trim
Lights on: fogs and grille light bar
Lights on: fogs and grille light bar
Factory-style fog light
Factory-style fog light

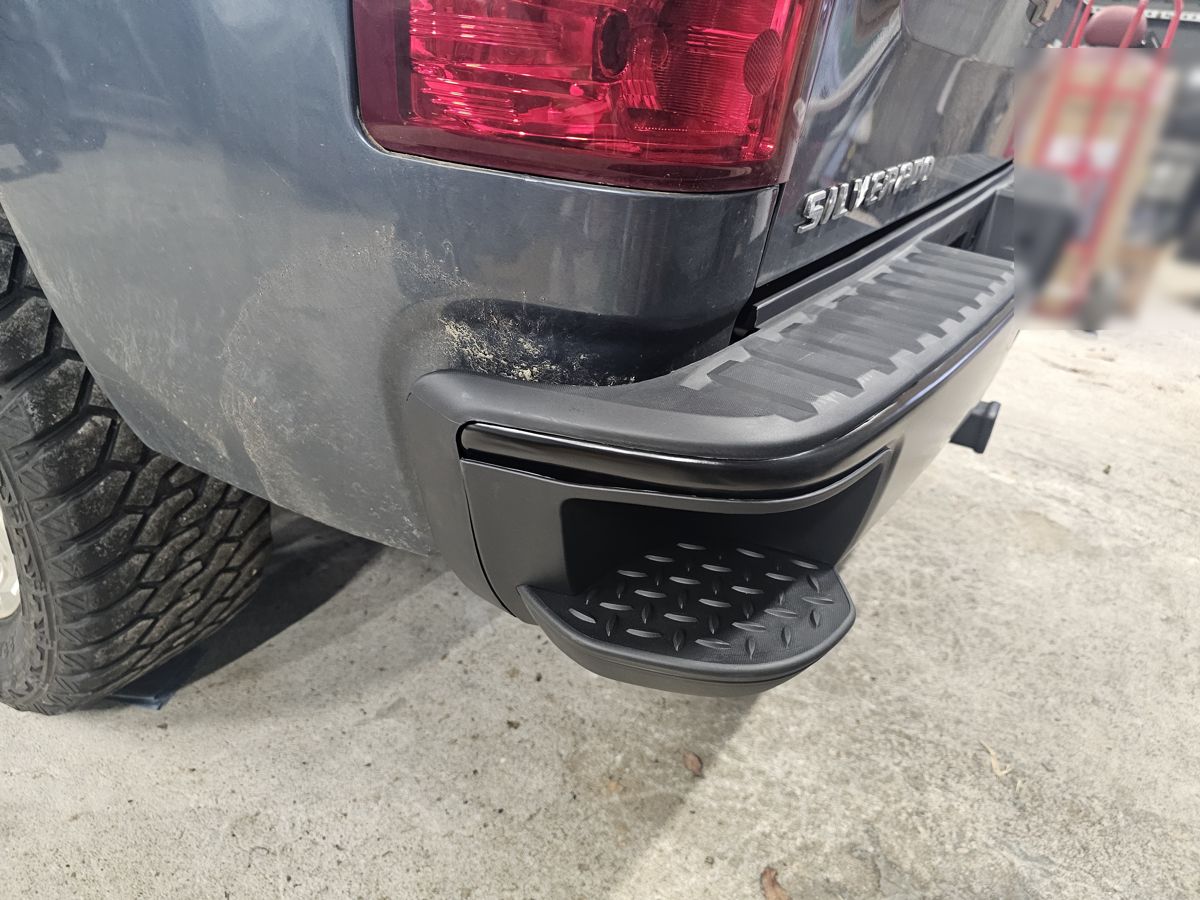

2014-2018 1500 rear bumper, driver corner
2014-2018 1500 rear bumper, driver corner

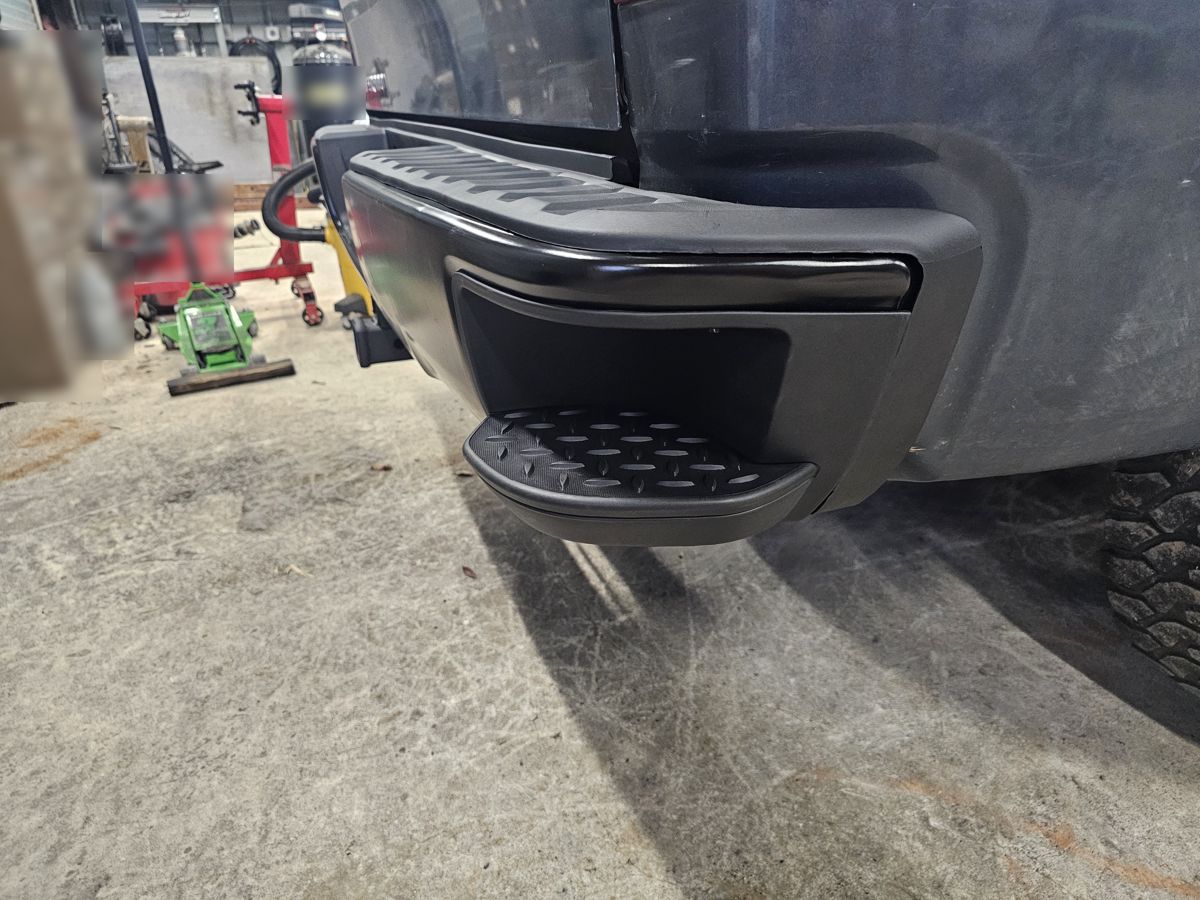

Corner step on the newer bumper
Corner step on the newer bumper

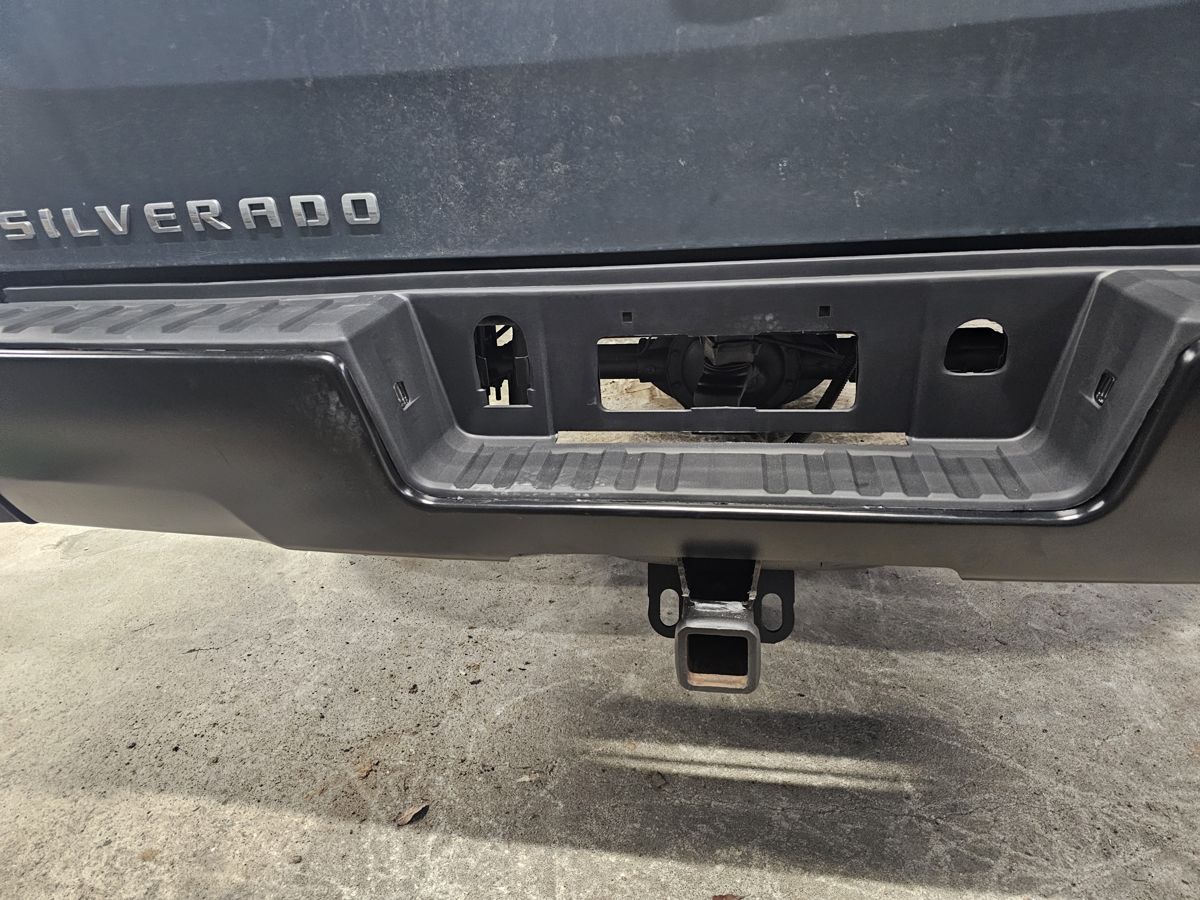

Bumper center with the hitch, plate removed
Bumper center with the hitch, plate removed
Interior
  • Seats and center console from a 2014+ Silverado
  • Custom seat brackets, built by the builder, so the 2014+ seats bolt in and the console works.
  • Prefer to buy them? OBS Outpost sells T1XX seat bracket sets and a T1XX console adapter for 1999-2013 GMT800/900 trucks.
  • Boost Auto 2020 Style GM Key Fob Retrofit (upgraded key fob)

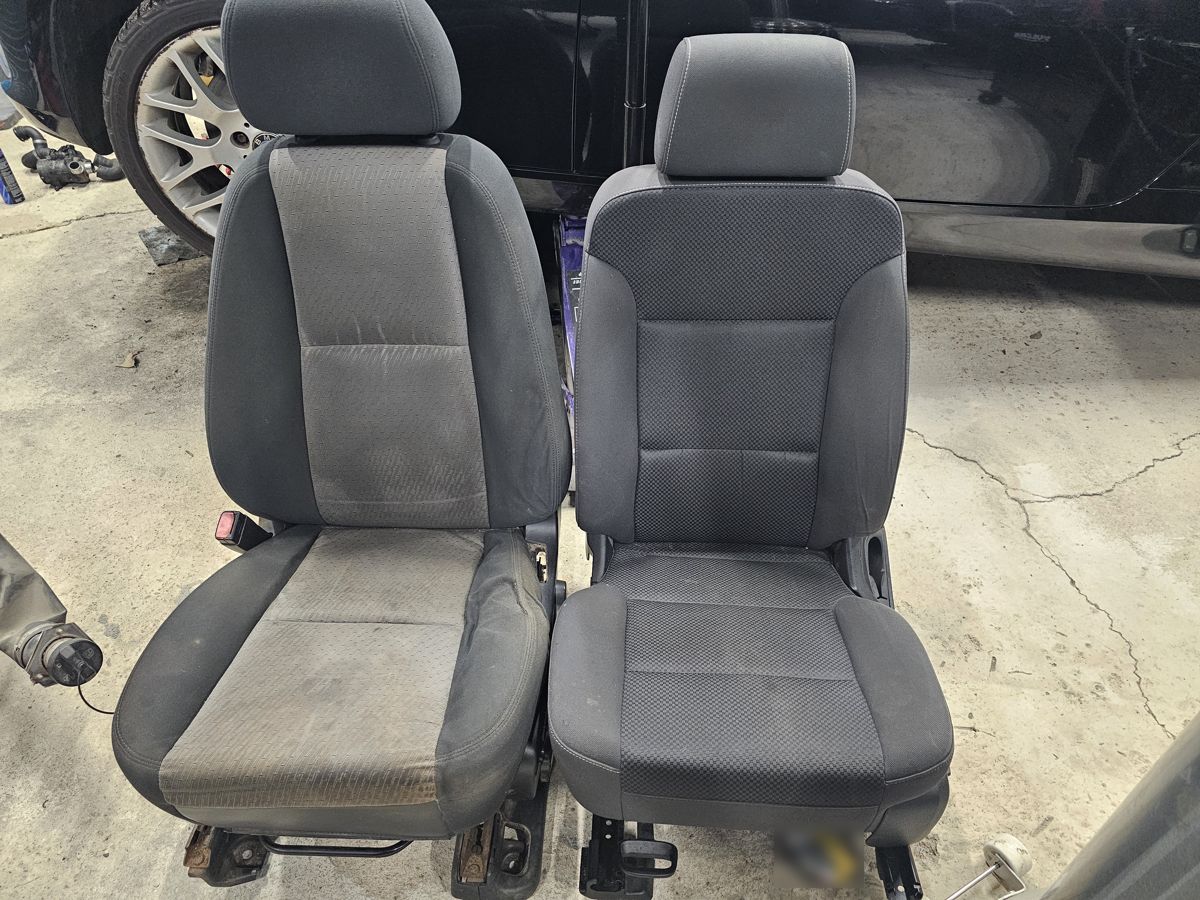

Old 2008 seat vs. 2014+ seat
Old 2008 seat vs. 2014+ seat

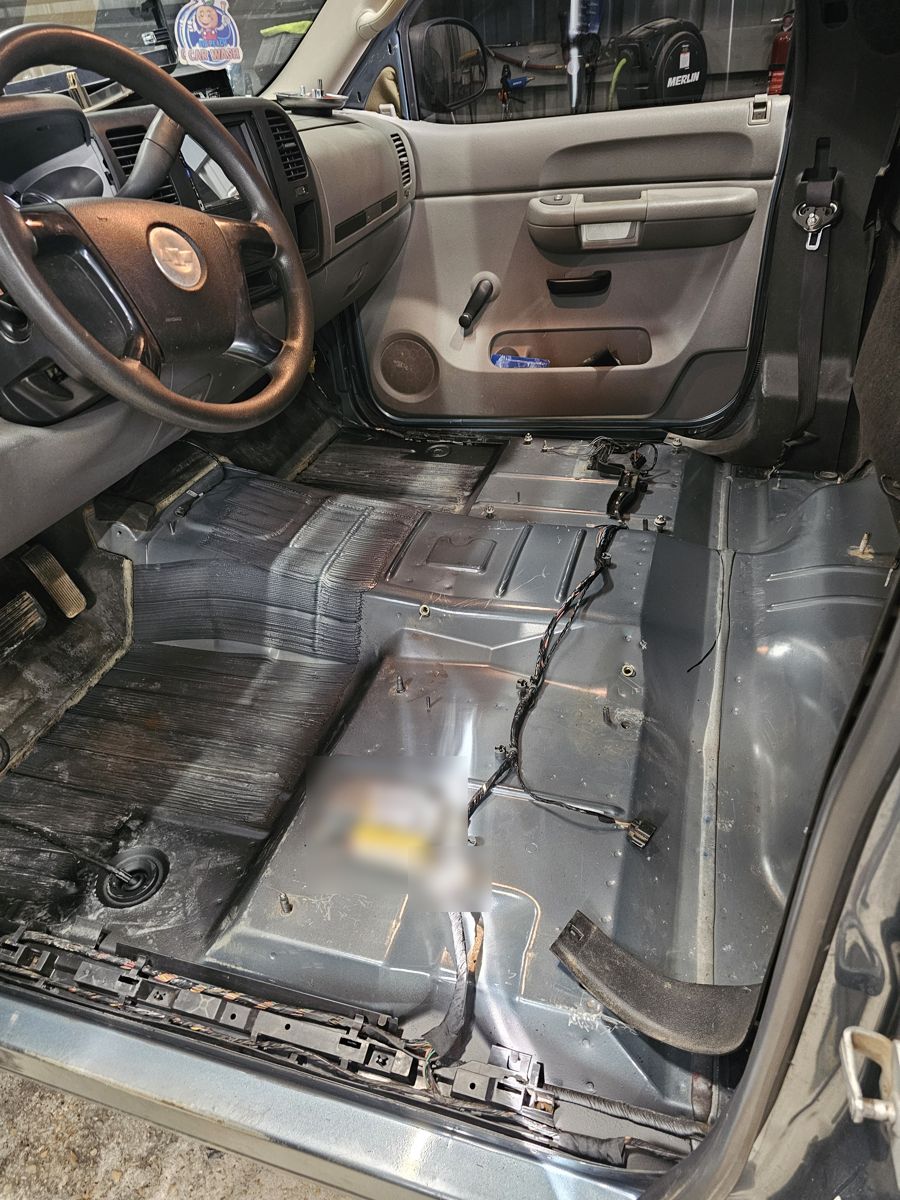

Old seats out, floor stripped
Old seats out, floor stripped

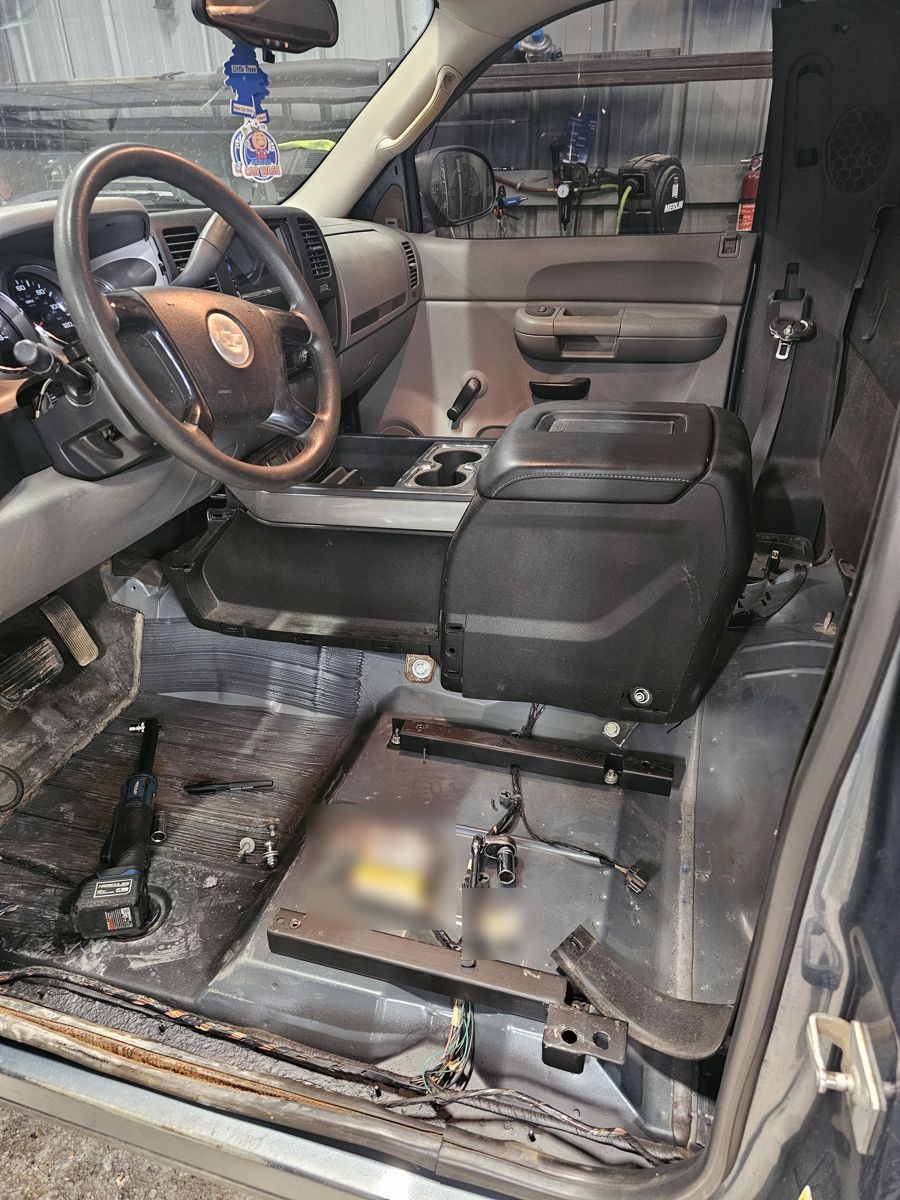

Test-fitting the 2014+ center console
Test-fitting the 2014+ center console

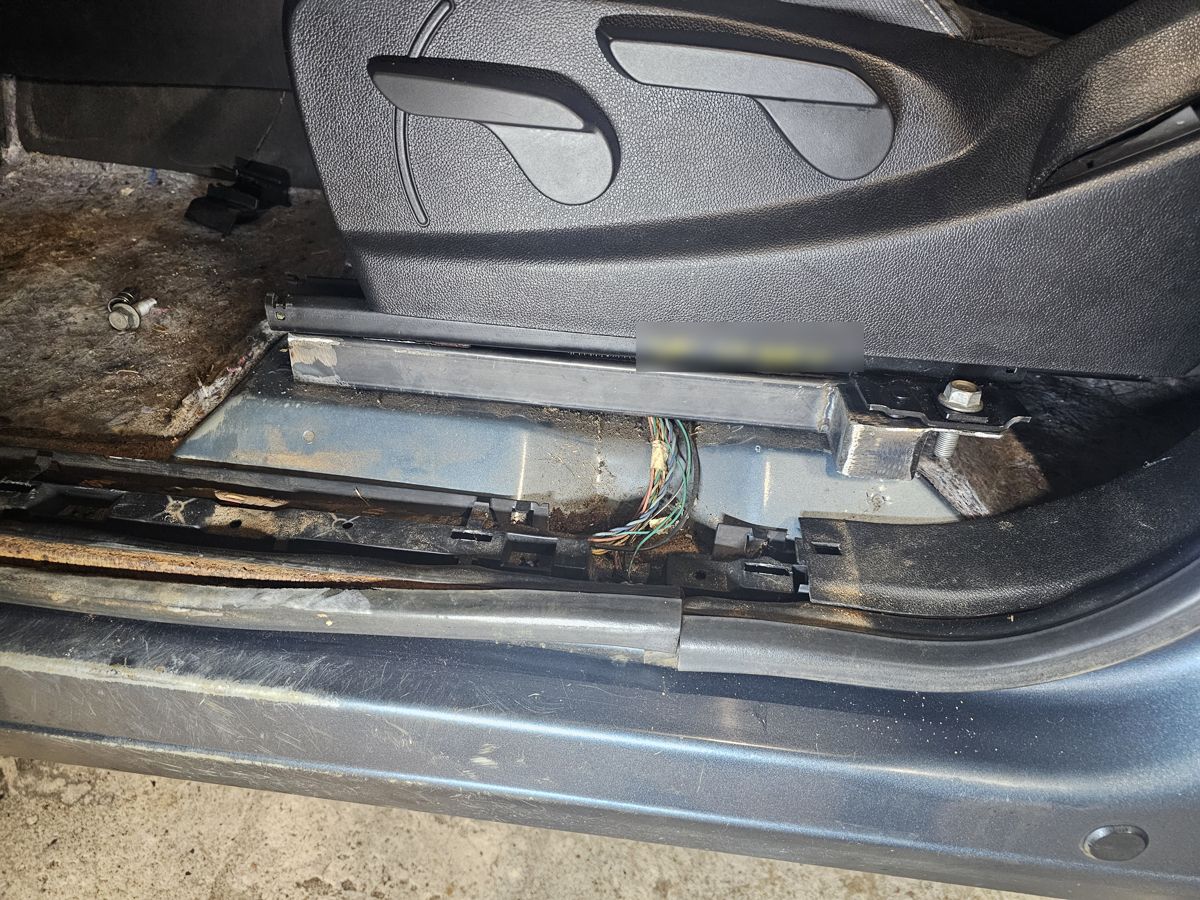

Homemade seat bracket bolted in
Homemade seat bracket bolted in

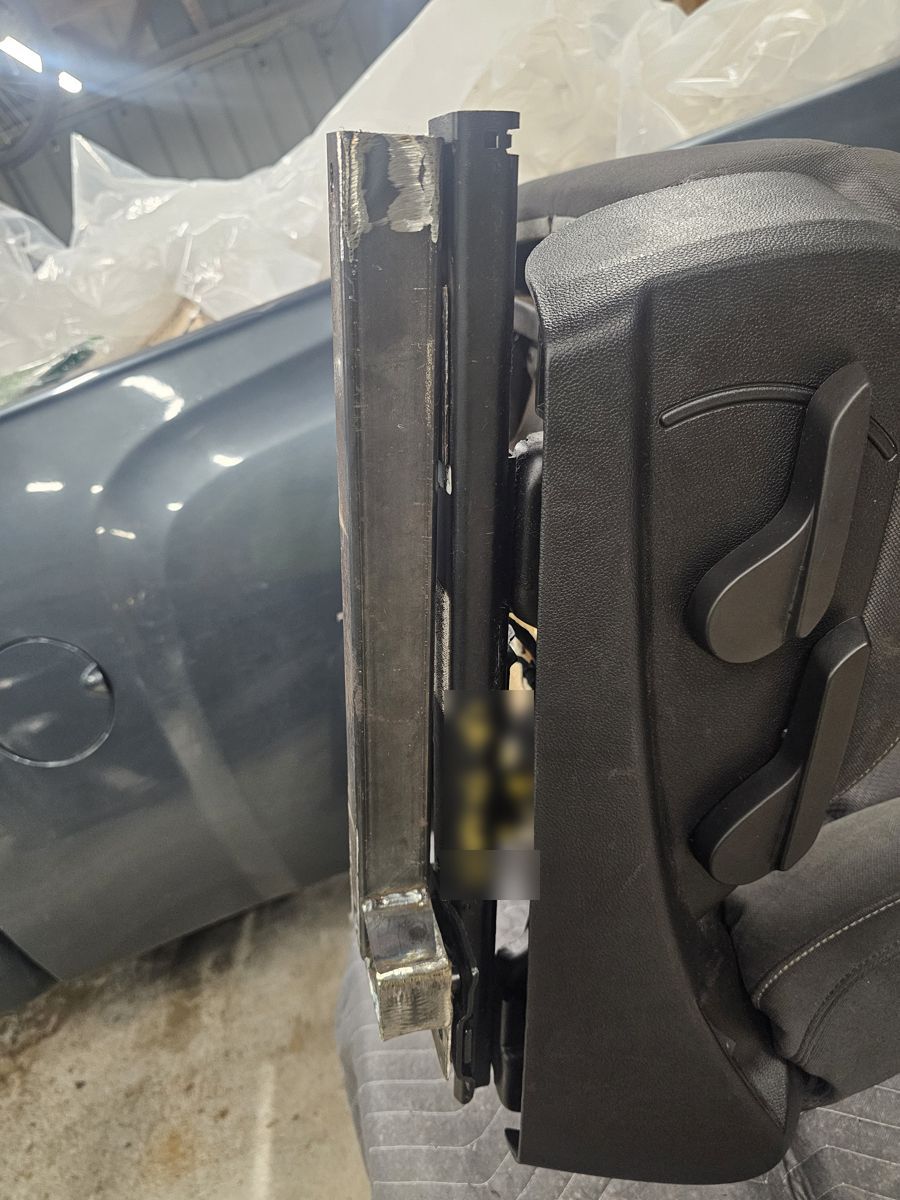

Homemade bracket welded to the seat rail
Homemade bracket welded to the seat rail

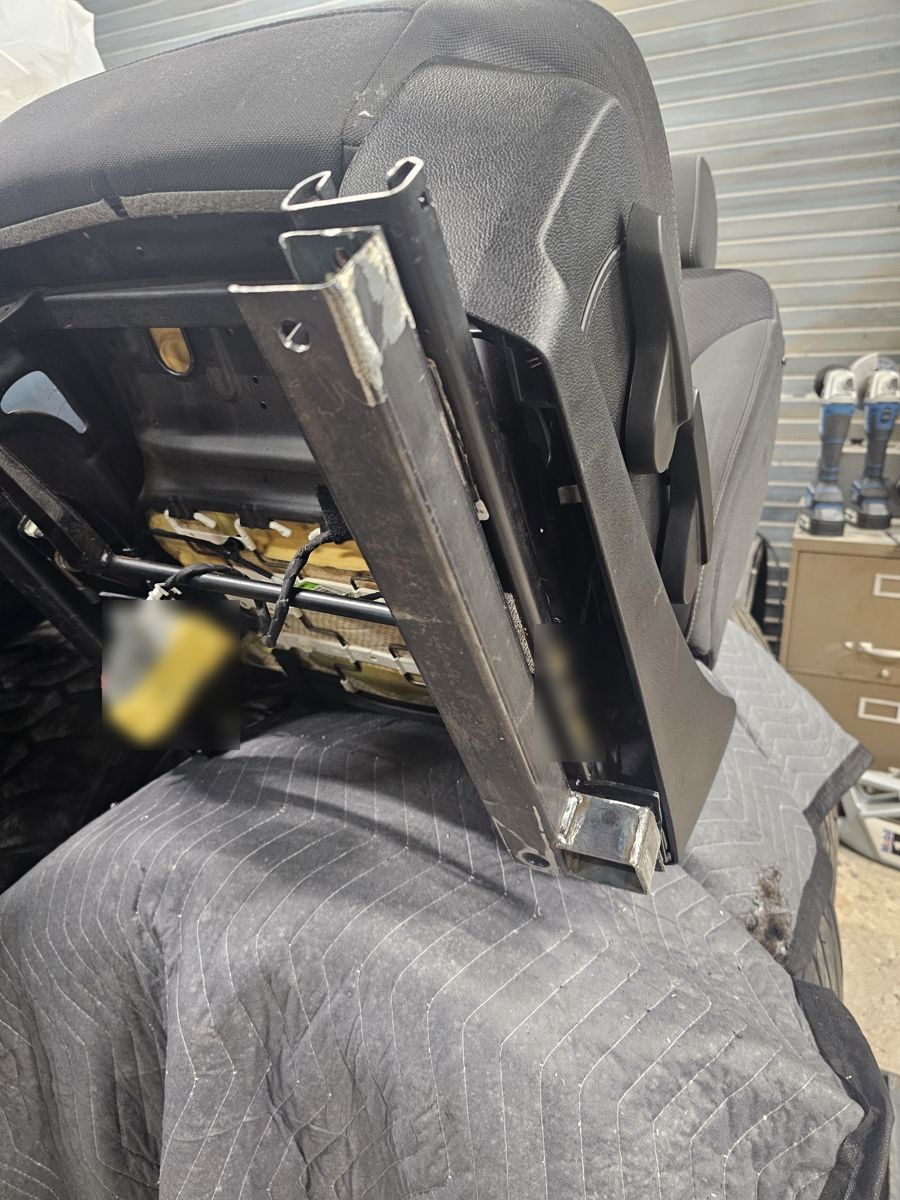

Seat bracket from underneath
Seat bracket from underneath

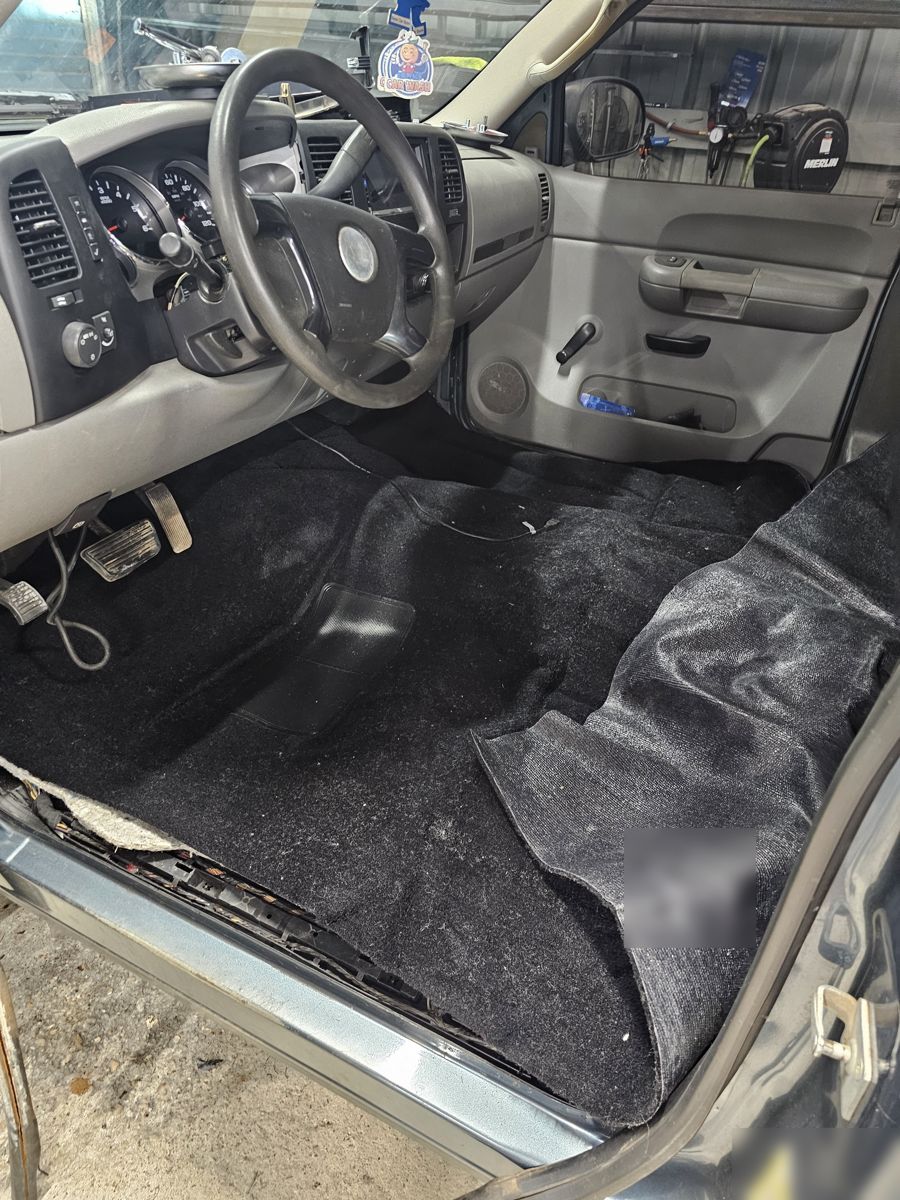

Carpet back in
Carpet back in

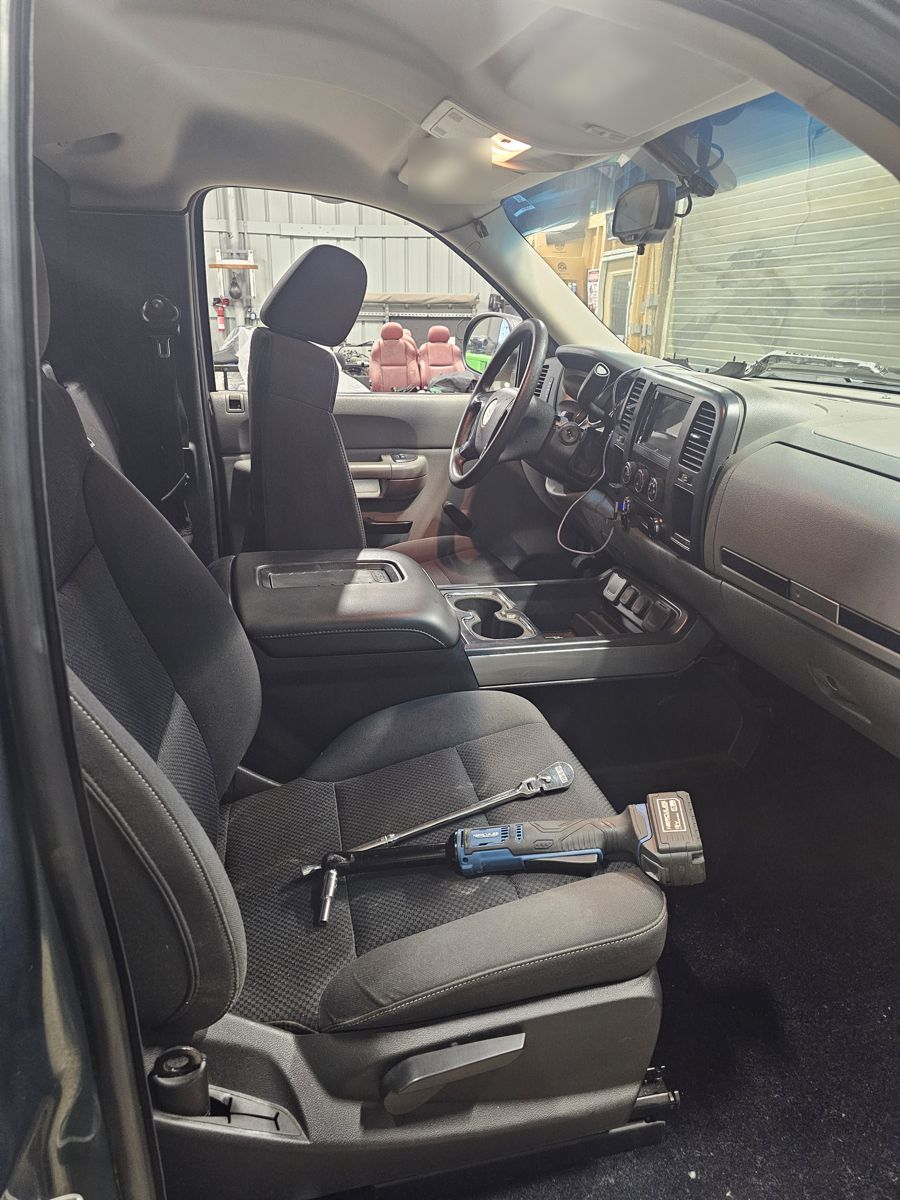

2014+ seats and console installed
2014+ seats and console installed

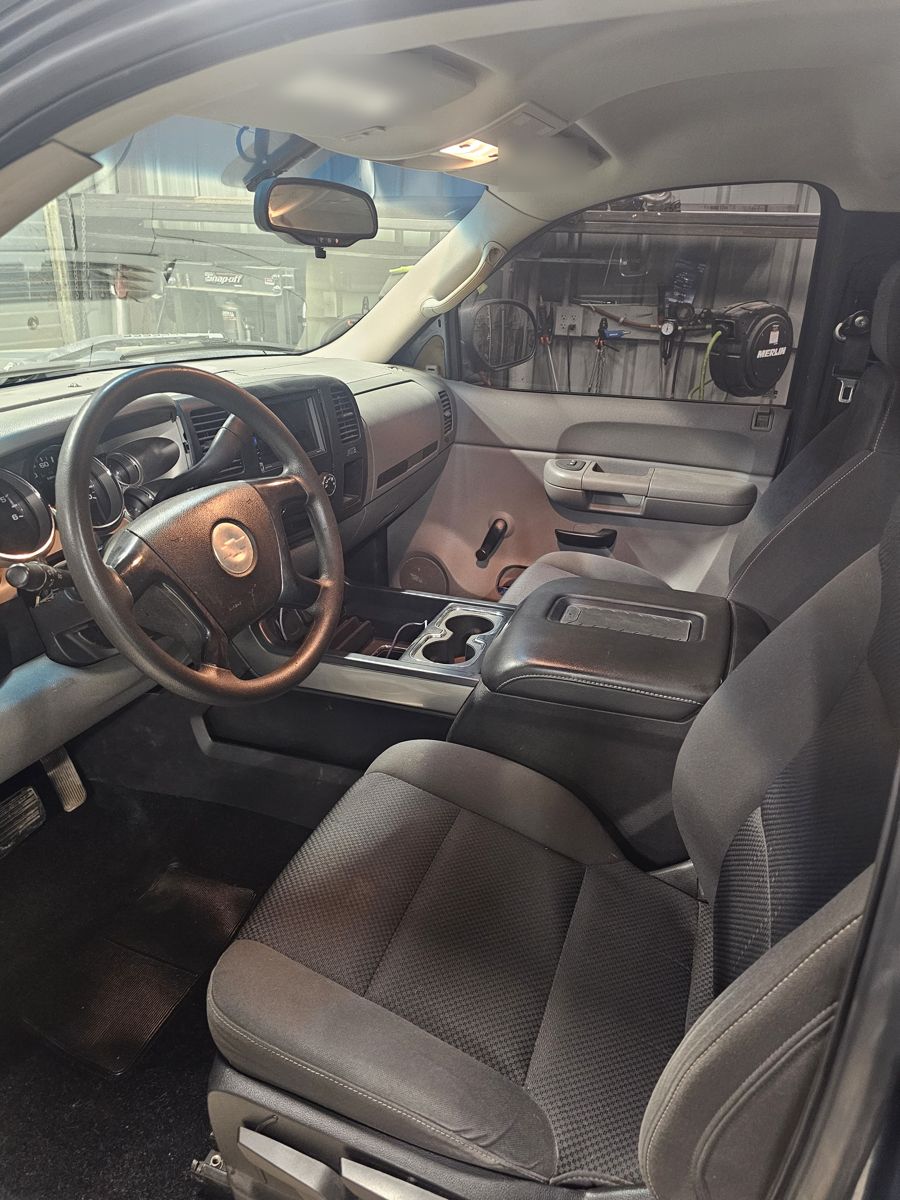

Driver side, finished
Driver side, finished
Underbody
  • Cleaned up the whole underside of the truck
  • Coated with Rust-Oleum Undercoating Pro Grade, rubberized black
  • Suspension Engineering engine cross bar (33-1144-BK) and 4L60E transmission crossmember (33-1064-BK), 2007-2013 Silverado/Sierra

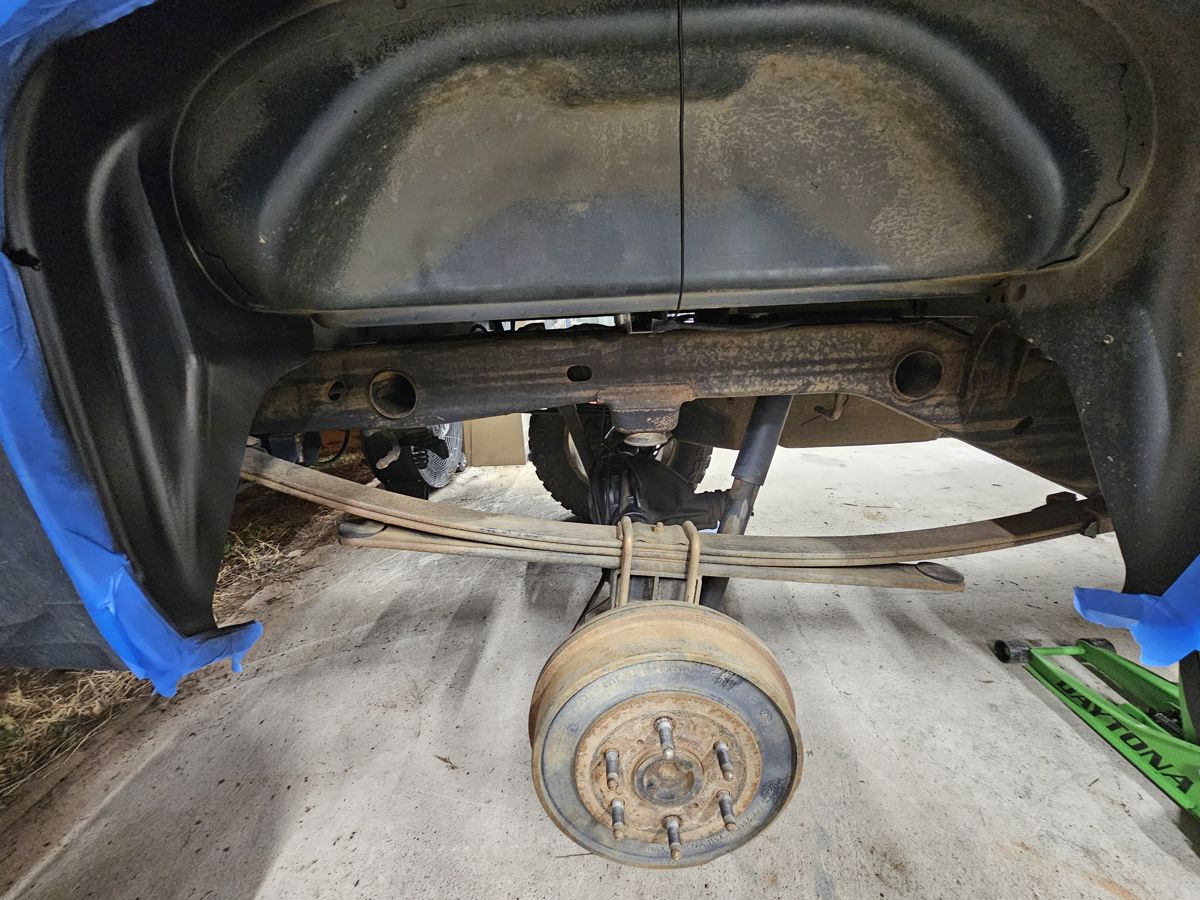

Before: rear wheel well, frame and leaf springs
Before: rear wheel well, frame and leaf springs

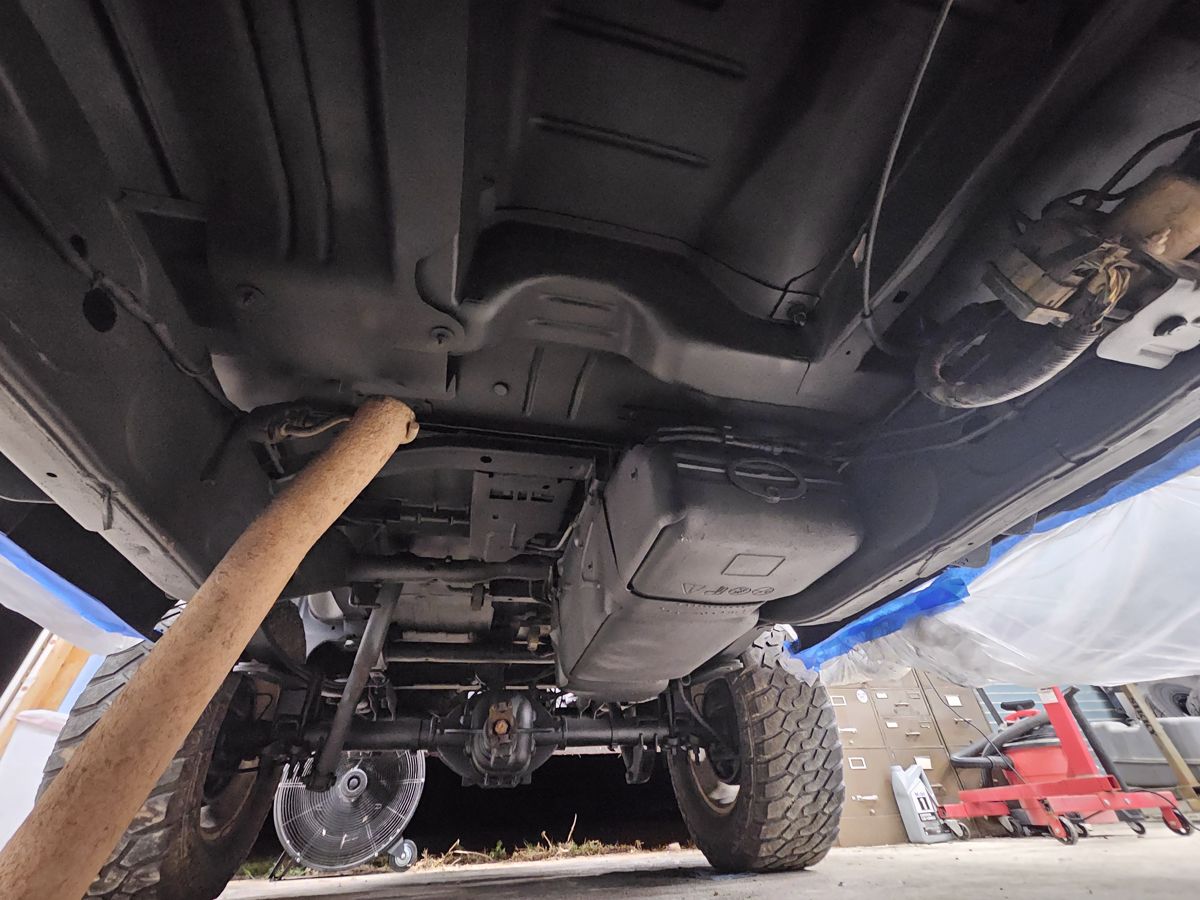

Underside during cleanup, masked off
Underside during cleanup, masked off

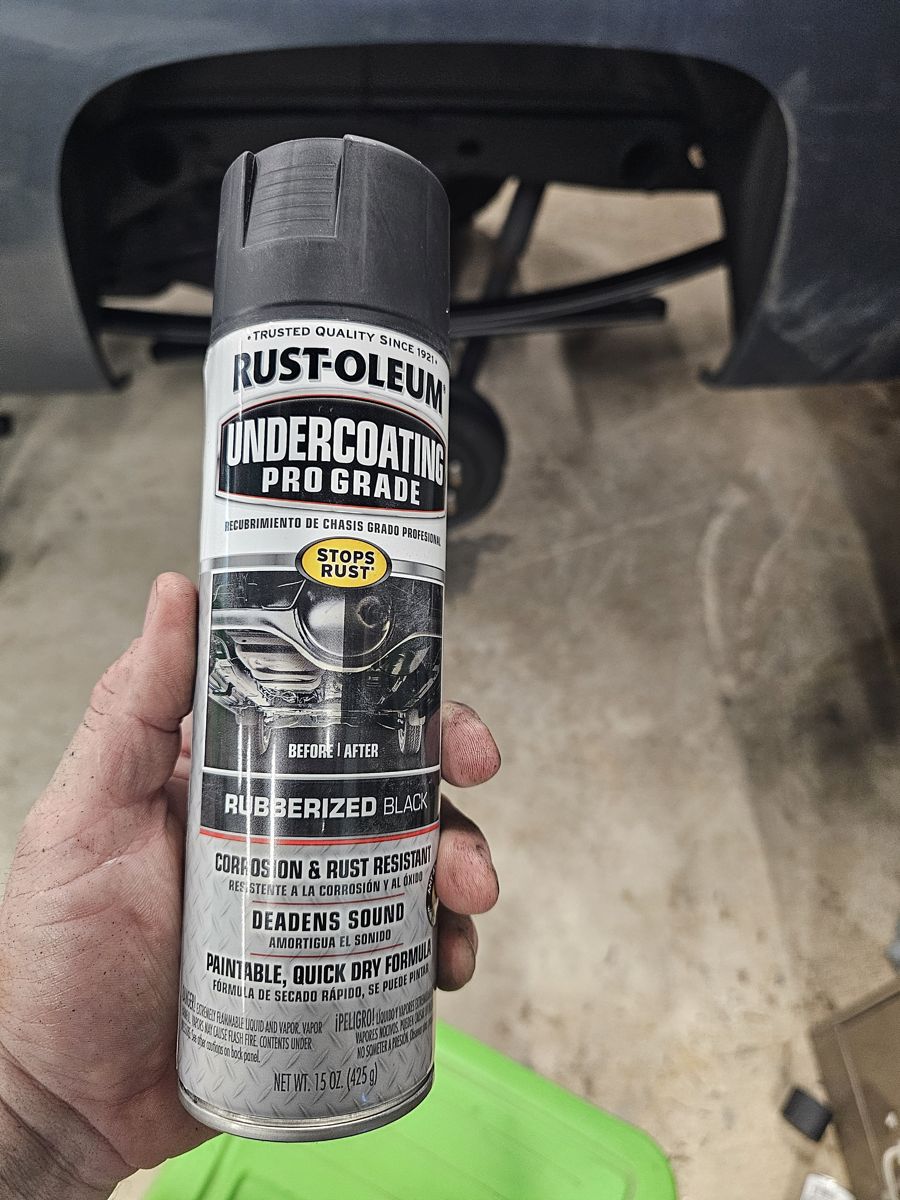

Rust-Oleum Pro Grade rubberized undercoating
Rust-Oleum Pro Grade rubberized undercoating

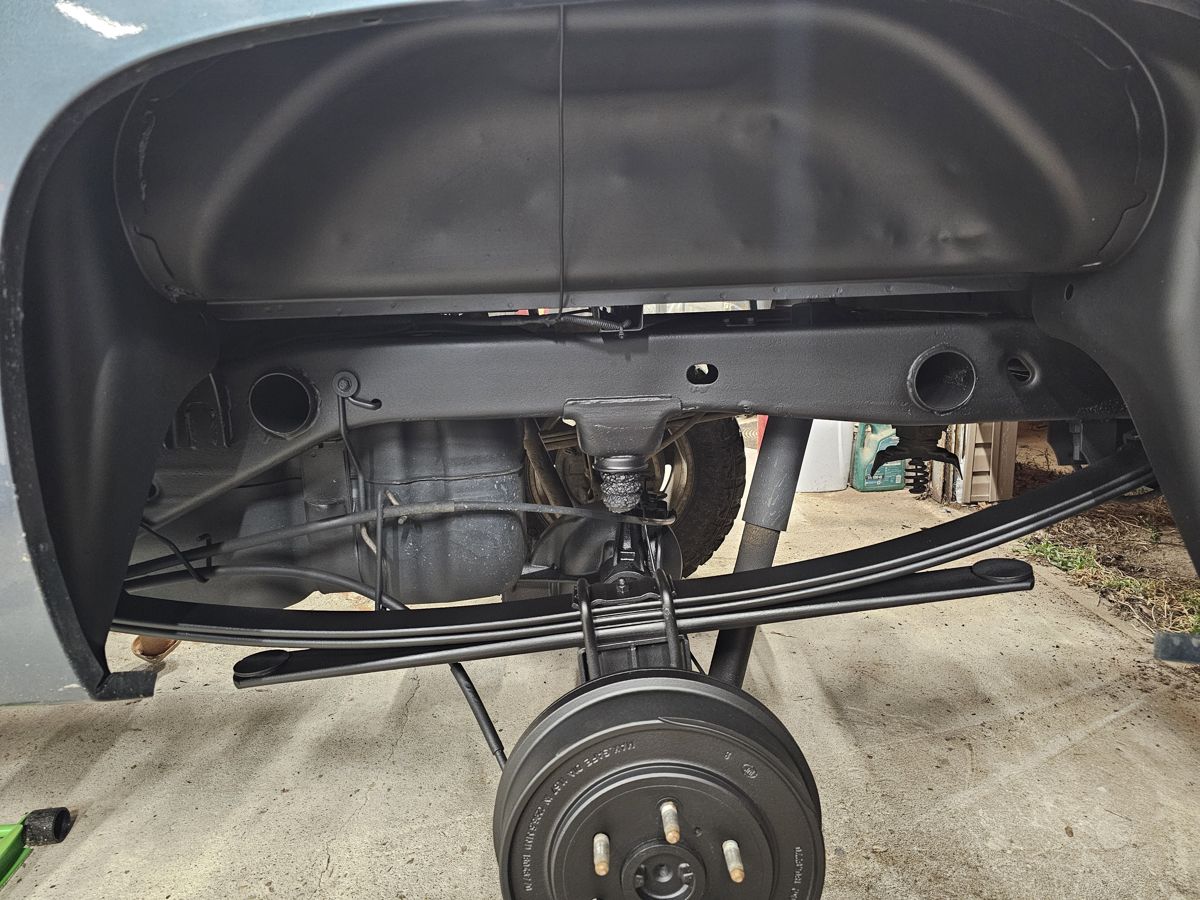

After: rear wheel well, frame and springs
After: rear wheel well, frame and springs

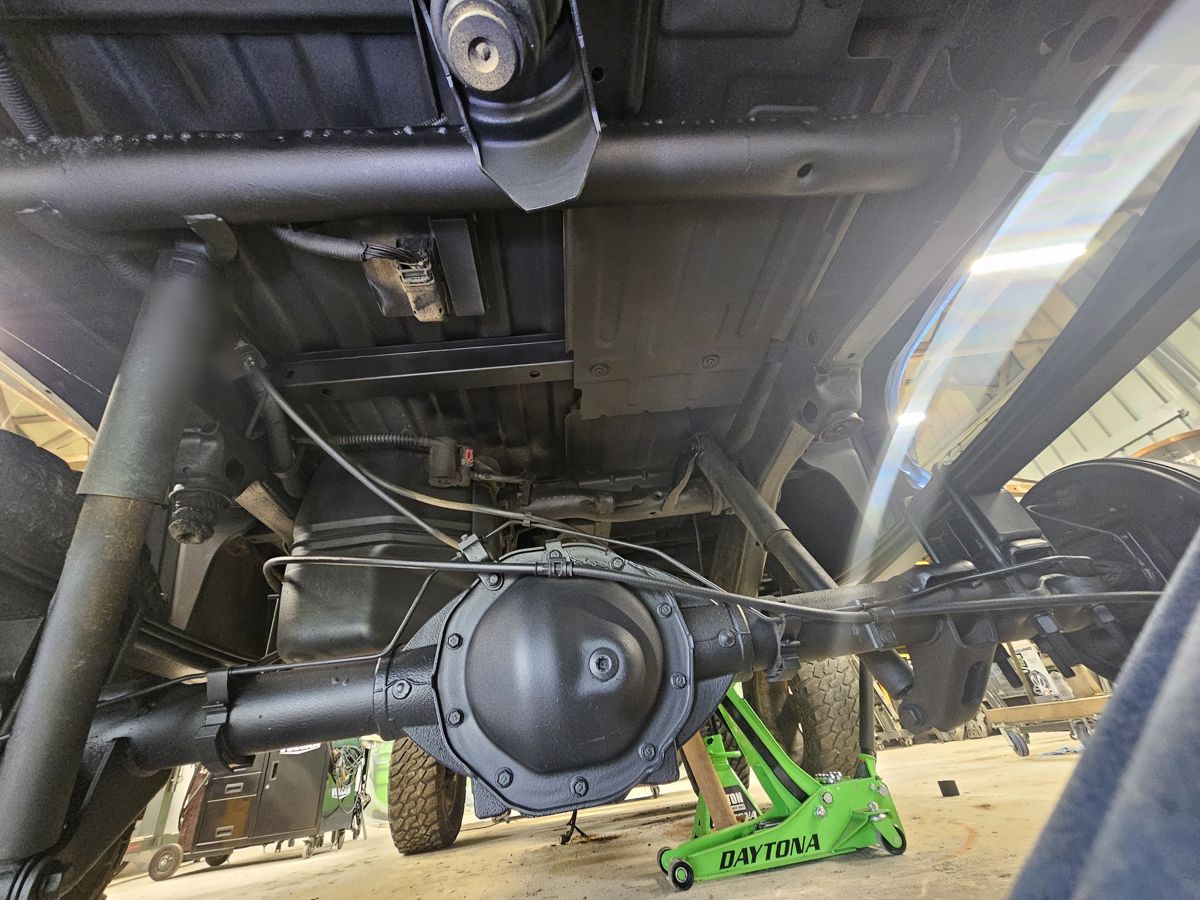

After: rear axle and underside
After: rear axle and underside

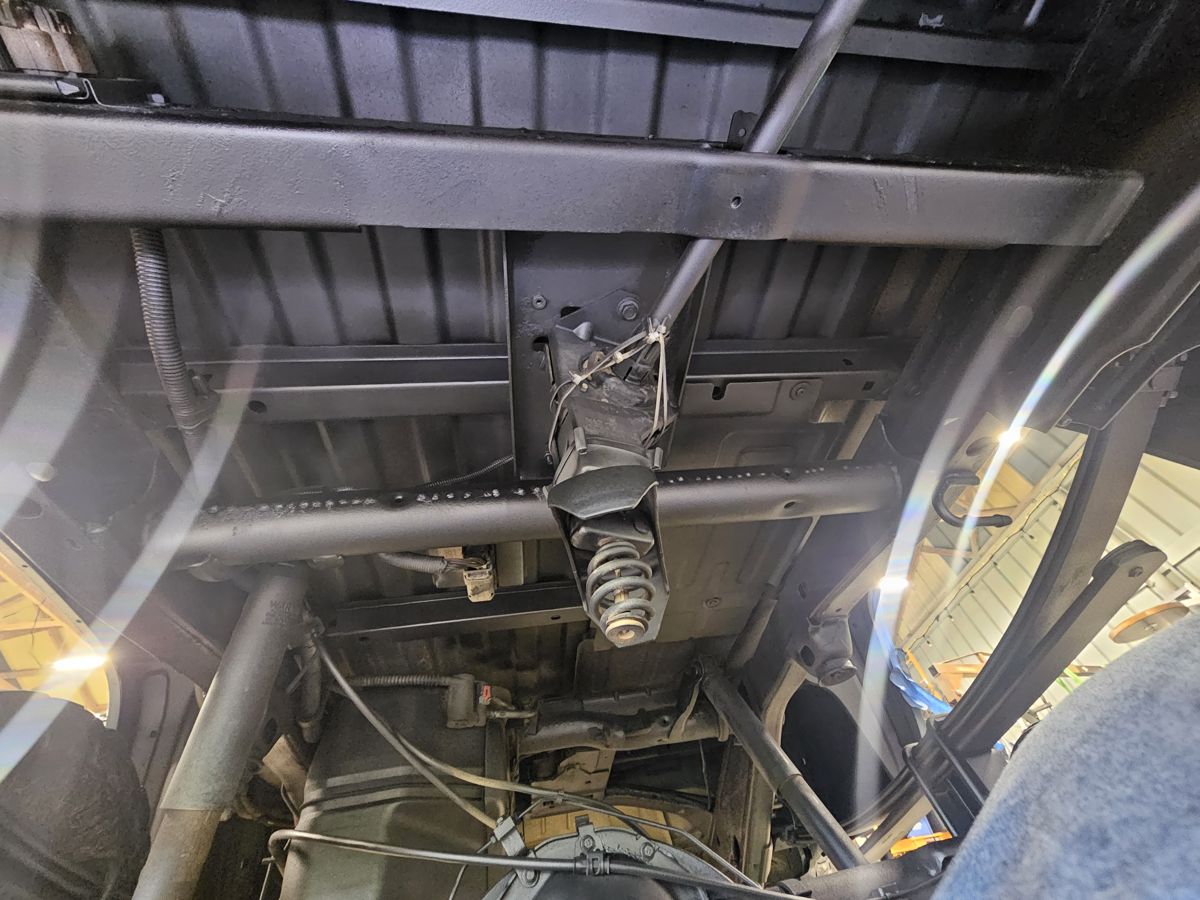

After: crossmember and cab floor
After: crossmember and cab floor

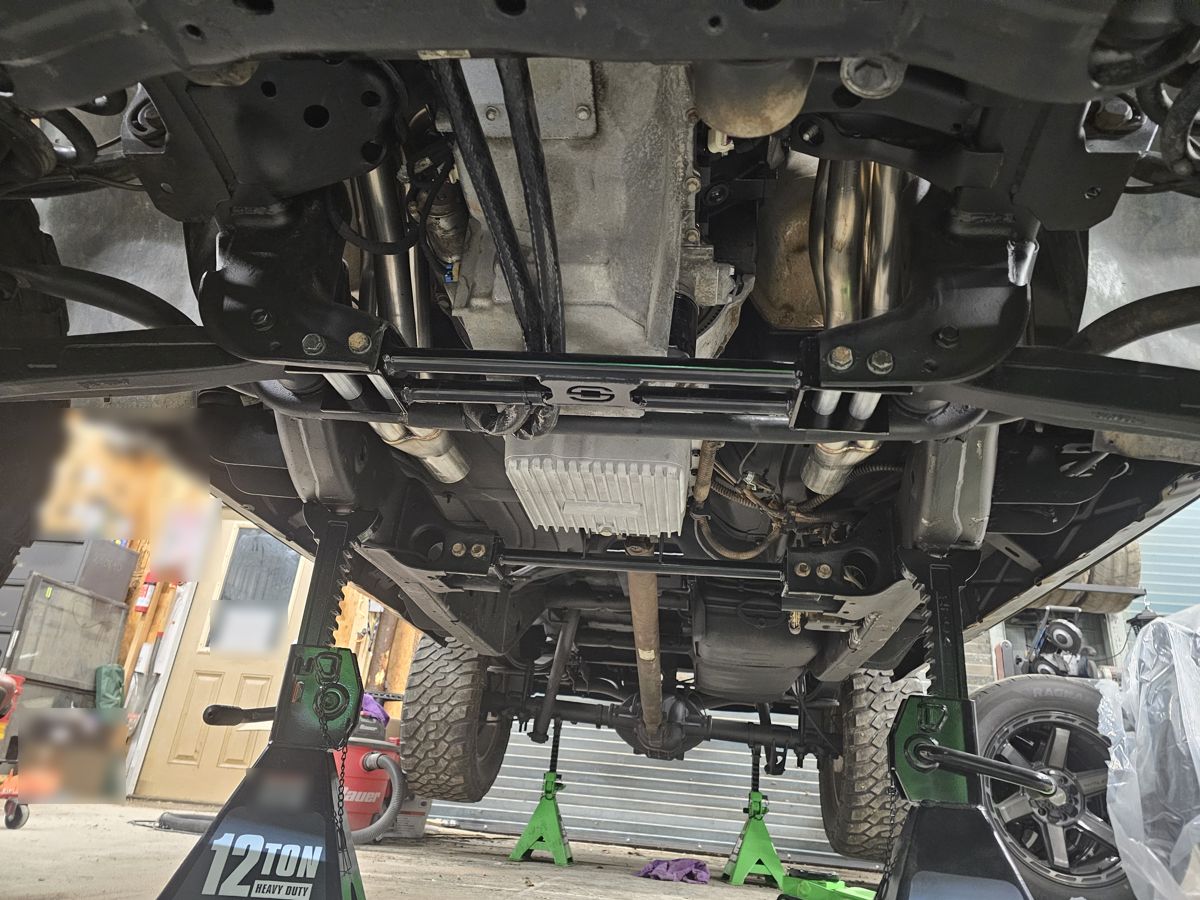

Suspension Engineering engine cross bar and trans crossmember
Suspension Engineering engine cross bar and trans crossmember
Brakes
  • Front 4-piston calipers from a 2019+ Silverado/Sierra 1500
  • Larger front rotors to match (drilled and slotted)
  • Washers used as spacers on the caliper mounts so the 4-piston caliper sits evenly over the rotor (the stock calipers are sliding 2-piston)
  • Extended brake hoses are sometimes recommended for this swap, but the stock hoses worked fine on this truck.

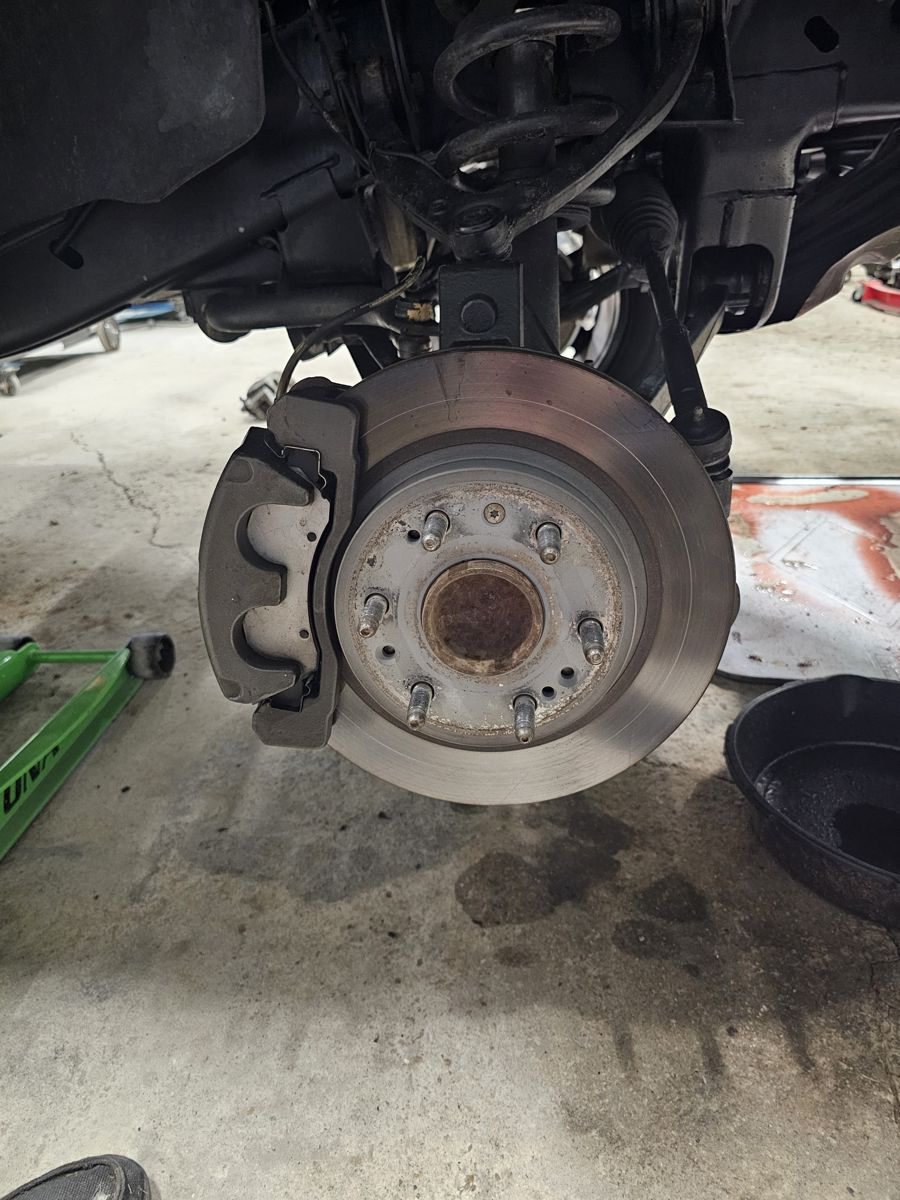

Before: stock 2-piston sliding caliper and rotor
Before: stock 2-piston sliding caliper and rotor

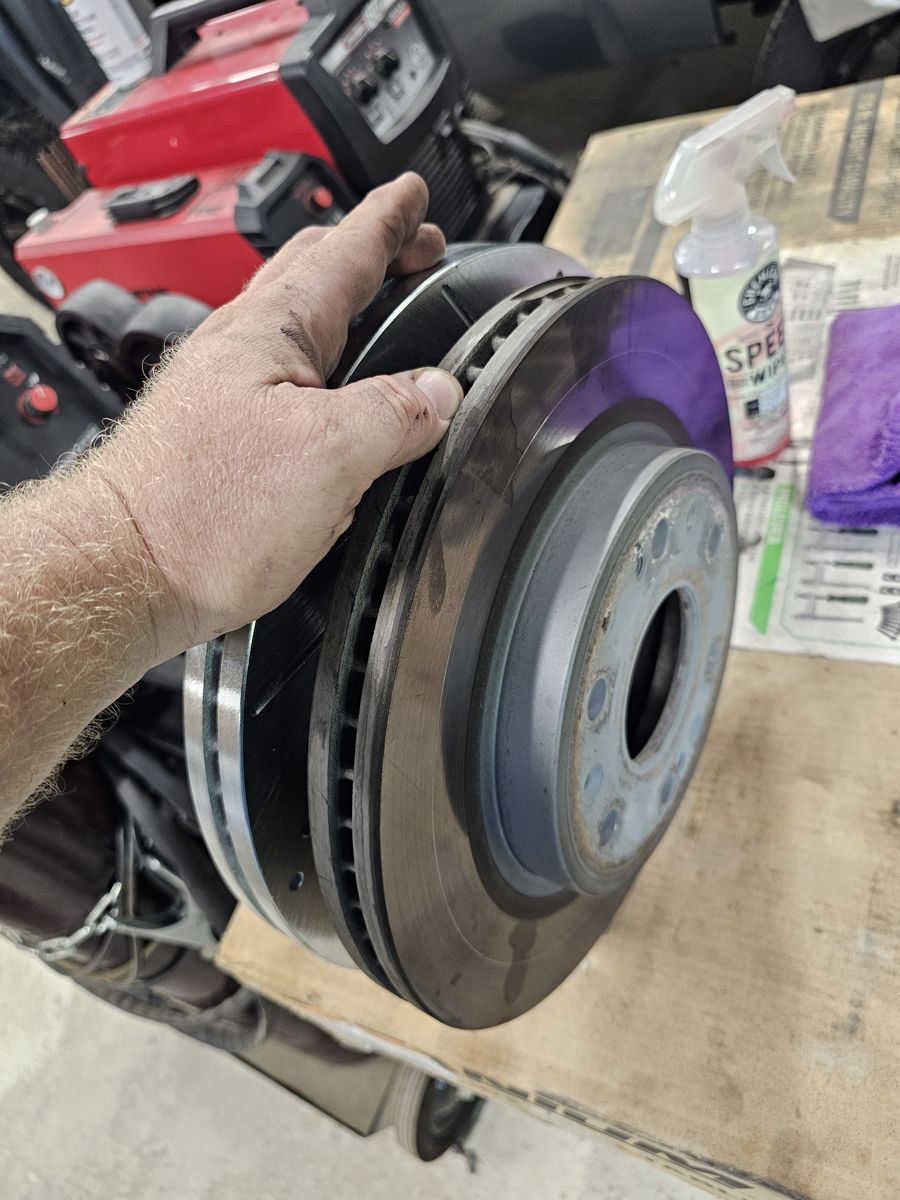

Old vs new rotor: the 2019+ rotor is larger
Old vs new rotor: the 2019+ rotor is larger

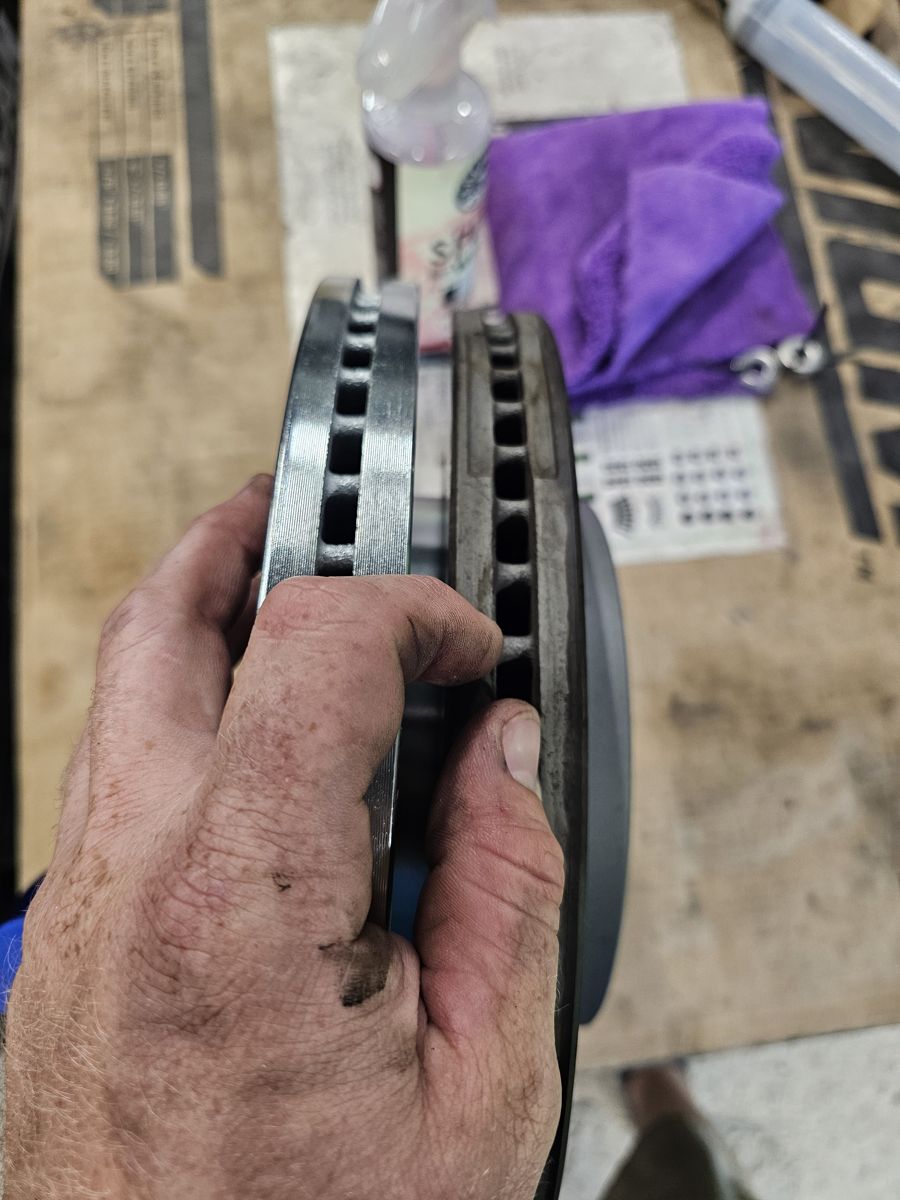

Old vs new rotor thickness
Old vs new rotor thickness
Passenger side: 4-piston caliper and new rotor
Passenger side: 4-piston caliper and new rotor
Caliper with GM pads
Caliper with GM pads
Driver side: caliper and rotor
Driver side: caliper and rotor
How it sounds
Idle with the Texas Speed Chopacabra cam
Engine bay finish
  • All engine wiring harness loom redone with Sonoreboom split braided self-wrap wire loom from Amazon (comes in several diameters). Works and looks great, per the builder.
  • Silicone radiator hoses throughout (builder believes from Glenn's Auto Performance)
  • Lower-pressure, lower-temp fluid lines: Aeroquip AQP socketless hose and AN hose ends (e.g. FBL1512 straight, FBL1532 90°, FCN0620 -6 AN hose). Good for up to 300°F and 250 psi, per the builder. Builder tip: simple and works great; use Aeroquip's matching AQP hose with AQP ends.

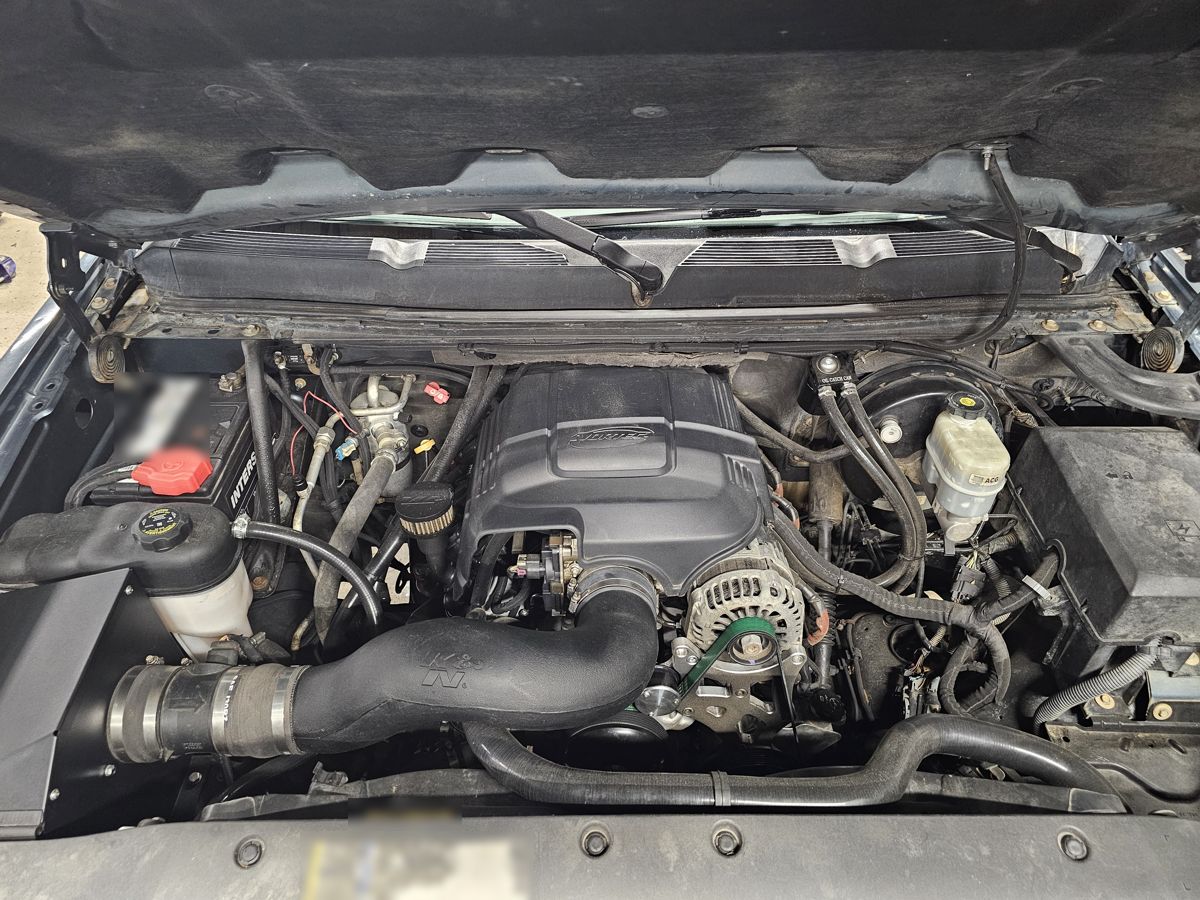

Finished bay with fresh harness loom
Finished bay with fresh harness loom

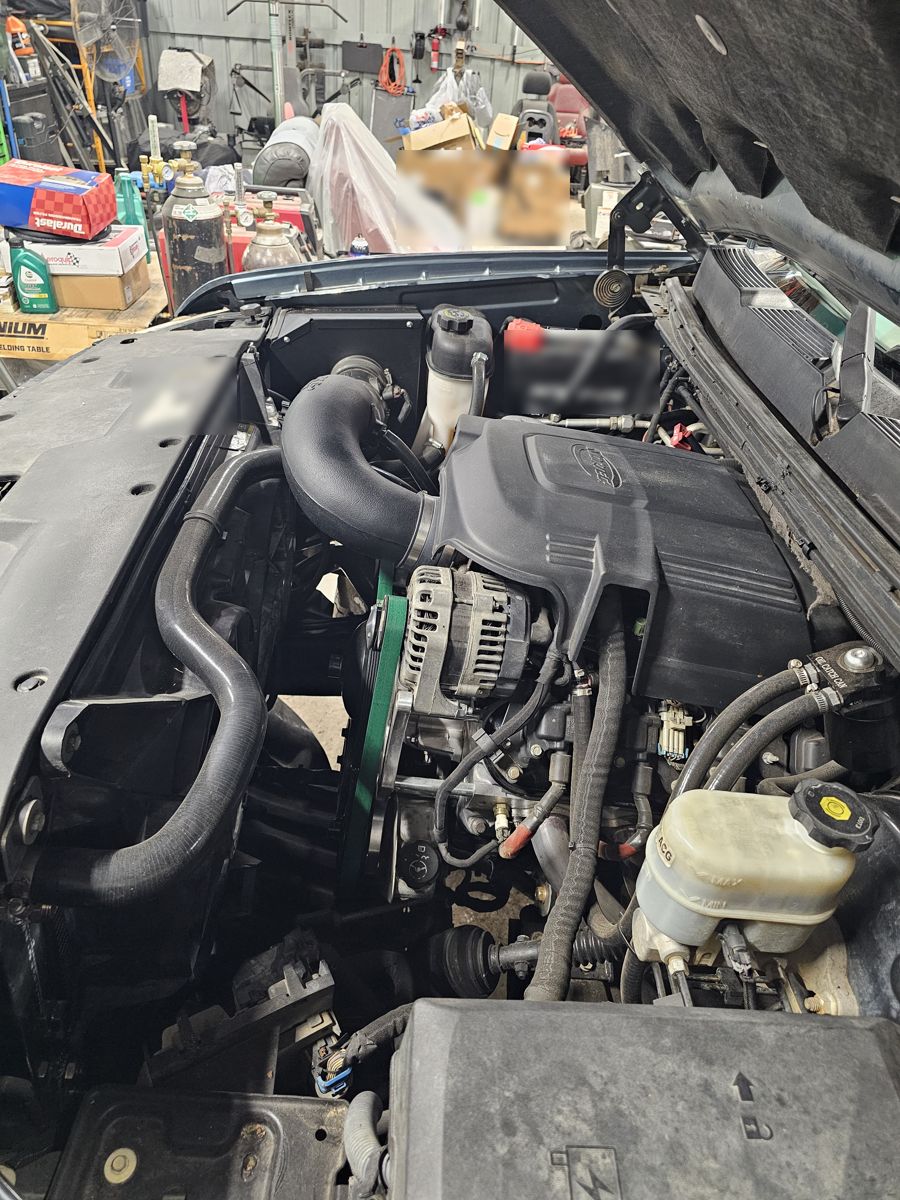

Passenger side: silicone hoses and loom
Passenger side: silicone hoses and loom

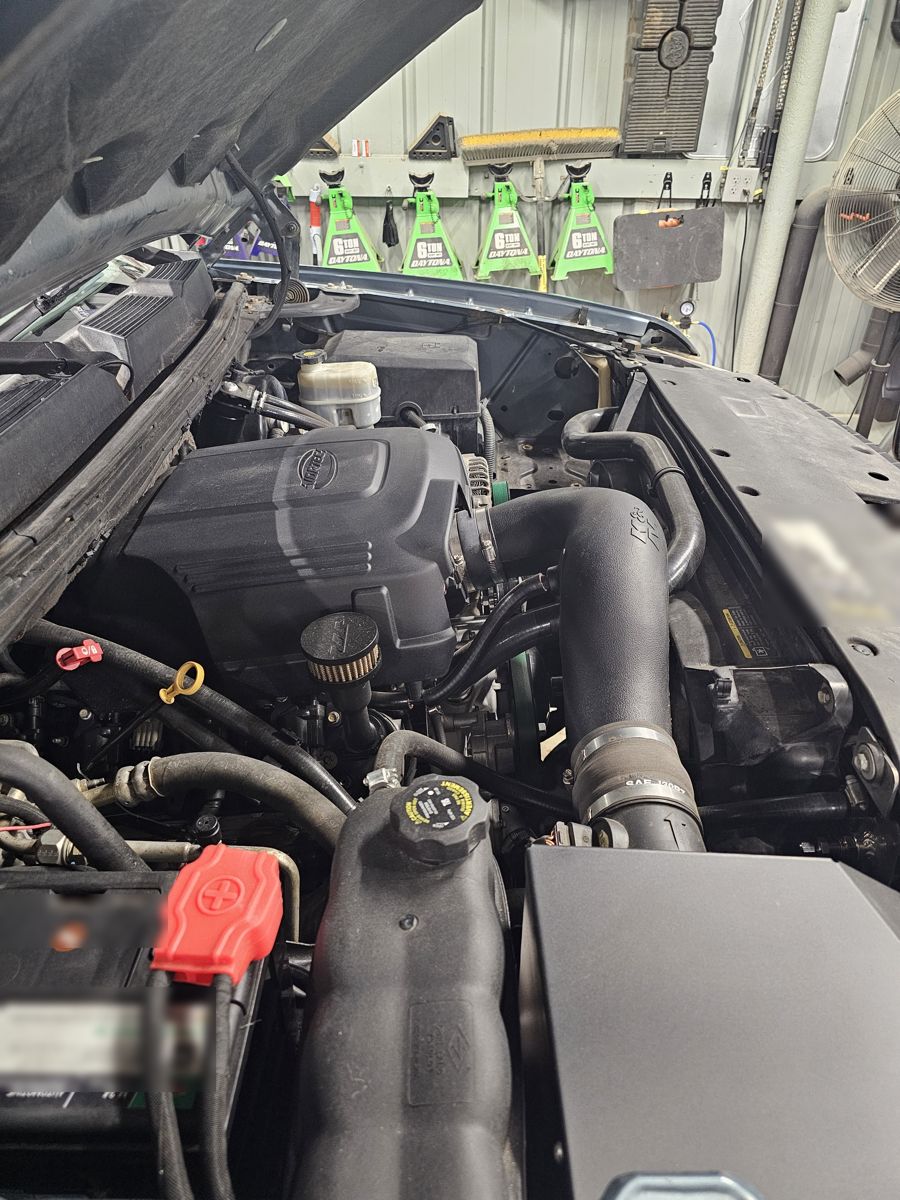

Driver side: intake and silicone upper hose
Driver side: intake and silicone upper hose

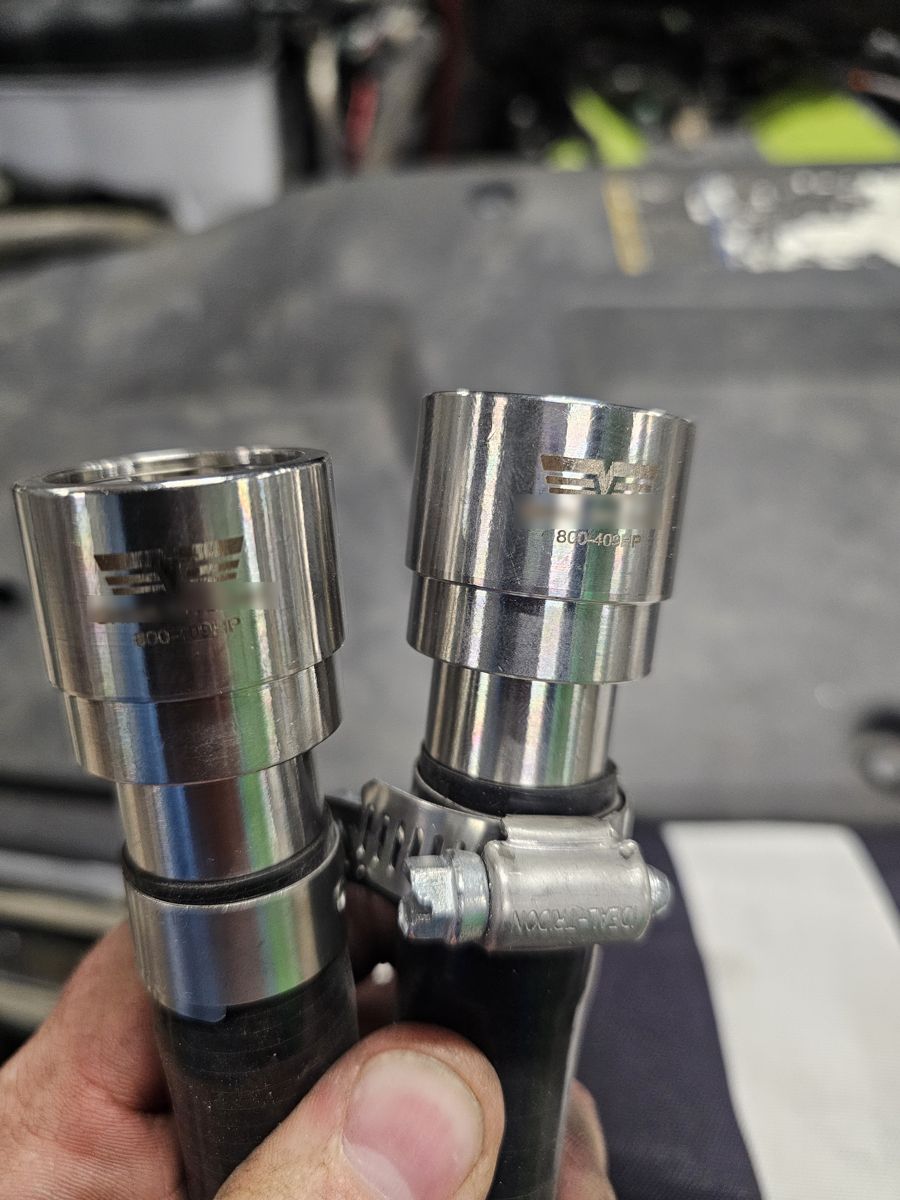

Metal heater core fittings in place of the plastic ones
Metal heater core fittings in place of the plastic ones

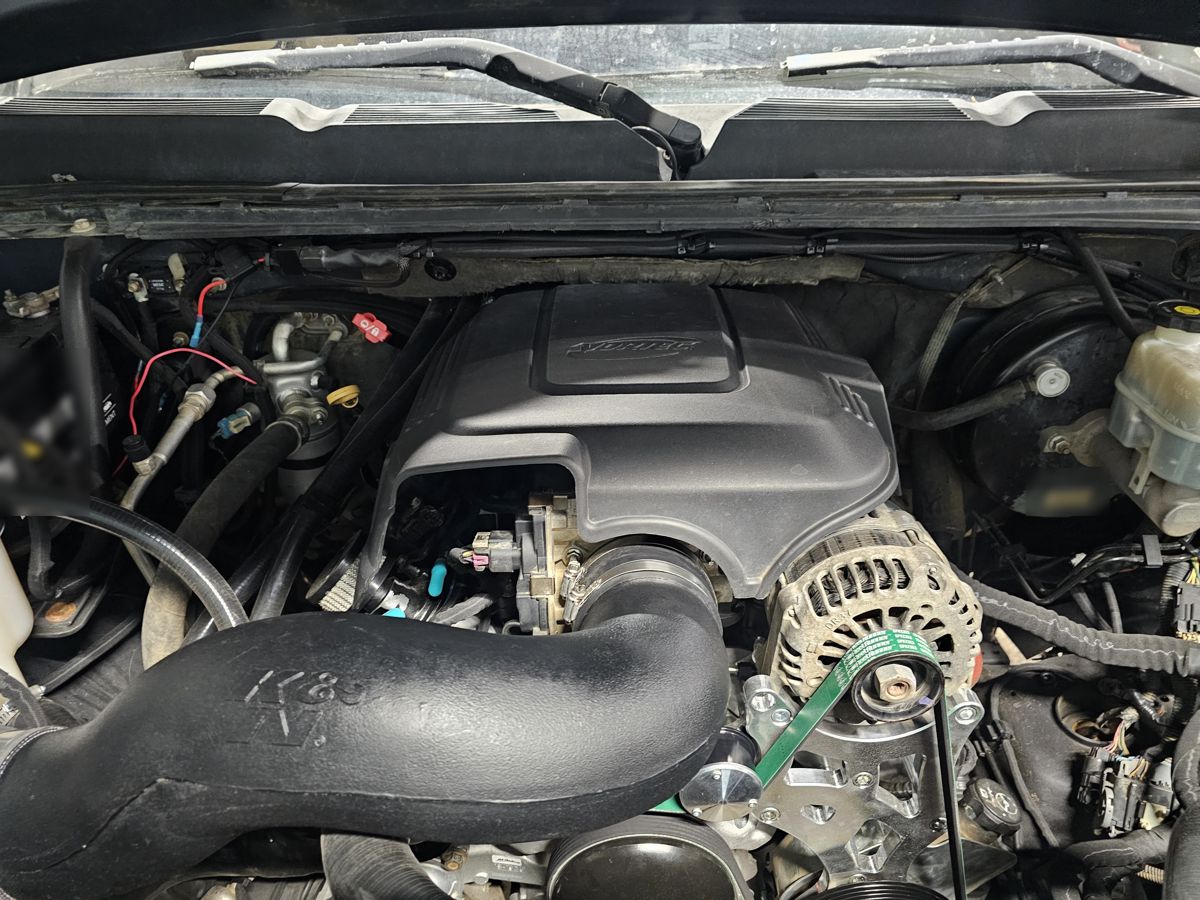

K&N cold air intake
K&N cold air intake
Wheels
  • 4Play 20x10 wheels, -18 offset
  • Builder note: regrets the -18 offset since he plans to lower the truck

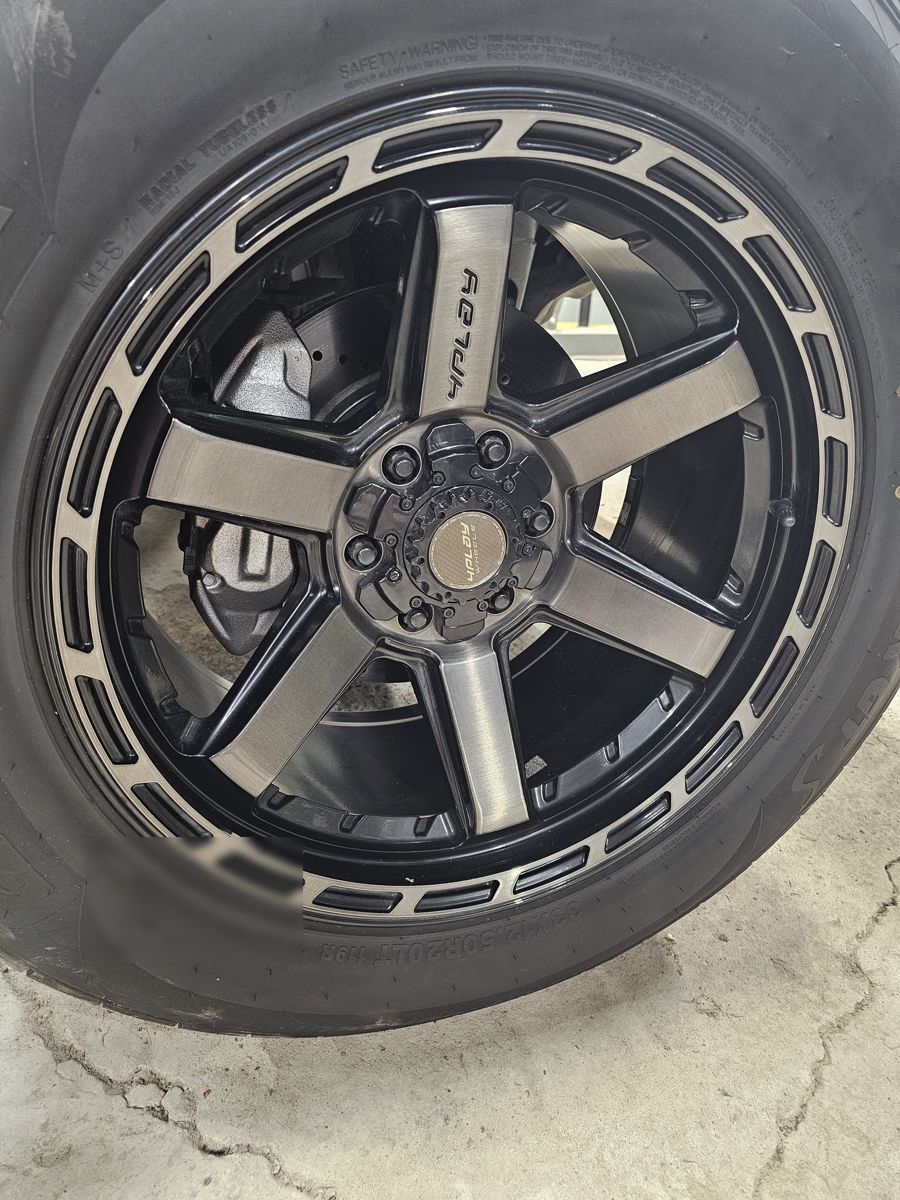

4Play 20x10 with the 4-piston caliper behind it
4Play 20x10 with the 4-piston caliper behind it

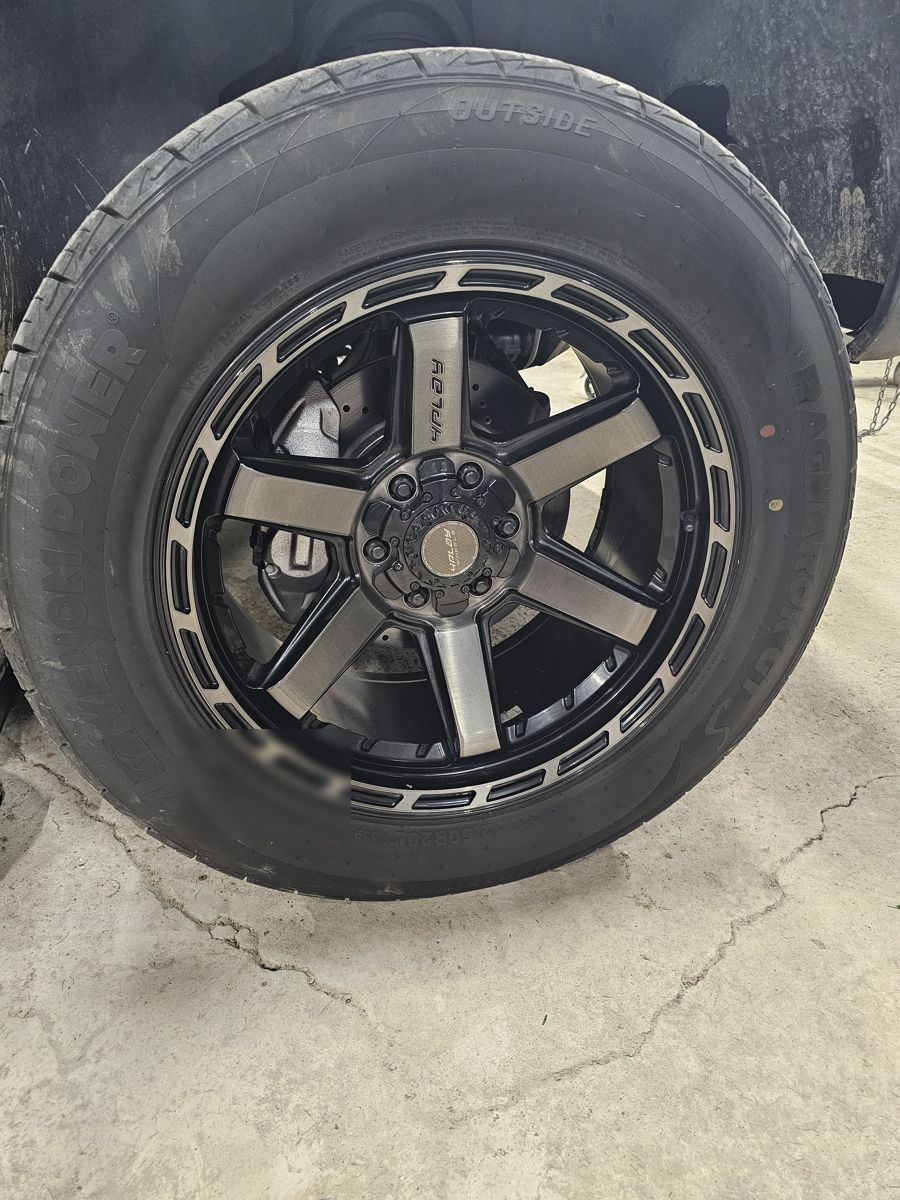

4Play 20x10 wheel and tire
4Play 20x10 wheel and tire
Tuning
  • Tuned remotely with HP Tuners by Matt Sanford, a Nashville, TN-based LS/LT calibrator
FAQ

Straight answers

Is the parts list really free?

Yes. No account, no card. You can put in an email if you want updates for your chassis.

Why are some prices marked "est."?

"Listed" means we saw that price on the vendor's page when it was checked (Oct 2026). "Est." is a rough range. Prices move, so always check the link.

Does it do LT swaps too, or just LS?

Both, on one site. Gen V LT engines (L83, L84, L86, L87, LT1, LT4, L8T) are direct injection with a cam-driven high-pressure fuel pump and an E92-family ECM, so the controller, fuel, mounts and harness are a different swap than a Gen III/IV LS. The planner keeps them on their own path and the Build Sheet flags DFM, wet vs dry sump, and 8L90/10L80 TCM matching.

What about the new Gen 6 engines?

GM has announced the Gen 6 L76 5.7, L78 6.6 and LS6 6.7. They're listed as coming soon. We'll add them once real swap parts and controllers exist.

Will it guarantee fitment?

No. It's a planning sheet built from vendor and tech sources. Confirm fitment with the vendor, especially on pans, headers and steering.

What do I get for $24?

The full Build Sheet for one combo: compatibility flags, harness steps, VATS and tune notes, fuel setup, a first-start checklist, and video slots. It's printable and has a link you can come back to.
